Exploring online research methods in a virtual training environment: Technical guide to producing online questionnaires module

This module was written by Rob Shaw except where stated in section headings or case studies.

For information on copyright and how to cite this module, please refer to the following web pages:

• Copyright statement: http://www.geog.le.ac.uk/orm/site/copyright.htm
• Citation policy: http://www.geog.le.ac.uk/orm/site/citation.htm

---

Contents

1. Aims and learning outcomes
2. Introduction to online questionnaire production: Overview and options
3. Choosing software for online questionnaire production
4. Using software for online questionnaire production
5. Introduction to HTML 1
6. Introduction to HTML 2
7. Introduction to CSS
8. Web forms
9. Introduction to JavaScript
10. Form validation
11. Key design issues
12. Gathering information about participants
13. Server-side processing
14. Frequently-asked questions
15. Glossary
16. Print version
17. Resources

---

Aims and learning outcomes

Aims

1. To provide background information on the range of options available for the production of online questionnaires and the key benefits and drawbacks of each;
2. To provide an introduction to the range of software and services available to assist in the production and implementation of online questionnaires;
3. To provide an introduction to HTML and CSS;
4. To introduce web forms and explore the technology behind the effective design of online questionnaires;
5. To introduce and allow practice in the use of JavaScript for basic form validation, and the gathering and preservation of user information;
6. To provide basic guidelines for the use of server-side technologies for the collection and processing of data;
7. To discuss relevant issues when choosing off-the-shelf software for the creation and administration of online questionnaires, and to provide general guidelines on how such software is used;
8. To describe key terms, definitions and terminology in relation to the technical aspects of online questionnaires;
9. To provide links to additional resources, frequently asked questions and print versions.

Learning outcomes

At the end of this module, you will be able to:

1. Identify appropriate technical options for the implementation of online questionnaires according to the context of research;
2. Identify key issues to bear in mind when choosing off-the-shelf software or services for online questionnaires;
3. Identify the technical features required for your online questionnaire, and select suitable software and/or services to provide for these requirements;
4. Use a range of technologies in the creation of online questionnaires, such as HTML, CSS and JavaScript;
5. Create a web form, test it for consistency, and incorporate effective navigation and a progress bar;
6. Add basic validation and a means of collecting and preserving information about the user;
7. Understand how different server-side processing technologies can be used to collect and process the data from the form and how to go about using these technologies;
8. Use the correct terminology when communicating about online questionnaires;
9. Collect information about sources of help when developing online questionnaires in different contexts.

---

Introduction to online questionnaire production: Overview and options

Introduction

This page aims to offer an overview of the process of creating an online questionnaire and to provide an introduction to some of the key issues that must be considered when deciding on an option for implementing a questionnaire.

It will also focus on the different options available, and provide examples of the technical choices a number of researchers made to facilitate their studies, and their rationales for doing so.

Finally, it will outline some of the key skills required to successfully employ each of the different methods.

Overview of the process of creating an online questionnaire

A typical procedure for implementing an online questionnaire is as follows:

1. Create an HTML document with questions and form elements to collect responses.
2. Ensure that the document is correctly designed and formatted for consistency and accessibility.
3. Add server-side scripts to allow the information to be collected through emailing the results in a useable format or automatically populating a database or text file with them.
4. Add server and/or client side scripting to minimise measurement error and improving the quality of data collection. This may involve:
   • Incorporating validation routines to check that the information submitted is in a suitable format and that no questions or selections have been accidentally missed.
   • Establishing access control to (where needed) increase the chances that only those who are part of the sampling frame take part in the survey.
   • Including routines to obtain information such as whether or not the respondent's machine has been used to submit the information previously, or how long it took to complete the form.
   • Adding a facility to thank the respondent for their participation and assure them that their submission has been successful.
5. Add server and/or client side scripting to improve the respondent's experience of completing the questionnaire and thus to reduce non-response. This may involve:
   • Preserving data entered so that it is not necessary to restart either the survey or a section of the survey if the respondent makes an error or is interrupted.
   • Adding effective skip mechanisms or tailoring subsequent questions in the survey according to particular responses given.
   • Providing a progress bar or similar mechanism to indicate roughly how far through the survey a respondent is.
6. Upload the document to a server to make it available online.
7. Carry out the necessary distribution activities by, for example, emailing members of a sample list and sending follow-up emails according to responses.

A researcher who wishes to carry out each of these stages independently is likely to need a wide range of web design and web-programming skills to do this effectively. Specialist software or institutional systems are also frequently used to automate or simplify the process.

Options for creating online questionnaires

There are three main options available to researchers who wish to implement an online questionnaire. They can either take advantage of institutional systems that may be available, use an 'off-the shelf' solutions to host and/or produce and manage the questionnaire, or use and entirely self-produced questionnaire.

The choices made are likely to be influenced by issues such as the following:

The intended size and scope of the study

• The number of likely respondents;
• The length of time the questionnaire will need to be online for;
• Whether there is a need for more than one questionnaire to be running concurrently;
• Whether there is a need to link data from particular respondents over time;
• Whether the plan is to use the questionnaire in tandem with paper-based or other types of survey;
• If so, whether the facility is required to enter data from paper-based questionnaires into the same database as the online ones, or to use machine-readable paper questionnaires.

The level of resources and technical support available

• Whether a budget is available;
• Whether the researcher is working in an institution which provides technical support or tools for creating online questionnaires;
• Whether there is easy access to a server on which to house web-pages and scripts;
• Whether adequate administrative permissions are available to, for example, create and access a database on the server.

The technological requirements of the questionnaire

• Whether a simple replacement for a paper-based questionnaire is required, or whether there is a need for particular features such as the option to require a response to particular questions, the incorporation of audio and video materials, randomisation of questions, or the inclusion of branching or skip patterns

The distribution requirements

• The extent to which the researcher plans to control access to the questionnaire;
• Whether a particular sample group will be targeted;
• Whether a list of email addresses is available to enable contact with the sample;
• Whether the technological facilities are required to manage the scale of email correspondence by, for example, checking for submission and sending follow-up emails to particular groups.

Other requirements

• Whether particularly personal or sensitive information is to be collected that will need to be kept on a secure server;
• Whether there is a need to securely share access to the data with others;
• Whether there are particular style and layout needs;
• Whether there is a need for particular types of analysis;
• Whether there are any relevant institutional constraints such as the need for the questionnaire to be housed under the URL of the institution or for the questionnaire to meet institutional style guidelines.

The researcher's technical experience

• The level of experience of internet-mediated research and web design expertise;
• Whether the questionnaire has to be developed to a tight timescale, and the amount of time available to the researcher to develop skills such as the following:
  • HTML and CSS to produce and format pages;
  • Basic programming skills to allow freely-available scripts to be adapted and used;
  • More advanced programming skills to allow you to create your own scripts to meet your particular needs

Institutional systems

For researchers working within an institution such as a university, a government department, an NHS trust, or a charitable organisation, technical support may be available which the researcher may be able to use to implement the questionnaire. In some, cases, support may extend to the bespoke conversion of a paper-based questionnaire to a web version.

Examples

1. The Association of American Geographers 'Internationalizing Geography in Higher Education' study

Michael Solem (Educational Affairs Director)

Waverly Ray (Research Assistant)

2. Nicky Shaw (Lecturer in Operations Management, Leeds University Business School)

Where this kind of service is not available, there may also be standard procedures in place for implementing web forms once they have been created by the researcher. This may involve a mailing facility whereby the data is automatically formatted and delivered by email when the form is submitted. It may also involve a facility allowing the data to be downloaded in an appropriate format for importing into a statistical analysis, database or spreadsheet package.

Example

Tim Vorley (Department of Geography, University of Leicester)

In some cases, the institution may have purchased a site licence for an off-the shelf survey creation and administration package which may be suitable for the purposes of the research project.

In educational institutions in particular, site-licences may also have been purchased for assessment software which may provide the facilities needed for the questionnaire. These are generally designed to allow students to answer a range of questions, such as multiple-choice questions or short text entry questions, online and submit their answers. The tutor can upload the questions and perhaps set passwords for each individual participant. They can then download answers and see reports on the answers of individuals or groups. Because these are the same functions as those of basic survey creation software, this can be a straightforward (and free) way of implementing the questionnaire if the software is sophisticated enough for the needs of the study (e.g. by offering an adequate range of different question types). However, it should be remembered that these tools may only be available to participants within the institution.

The procedures for using these systems are often available on the institution intranet or through contacting computer services.

Using 'off the shelf' solutions

Software and services

A wide range of software is available that is designed to allow easy creation and administration of online questionnaires. There is a great deal of variety in the features available, and also the cost. There are a number of free open source examples which allow users to create basic forms with little knowledge of web programming. A variety of commercial software is also available, at a wide range of prices. Many of these offer different features according to the prices paid and it is common for them to offer free trials which are limited either in the number of respondents who can be surveyed or in the length of time the survey can be made available. The majority offer hosting services for those who do not have suitable access to a server, or who prefer to avoid installing and maintaining software.

The major advantage of these facilities is that they can reduce the need for web-design and programming skills. The majority of them offer a form-style interface into which the researcher adds questions and decides the type of web-form element they would like to use for answer. They also typically allow a range of formatting options and choices for validation, such as whether or not a response to particular questions will be required before submission. They can also provide server space if required and can allow a secure means of saving and retrieving data in a format such as comma-separated values (CSVs) suitable for easy input into common spreadsheet and statistical analysis applications. Other examples offer automatic analysis of data or facilities to easily cross-tabulate or filter results.

However, in some cases, they can also serve to limit the options available to researchers who may have particular design, validation or analysis needs not easily catered for by 'standard' software. Some basic knowledge of web design and programming can serve the researcher who wishes to 'tweak' the content or look of the surveys produced by these programs well.

See the 'Choosing software' and 'Using software' sections of this guide for further information, including the following:

• Examples of the different types of software available
• An overview of the different features and levels of sophistication commonly offered by providers.
• Guidelines for choosing software and the opportunity to develop a personalised checklist for use when comparing different options.
• A general outline on how to use the software.

Consultancy

There are many organisations that offer consultancy services for online questionnaire creation and administration. These range from advice and assistance with particular aspects of the process, to complete design, hosting, management and analysis services. Examples of these include those provided by academic research institutes such as the Bristol Online Survey services offered by the University of Bristol's Institute for Learning and Research Technology (http://www.survey.bris.ac.uk), and those provided by commercial companies such as the survey shop, the research services arm of the snap survey software company (http://www.snapsurveys.com/ surveyshop/servicesweb.shtml). Of commercial market research options, Evans and Mathur (2004)'s examination of the involvement in online surveys of the largest US-based and global market research firms provides an extensive list of the services offered as of late 2004.

Self-produced questionnaires

There are a number of cases in which a researcher may wish to carry out the whole process of creating and administering an online questionnaire:

• The researcher may have access to a suitable server on which to house a self-produced questionnaire, and have the web design or programming skills required to do this or be keen to control all aspects of the process.
• Technical support or institutional systems may not be available or may not be robust enough to provide an acceptable solution. (The use of an 'off-the-shelf' software solution may be more efficient in many cases).
• Where the technical requirements of the planned questionnaire are 'standard', it is frequently possible to obtain a wide range of freely available server and client-side scripts that can be used to set up the survey. With a little effort, a researcher with basic skills is likely to be able to acquire the knowledge to do this successfully and to customise where necessary. (Again, the use of 'off-the-shelf' software may be more appropriate).
• Where the nature of the planned survey is particularly complex and involves features that are not likely to be easily available without bespoke programming.

Example

Martin Bruder (School of Psychology, University of Cardiff)

Technical knowledge and skills required

Table 1. The importance of different sets of knowledge/skills when different methods are used to create an online questionnaire.

Knowledge/skills	Institutional systems	Self-produced	'Off the shelf' solutions
Knowledge of how to use questionnaire software	N/A	N/A	HIGH
Basic knowledge of HTML (and possibly CSS)	HIGH	HIGH	MEDIUM/LOW
Design issues	HIGH	HIGH	MEDIUM
Form elements	HIGH	HIGH	MEDIUM/LOW
Validation routines	HIGH	HIGH	LOW
Server issues	MEDIUM/LOW	HIGH	MEDIUM/LOW
Server-side processing	LOW	HIGH	LOW

Table 2: A list of the technical knowledge and skills required to produce an online questionnaire with the reasons why each skill is required.

Knowledge/skills	Reason
Understanding of the different facilities provided by different questionnaire software and hosting providers. Familiarity with the interface of chosen software and procedures for creating and managing the questionnaire.	There are a great many 'off-the-shelf' for online questionnaire software solutions available and if a researcher decides to take this route, time may be needed to become familiar with the options and facilities available. Once a choice is made, it is necessary to become familiar with how the software is used. The complexity varies greatly and options with relatively limited functionalities are often very quick and easy to learn. However, examples that offer advanced functionalities may also be relatively difficult to learn to use effectively.
Basic knowledge of HTML (and possibly CSS)	It will be necessary to create and appropriately format HTML pages and web forms. This can be done with a simple text editor or with 'What you see is what you get' editors such as FrontPage or dreamweaver. These can make the process of creating HTML pages more efficient, but a basic knowledge of HTML and CSS is very useful in using these packages effectively. Where form-creation software is used, knowledge of HTML and CSS will allow you to customise the look and feel of the questionnaire after it has been produced. Even with well-designed software, problems can emerge when HTML is automatically produced, and this knowledge will allow you to deal with this as effectively as possible by 'going to the source' if necessary.
Design issues	An awareness of design issues related to general web-design (use of colour, optimisation of graphics, design for a range of screen resolutions and browser types, accessibility issues etc) and those specifically connected to online survey design (progress bars, tables for matrices etc) will be needed to make the survey more effective and reduce measurement error. Where form-creation software is used, this allows easier customisation of templates and response to problems that the process of automatic HTML production may create.
Form elements	The use of common form elements will be required to collect the data for processing. Where software is used to automatically insert forms and elements, customisation will be easier.
Validation routines	Client-side validation routines using JavaScript can be used to check the data that has been entered before it is allowed to be submitted. If this is used effectively it can reduce problems of invalid data and multiple submission.
Server issues	The questionnaire will need to be placed on a suitable server connected to server-side processing facilities. Knowledge of server technology and security issues will be required to do this independently and, where support is available, a sound understanding will be helpful in getting this done effectively.
Server-side processing	The use of suitable server-side scripts will be necessary to allow the data to be processed and delivered or automatically inserted into a database. It will also be required to provide the respondent with a suitable acknowledgement that their submission has been successful.



---

Choosing software for online questionnaire production

Introduction

Online questionnaire software is designed to make the process of producing the HTML and necessary scripts possible for researchers with little or no technical knowledge. It generally provides a form-style interface to allow the questionnaire to be built up through inputting the questions and response types, and selecting pre-programmed features such as required responses, skip patterns, randomised ordering of choices, and resubmission checks.

There is a huge range of options available. At the time of writing, the WebSM searchable database of online questionnaire software and services (http://www.websm.org/content.php?p1=82&p2=272&p3=1086&id=1086) has 408 entries categorized according the following:

1. Type (software or service)
2. Code availability of software (open or closed source)
3. Charges
4. Language
5. Country where offices are located

The Association for Survey Computing searchable software register of software also lists 79 examples of software that can generate online questionnaires. A simple Google search reveals many more examples of online questionnaire software with a vast range of features and prices.

This page will offer examples of the different types of software available and consider the different features and levels of sophistication commonly offered. It will also explore the factors involved in making a choice of software, allowing you to develop a checklist for use when comparing different options.

NB. Any references to prices or features are correct at the time of writing, but should be seen only as a snapshot of what is on offer in April 2005. References to particular software providers are given only as examples of the options available and should not be seen as an endorsement of any particular products or services, nor as a guarantee of quality.

Software plus hosting

For researchers without suitable access to a server, or for those who prefer to avoid installing and maintaining software, a wide range of hosting services are available. In the majority of cases, the whole process of producing and implementing the questionnaire is carried out online using a form-based interface. Many companies that offer 'software only' options also tend to have hosting facilities which registered users can take advantage of.

There are a great many companies offering services targeted at all levels of users from those offering design, hosting and analysis facilities for individual researchers for free, to those offering solutions to multinational companies for thousands of pounds. Many offer a variety of products targeted at different users with special rates for small-scale individual use. Others offer educational rates or even free services for researchers who are prepared to fulfil certain conditions such as having a link to the company on the institution website, and being prepared to contribute their survey questions to libraries of question types for reuse.

If the researcher decides that this type of service is suitable for his or her study, a number of questions must be considered when choosing a service. The aim should be to find an appropriate balance between cost and features required.

Cost

The cost of the services is often dependent on the number of respondents, questions and or surveys. Most charge a fixed monthly or annual fee, often setting limits on the number of completed surveys and charging additional fees for each survey beyond this maximum.

Many offer different levels of service, at different prices, usually with names such as 'basic edition', 'standard edition' or 'professional edition'. This generally involves differences in the maximum number of surveys allowed and differences in the levels of technical support offered. It may also involve additional features such as more advanced analysis and reporting tools, and more sophisticated question types and questionnaire options.

Given the competitiveness of the market, the majority of the services offer clear pricing information which can be linked directly from the home page. This tends to allow relatively easy comparison of different providers.

Available features

Many of the software company websites offer product demonstrations, tables of features, example surveys, and/or the creation of free demonstration surveys to 'sell their wares'. This makes it relatively easy to check the features that are available, but can also quickly lead to information overload.

A useful example survey which includes comments on the features illustrated by particular questions can be found on the demo pages of the SelectSurveyASP service at http://www.classapps.com /SelectSurveyASPDemo.asp (Note that this software does not offer a hosting service).

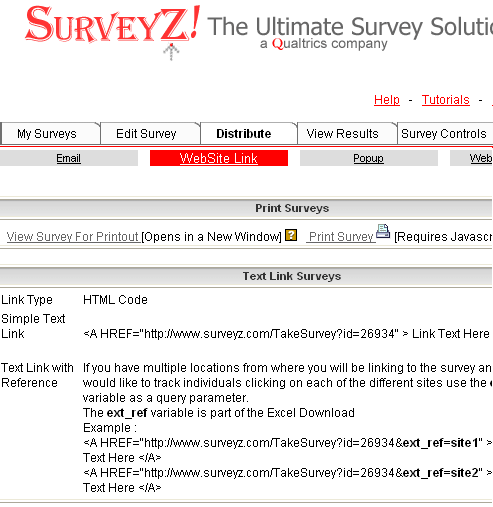

Surveyz is one of many options that offer a fully functional trial of their software and hosting service which allows the user to quickly get a feel for the functionality and options available. Registration is required to activate this trial and the trial is restricted to a one-month period, one questionnaire active at any one time, and a total of 25 responses. http://www.surveyz.com/

It is a good idea to create a checklist of the features that you are likely to require. This can then be compared to the features offered by different providers. It can be particularly useful in enabling a minimum level to be established where a provider offers increasing levels of service at different prices.

The 'checklist questions' below will guide you through the process of developing such a checklist according to the needs of your study.

Examples of services available

The following examples are chosen as being representative of some of the different types of services available. In each case, a range of comparable options may be available.

Service	Comment
Bristol Online Surveys	Targeted at institutions requiring the option to have a number of different surveys and survey administrators. Highly customisable to the style needs of institutions including an option to run surveys on their server with an address that appears to be that of the institution.
Educara Survey	An open source tool which offers hosting for an annual fee. The price rises according to the type of use, with students paying the least, and commercial organisations the most.

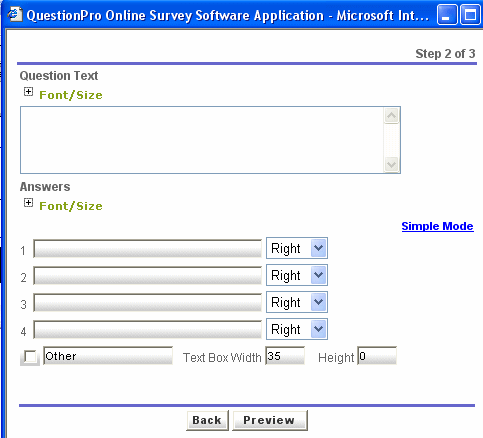

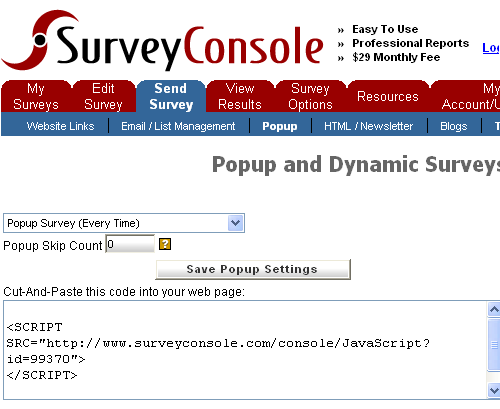

SurveyConsole / QuestionPro	Both are divisions of the surveyanalytics company and they use the same software and interface, but with different pricing. May offer sponsored use for academic or not-for-profit projects if certain conditions are met. Also offer a range of free resources such as articles and question templates.

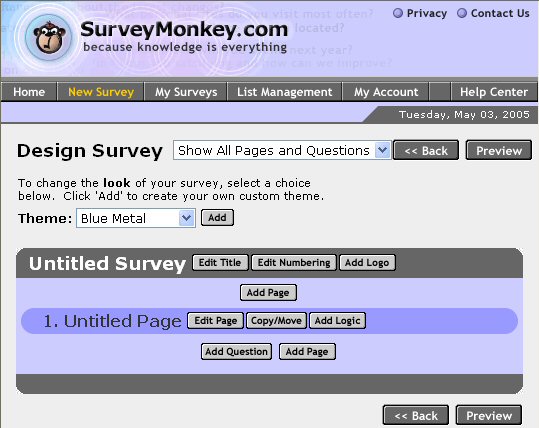

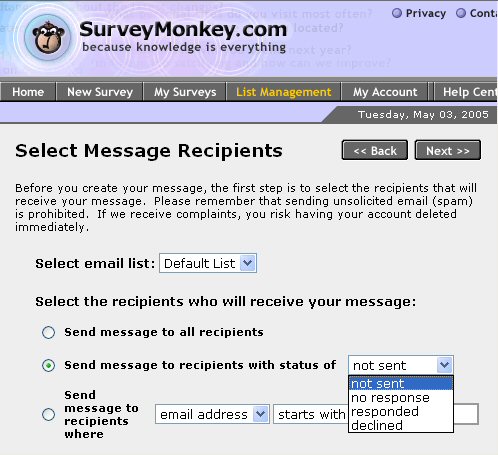

surveymonkey	Compares well with many of the other available services in terms of features, but is one of the cheapest commercial options.
surveywriter	Relatively expensive, but unusual in that charges are not made per period of use, but per completed survey and email invitation with a minimum of 200.
Surveyz!	A range of relatively sophisticated features. Targeted at individual researchers or at institutions. Offers academic pricing and free use for academic projects if certain conditions are met. Also has a range of resources such as articles on online questionnaires and copyable templates of questionnaires and questions.
websurveyor	Relatively expensive, but with a wide range of features. Offers both hosting and software only solutions.
zoomerang	Offers pricing for not-for-profit and educational institutions. Also offers a range of research services such as questionnaire administration, panel services and translation.

Software only

The use of software only solutions depends on the researcher having access to a suitable server with adequate administration permission to, for example, create and access a database. It also requires the software to be installed and configured correctly and for any possible problems that might emerge to be dealt with. Where these requirements can be met, this type of software can have a number of advantages. These may potentially include:

• Savings of cost, especially when used in the longer-term
• Increased control over data collection and storage
• More opportunities to work offline if required

Some examples of this type are also primarily designed as survey analysis software which can offer generally more sophisticated analysis tools where required.

Open source options

Locating software

Two of the major sources of information on open source software are SourceForge.net at http://sourceforge.net which is a repository of open source projects, and freshmeat.net at http://freshmeat.net/ which is a listing of new software releases.

A simple search for 'survey' reveals a range of projects providing software for online questionnaire creation. These range from simple survey software with limited question types and functionality, to options with features which compare very well with the majority of commercial options.

Choosing options

When choosing whether or not to use an open source solution, it is important to consider the following potential problems:

1. They do not tend to offer hosting, and installation and configuration can be complex (though this may be less problematic than with commercial software-only alternatives).
2. The user-interface for the software can be more complex in some cases.
3. Documentation such as user-guides may not be as extensive.
4. Where problems are encountered, suitable technical support may not be guaranteed.

Making a successful choice depends on identifying whether or not the software provides the features required. The 'checklist questions' below will guide you through the process of developing a checklist according to the needs of your study which can be used when comparing software. In many cases the information on the features available is less extensive than commercial options, though many of the more established options offer demonstrations, examples and feature lists.

It is also necessary to ensure that the software can be installed and configured on a suitable server, and that someone with the necessary skills is available to maintain it successfully and deal with problems. An indication of what is typically involved in this is given by the manual for phpSurveyor (Now Lime Survey at http://docs.limesurvey.org/tiki-index.php. Many of the other open source options also have similar installation guides which can be accessed through the project website or downloaded with the software.

Finally, it is important to check that the software has an adequate level of reliability. The JISC open source software advisory service, OSS Watch, at http://www.oss-watch.ac.uk/ offers useful guidance on criteria for choosing reliable software. Some key factors identified are:

1. Reputation - Have you spoken to people with experience of a particular product?
2. Ongoing effort - Is there clear evidence of active development of the software?
3. Community support - Is there an active community of users on the project mailing list ready to answer questions from users experiencing problems?
4. Version - Has the latest stable version been available for some time and is there evidence that problems have been identified and fixed?
5. Documentation - Is this sufficient to allow you to decide whether or not the software is sufficiently well-developed for your purposes?

See the page of 'Top Tips For Selecting Open Source Software' at http://www.oss-watch.ac.uk/resources/tips.xml for further details.

Examples

The following are some of the main examples of open source software for online questionnaires (generally the more established and/or sophisticated options). A range of other options may be available.

Software	Comment
LE Survey	Designed as a tool for running questionnaires as part of longitudinal studies. Allows respondents' responses to be matched to responses to previous questionnaires while maintaining confidentiality. In early stages of development at the time of writing.
phpESP	Well-established software with a working demo available allowing the features and user-interface to be tested.
LimeSurvey	A range of relatively sophisticated features. Well-established with useful documentation. Working demos are available allowing the features and user-interface to be tested. Offers low cost hosted services.
Mod_Survey	Well-established with sophisticated features such as dynamic content generation depending on previous answers. Requires the user to learn to use XML syntax particular to the software
VTSurvey	Easy to use and particularly useful for straightforward questionnaires as only the four main types of questions are supported (Multiple choice with radio buttons and Check boxes, and short and long text entry boxes).

Commercial options

Choosing options

Documentation and technical support for commercial options tends to be more extensive than that offered by open-source software, but in many cases there are charges for a support package. They frequently offer powerful statistical analysis, and many can be used to develop and analyse questionnaires off-line. In the majority of cases, hosting services are offered for an extra cost.

A number of the commercial options were originally designed as software to aid in the production and analysis of questionnaires in paper-based and other modes, often with online questionnaire functions added later and offered at extra cost. Others offer online questionnaire functions as part of a set of 'add-ons' allowing, for example, computer-assisted telephone interviewing (CATI) or surveys for Personal Digital Assistants (PDAs) or other mobile computing technologies. This can make them a particularly effective choice when there is a need to integrate mixed-mode surveys.

It is useful to list the features required for your study which can be used when comparing software. The 'checklist questions' below will guide you through the process of doing this, providing you with some of the main questions to consider.

Examples

The following are some examples of commercial software for online questionnaires. A range of other options are available.

Software	Comment
Questionmark Perception	An educational assessment tool which offers many of the key features needed to create basic online questionnaires and has some of the more advanced features such as randomisation of questions and conditional branching. Potentially useful option if the software is available through the researcher's institution.
SelectSurveyASP	Relatively inexpensive. Offers 'classic' and 'advanced' versions with different levels of features at different prices. Has a working online demo and a useful example survey which includes comments on the features illustrated by particular questions. Offers a free installation service and free technical support.
Snap Surveys	Extensive options for mixed-mode surveys, offering a 'core product', Snap Professional with add-ons for questionnaires via internet and PDAs, and to allow scanning and multiple data entry. Expensive example of 'high-end' options.
StatPac	The online questionnaire software does not include analysis tools, but it can be purchased alongside the statistics tools offered. Has basic statistical tools or an advanced version allowing multivariate statistical techniques. Technical support and updates are available free for three months, but are chargeable via annual support/maintenance agreements thereafter. A fully-functional version of the software can be downloaded and used for free, limited to 35 respondents for each survey. Download includes tutorials and extensive user guide.

Checklist questions

The following questions can be used as a checklist for comparing different products and services after deciding which of them apply to the questionnaire:

General

Does the service allow you to collect the maximum number of completed questionnaires you expect without extra charges?

Does it allow the maximum number of questions you need to include in your questionnaire?

Will you be within your budget if you use the service to keep the questionnaire open for the time you need?

Do you need only one questionnaire or do you need multiple questionnaires to be online at the same time?

Do you need a one-page questionnaire or one that spans multiple pages?

Do you expect all the participants to complete the questionnaire online or do you need to be able to use the online questionnaire in tandem with paper-based versions? Can paper-based versions of the questionnaire be easily produced?

Does the interface seem to be easy enough to understand and use in the time available?

Is online and/or telephone technical support on the use of the service available if required?

Question creation

Does it produce all the question types you would like to include?

Are there any limits to the number of choices for particular question types? Is this a problem for your questionnaire?

Can questionnaires be imported from word-processor or text files?

Is the layout and positioning of questions and answers acceptable? Can this be controlled?

Can you save the questions you have input and continue creating the questionnaire at a later date?

Is there the option of requiring a response to certain questions?

Can you randomise the order of possible responses?

Design and layout

Does it produce pages that have no major differences when viewed in different browsers or with different screen resolutions?

Is there a choice of templates? Are they suitable? Are the layout and colour schemes acceptable?

Do any templates allow easy customisation?

Is it possible to add extra design features to individual pages, such as images, extra text or line breaks?

Can you easily add features such as images, headers or footers to all pages?

Questionnaire settings

Is the statistical information offered by the software extensive enough for your needs? (e.g. can it record IP addresses of participants, approximate time taken, response rates for each question etc.)

Can the number of questions per page be easily controlled?

Can skip patterns be established so that the participant is directed to alternative questions depending on responses to particular questions?

Can the navigation be customised? Can the text on buttons be customised and is there a choice over whether or not a respondent can navigate back to completed sections?

Can multimedia stimuli such as video and animation be included?

Does it allow randomisation of the order of questions or responses within questions?

Can cookies be added to the participant's computer to prevent multiple submission from the same machine?

Can this use of cookies be controlled to allow particular machines to make multiple submissions (e.g. where a suite of computers may be used by different participants, or for data entry from paper-based versions)?

Does it allow for the inclusion and placement of a progress bar?

Implementation and security

Are the welcome pages and post-submission messages fully customisable?

Can you link to a webpage of your choice once the questionnaire has been submitted?

Can you enter a closing date for the questionnaire and add a customisable message to those who attempt to access it once closed?

Does it offer the access control you need, such as the ability to set passwords or limit access to those from particular IP addresses?

Are you satisfied by any security statements made?

Is there an option to encrypt the information on a secure server?

Distribution

Is there an email management list?

Can you insert individual email addresses?

Can multiple email addresses be imported?

Can you select the whole list or a subgroup of the list to send a message to?

Can you send personalised emails by merging personal information into a standard email?

Can the link to your questionnaire be easily incorporated into emails?

Can you send your entire questionnaire as an email?

Can you easily incorporate a link to the questionnaire into a website?

Can you record which of several links was selected by the participant?

Can a pop-up version of the questionnaire or of a link to the questionnaire be activated when a user enters the site?

Results and analysis

Can results be received by email alongside saving them to the database?

Does it allow the data to be downloaded in a format that can be easily imported into the statistical analysis package you plan to use?

Are there any limits to the number of times that you can download your data? Is this a problem for your study?

Can you choose whether you would like to include all data in the download, or only data from a particular period?

Can any extra information you need be easily included in the data files (e.g. IP addresses and start and completion times)?

Is the statistical analysis and reporting offered by the software sophisticated enough for your needs?

Can you view individual results and overall results on an on-going basis?

Does it offer the option to delete or edit results?

Are there the viewing options you require (e.g. Can you view the results as percentages or in the form of a particular type of chart)?

Can you easily access the statistical information you need from within the software?

Does it offer filtering options so that results can be analysed according to the response to particular questions (e.g. focusing on gender or age)?

Is cross-tabulation of results possible, so that correlations between particular questions can be analysed?



---

Using software for online questionnaire production

The interface and features of different online questionnaire software may vary. However, a typical procedure for creating and administering a questionnaire is shown below. At each stage, screenshots taken from different examples of software are provided to give an indication of how they tend to be used.

Create the questionnaire

1. Create a new page by adding a title, selecting formatting options and adding any logos required. (Alternatively, copy a previous survey to amend or choose a template from a list of options).


   The survey editing interface of the SurveyMonkey.com service (http://www.surveymonkey.com/)

2. Add a question by selecting from a list of question types.

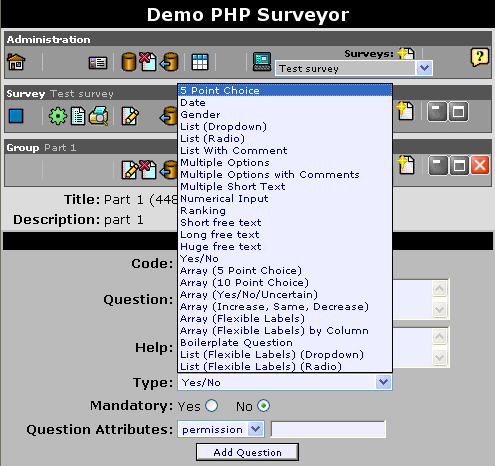

   The phpSurveyor (Now Lime Survey) question creation interface (http://www.limesurvey.org/)

3. Input the question and responses. Select options such as whether an answer is required, whether the order of responses should be randomised etc.


   The questionPro.com question editing interface (http://www.questionpro.com/)
4. Add any images, extra text or line breaks as required.
5. Add further questions on the same page or add further pages.

Edit the questionnaire settings

Many software plus hosting services offer a number of questionnaire settings options which allow the user to incorporate features such as the following:

1. Visual appearance or layout options such as customised headers, footers and images.
2. The inclusion of skip patterns if required, so that the participant is directed to alternative questions depending on responses to particular questions.
3. Customisation of button text, and choice over whether or not a respondent is given the option to navigate back to completed sections
4. Inclusion of multimedia stimuli.
5. Randomisation of the order of questions or responses within questions.
6. The addition of cookies to the participant's computer to prevent multiple submission from the same machine.
7. The option to automatically link to a particular web page on completion of the questionnaire, or to add a completion message.
8. The ability to enter a closing date for the questionnaire and to add a customisable message to those who attempt to access the closed survey.
9. The option of emailing the results to the researcher alongside saving them to the database.
10. Password protection for the survey.
11. The inclusion and placement of a progress bar.

The following is a screenshot showing some of the options provided by 'ServeyZ!'

Select the distribution options

Depending on your method of recruitment, many of the services allow you to easily choose and implement distribution options.

Email:

1. Insert or import the email addresses of your sample group.
2. Select the whole list or a subgroup of the list to send a message to.


   The email management interface of the SurveyMonkey.com service (http://www.surveymonkey.com/)
3. Add the message, incorporating the link to your questionnaire and, where available, include fields to allow you to personalise the emails by merging individual information into a standard email.

Other options:

1. Copy the link to the questionnaire into a website (perhaps with the added functionality of recording which of several links was selected by the participant).


   The website link facility available at Surveyz.com (http://www.surveyz.com/)
2. Alternatively, copy the necessary HTML and code into your website to activate a pop-up version of the questionnaire when a user enters the site.


   The popup survey facility available at SurveyConsole.com (http://www.surveyconsole.com/)

Collect and analyse the results

Many software plus hosting services offer the opportunity to download results or to analyse results online through the package.

Downloading results

1. Select from options allowing you to choose the type of data file to download (e.g. 'Comma-separated values' files allowing easy import into packages such as Microsoft Excel, HTML files, or SPSS Syntax files)
2. Choose whether you would like to include all data in the download, or only data from a particular period.
3. Decide on the format you would like to download the data in (e.g. whether all the data from an individual use should appear on one row, or whether multiple selections should appear on their own rows).
4. Select the extra information you would like to include in the data files (e.g. IP addresses and start and completion times).

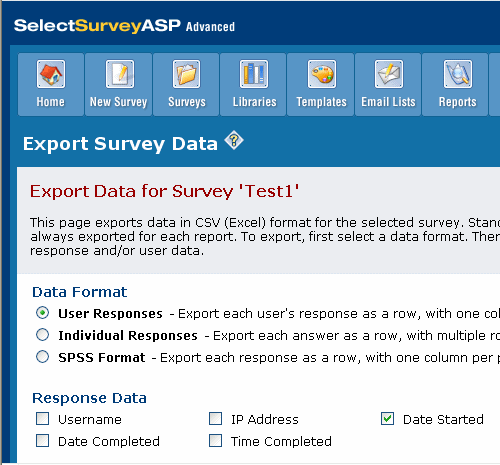

   Extract from the SelectSurveyASP data export page (http://www.classapps.com/)
5. Press the export or download button and save the file to a suitable location.
6. Open the file in your statistical analysis package.

Analysing results

Many service providers offer analysis facilities such as the following:

1. The ability to view individual results and overall results on an on-going basis.
2. Different viewing options (e.g. as percentages or in the form of various charts).
3. Basic statistics such as mean and standard deviation.
4. The chance to delete or edit results.
5. Cross-tabulation of results so that correlations between particular questions can be seen side-by-side and analysed.
6. Filtering options so that results can be analysed according to the response to particular questions (e.g. focusing on gender or age).

The following is a screenshot showing some of the options provided by 'ServeyZ!'

Software designed primarily for statistical analysis, but with online questionnaire capabilities also tends to offer more options such as multivariate statistical techniques or lexical analysis.

---

Introduction to HTML 1

Introduction

HTML (Hyper Text Markup Language) is the technical language that lies behind most web pages. Increasingly it is possible to get by without a great deal knowledge of HTML by using WYSIWYG (What You See Is What You Get) software packages such as Macromedia Dreamweaver or Microsoft FrontPage. These tools allow you to create webpages and online questionnaires without any knowledge of HTML, but a basic knowledge remains useful as it will give you more control and allow you to deal with any problems that emerge more quickly.

This page will provide the knowledge required to produce an HTML page. Even if you intend to use a WYSIWYG package to create your online questionnaires it is still worth spending a short time developing a basic knowledge of HTML.

To produce a web page effectively, the only requirement is that you have a simple text editor, such as notepad for windows, and a browser such as MS Explorer in which you can test your pages. The next section explains how to use these tools, and it can be ignored if you are using a WYSISYG editor.

Producing and editing web pages

The basic steps in producing and editing web pages are as follows:

Producing an HTML document

The first step in creating a web page is to produce a text file and save it as HTML.

To do this, you will need to open your text editor and copy the following basic web page into it:

You then need to save the file as an html page by adding an '.html' or an '.htm' extension. Certain servers require a three-letter extension which means that it is probably safer to use the 'htm' extension, although in most cases, there is no difference between them. In notepad, the save is done by choosing the options shown below. You should choose a folder to save the file in and remember where you saved this file.

Viewing the document

To view this document, start your browser, and open the page by choosing 'File', then 'Open'. NB. Make sure you are working offline if you pay for your internet connection time. It is not necessary to be connected to view files saved on your computer (local files).

This will allow you to type the location and file name into the dialogue box (shown below), or select browse to navigate to the correct location.

Changing the document

To make changes to the web page, you should change the source file in notepad, save the file, then refresh the page in your browser, by using the 'refresh' or 'reload' buttons (shown below).

You can open the source file of your own page to make changes by selecting 'View', then 'Source', as shown below.

You can also use this to view the HTML source of any web page on the internet. This is a very effective way of developing your knowledge of HTML, allowing you to view how particular effects within web pages have been created.

HTML Tags

HTML documents basically consist of text marked with tags which tell the browser how to present its layout and style.

These tags can consist of elements, attributes and values.

e.g.

The following tag:

produces the following when placed in an HTML document:

The tag is made up of an element, an attribute and a value as follows:

Similarly, the following tag:

adds the following yellow background colour to the entire page:

This is also made up of an element, an attribute and a value as follows:

Further details about these tags are given below.

Elements

The usual pattern for elements tags is:

<Open tag> text </close tag>

e.g. 1

This produces two new paragraphs. The first consisting of the words 'To everyone:' and the second consisting of the word 'Hello!', as follows:

e.g. 2

This produces:

e.g. 3

This produces:

It is good practice to ensure that your tagging is symmetrical as in the following diagram:

and to avoid an unsymmetrical structure as in the following:

This will ensure your page comply with standards help to avoid the chance of information from being displayed incorrectly.

Although most tags follow the open tag (<>) and close tag(</>) format, there are certain key tags which stand alone.

The three most common examples are:

which produces a new line.



which produces a horizontal line, e.g.

---

which shows an image (on this occasion an image called 'smiley.gif' saved in the same folder as the web page).

e.g.

It is now increasingly common to see these tags 'closed' by the addition of a space and a forward slash before the closing bracket, as follows:

This is because the latest standards of XHTML state that all tags should be closed.

Attributes and values

Depending on the element used, different attributes and values can be applied. Some require an attribute and value while, for others, they are optional extras.

The typical pattern is to include them within the tag as follows:

Try to maintain consistency in the use of spaces and inverted commas as in the pattern above. This will ensure that browsers render the HTML fully and consistently, and it will also ensure your code meets the latest standards.

Thus, for example, the following should be avoided as the browser may not connect the value to the attribute correctly:

attribute1 = "value" attribute2 = "value"

attribute1 = value attribute2 = value

attribute1="value"attribute2="value"

Typically, attributes and values alter the style of text, images or other parts of a page. For example, they change the size, colour, or layout in different ways.

The effect of different attributes and values is discussed within each section below.

NB. For size values, it is good practice to use relative sizing rather than absolute sizing. Relative sizes are expressed in percentage terms or, in the case of font-size, in terms of 'ems'. These sizes allow the user to change the appearance of the page according to preference or accessibility requirements. The use of absolute values such as pixels prevents resizing in many browsers which may cause accessibility problems for users of the questionnaire. This issue is discussed in greater detail in the 'Key design issues' section of this technical guide.

HTML Document structure

HTML documents should begin with a DOCTYPE (document type) definition, known as a DTD. This declares what type of page it is and what language is being used, and it allows the page to be validated as conforming to Worldwide Web Consortium (W3C) standards.

The breakdown of the DOCTYPE information is as follows:

• DOCTYPE HTML PUBLIC - Declares the page as an HTML page for public browsers.
• HTML 4.01 Transitional - Declares that HTML version 4 is being used.
• EN - Declares that the page is written in English.

This must be followed by a root element '<html>' which allows the browser to display the page. The <html> tag must be closed at the very end of the document using '</html>'

Following this information, HTML documents are basically divided into two sections. The head and the body.

The beginning of each is marked within the 'open tags' <> and the end of each is marked by the close tag </>. They are highlighted with arrows () in the HTML page below:

More details about these sections are given below.

The head

The head contains information which is basically not intended for display. It is loaded into the browser before the body section.

A typical head sections is as follows:

Each section of this is explained below:

<title></title>

This states what the title of the page is, allows the title to be displayed at the top of the browser window, and provides a title that can be saved to a user's favourites list.

meta commands

These commands provide information about your pages. They are useful for search engines which use them to store information about pages for searching. They also provide useful information for allowing pages to be stored in repositories.

A common meta command is:

<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">

This describes the type of content and which set of characters is in use.

Other meta tags (mostly self-explanatory) are as follows:

<meta name="description" content="add description here">
<meta name="keywords" content="keyword1, keword2 etc.">
<meta name="author" content="author name">
<meta name="copyright" content="copyright information ">

Particularly useful meta tags for online questionnaires are as follows:

<meta name= "HTdig" content = "htdig-noindex">
<meta name="robots" content = "noindex">

These tags prevents search engines from indexing the page and thus prevent the page from being included in searches. (Note that some search engine robots may ignore these tags and index the page, but use of the tags is still likely to reduce indexing).

Cascading Style Sheets (CSS)

Cascading Style Sheets are useful for applying styles (layout, colours, positioning etc) across all elements of web pages. The aim is to separate the presentation of web content from the structure.

The Style Sheet information is placed as follows:

1. In the document head between the tags

<style type="text/css">

and

</style>

or

2. In a separate file which the web page refers to through a link placed in the head (This allows changes made to one file to work across all the pages which link to that file and prevents the need to change each file individually). The link is as follows:

<link href="filename.css" rel="stylesheet" type="text/css">

See the 'Introduction to CSS' section for more information on the use of Style Sheets.

Scripts

Scripts (e.g. JavaScript or VB Script) are placed in the head. A reference to the script is then placed in the body which 'calls' the script in order to perform an action such as checking that a form element has been completed. The script will be loaded into the browser before it is needed as the head section loads before the body.

Scripts are placed between the tags

<script language="javascript" type="text/javascript">

and

</script>

As with CSS, scripts can be saved in a separate file which the web page refers to through a link placed in the head (Again, this allows changes to be easily applied to all the pages which use a particular script).

The link is as follows:

<script language="javascript" src="filename.js" type="text/javascript"></script>

See the 'Introduction to JavaScript', 'Key design issues' and 'Form validation' sections for more information about scripting.

The body

The body of an HTML document contains the main display content. It is here that text, images, links, form elements, tables and lists are placed.

A brief overview of each of the main types of content (with the exception of forms) is given in the next section of this guide, 'Introduction to HTML 2'. For information about creating forms in HTML, see the 'web forms' section.

Learning activity: Review

Missing information:

</html> | </p> | <em> | <script> | </head> | <strong> | meta | </body> | </title> | <html>

HTML Document:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">

<head>
<title>Test page
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
< name="robots" content = "noindex">
< language="JavaScript" src="myScript.js"
type="text/javascript"></script>
<link href="myStylesheet.css" rel="stylesheet" type= "text/css">

<body bgcolor="#ffffec">
<p align="center"> Welcome </strong></em> to this website



Answers

---

Introduction to HTML 2

Introduction

The body of an HTML document contains the main display content. It is here that text, images, links, form elements, tables and lists are placed. The following paragraphs give a brief overview of each of the main types of content, with the exception of forms which are covered in the 'Web forms' section of this guide.

In each case, general information about controlling style and layout within tags is included. However, it is a good idea to consider the use of Cascading Style Sheets to create these effects (See the 'Introduction to CSS' section of this guide). This tends to lead to 'cleaner' HTML with less need for repetition of long tags with a great deal of attributes and values for style. It also makes it easier to alter styles across an entire page or series of pages and increases accessibility.

Text

Text elements

There are a range of elements used to format text. The main ones are headers, paragraphs and line breaks.

There are six levels of headers, marked by a tag with an 'h' followed by a number from 1 (the largest) to 6 (the smallest).

e.g.

Text can be positioned on a new line by inserting a line-break (<br />) or on a new paragraph, by enclosing it in the <p>...</p> tags.

e.g.

Additionally, there are a number of styling tags which can, among other effects, underline, italicise or embolden text. Some of these are:

Tag	Effect	Comment
<em>...</em>	Adds emphasis	(Usually renders in a browser as italicised text, but generally preferred to the italicise tag <i>...</i> as it allows the effect to be adapted in specific cases where, for example, the user is using a text-to-speech browser).
<strong>...</strong>	Makes text stronger	As above. Usually renders as bold but generally preferred to the <b>...</b> tag.
<def>...</def>	Indicates a definition. Usually renders as italics.	Other 'Logical styles' that indicate a particular effect that the browser may interpret in different ways include: <cite>...</cite> for titles, <code>...</code> to show sections of computer code, and <kbd>...</kbd> to represent typed text (usually renders as mono-spaced 'typewriter' style text).
<u>...</u>	Underlines text	Care is needed with the use of this tag as underlined text can frequently be confused with hyperlinks.
<sup>...</sup>	Places text above the horizontal line (e.g. for footnote numbering)	The <sub>..</sub> tag can also be used to create the opposite effect.
<s>...</s>	Produces a line through the text( strikethough).

Text attributes and values

Alignment

Paragraphs of text can be aligned using the 'align' attribute as follows:

produces the following when placed in an HTML document:



produces the following when placed in an HTML document:

<font>...</font>

For other formatting, the <font>...</font> tag is required. This takes attributes that affect the chosen typeface, size and colour, as follows:

Attribute	Possible values	Comment
<font size="value">	1, 2, 3, 4, 5, 6, 7 +1, +2, +3, +4, +5, +6, +7 -1, -2, -3, -4, -5, -6, -7	The default size for paragraph text is 3, with higher numbers producing larger text. The default size can also be increased or decreased by a certain amount by adding or subtracting by a value from 1 to 7.
font face="value"	Any font, or 'font family' (see comment).	It is important to remember that the user's computer may not have particular fonts that you may wish to use. Using common fonts is recommended, as is the use of 'font-families' which provide the browser with information about which fonts should be used as a replacement in a case where a particular font is not available. Thus the use of the tag <font face="Verdana, Arial, Helvetica, sans-serif"> tells the browser to use Arial if Verdana is not available, followed by Helvetica, and finally by the default sans-serif font.
font-color="value"	A hash-mark (#), followed by a six-figure 'hexadecimal' colour code. e.g. #FF0000 = red	There are 216 colours in the 'web-safe' colour palette. These colours are recommended as they are not subject to variation on different types of monitors and systems. The resources section contains a link to a palette of web-safe colours organised by either hue (colour) or value (lightness). This makes it easier to design appropriate colour schemes, using these colours.

<body> attributes and values

Attributes and values can also be added to the body tag to set default text and link colours and background images and colours for the entire document.

e.g.

A background colour can be applied to the whole document by adding the following:

This adds the following blue background colour to the entire page:

The colour is added through the use of a six-figure 'hexadecimal' colour code (in this case '#00ffff'). The code is preceded by a hash mark (#). A page containing the codes for the 216 'web-safe' colours can be found in the 'Further resources' section of this module.

Alternatively, a background image can be used as follows.

This 'tiles' the image across the screen, repeating it vertically and horizontally to produce a background. The image () is called "bluewhitebg.gif" and is saved in the same folder as the document. The effect is as follows:

Care must be taken when using such background images as they may not render well on the screen. If text is placed on top of backgrounds created using such images, this may also make the page difficult to read and affect its accessibility.

Text and link colours can be set using the following attributes with different values:

This will apply the following colour options to the whole document:

text will be black (#000000).

links will be blue (#000066).

visited links will be purple (#660066).

active links will be orange (#ff6600).

Links

Linking text

The basic tag for creation of links is:

This produces a link as follows:

It is possible to change the link through adjusting the position on the tags:

produces:

It is important to avoid enclosing other tags such as paragraph tags within the link tags as this is likely to prevent the link from working correctly.

A basic link will open in the same window. To open the link in a new window, target="_blank" is added to the link:

produces:

Where these types of links are used, it is good practice to inform the user that the link opens in a new window and to ensure that such links are used consistently throughout. This is likely to reduce the usability problems that can occur when users are unaware that a new window has been opened and are thus confused by the fact the 'back' button appears to have been deactivated.

Linking images

Images can also be used as links:

produces:

Linking from an image automatically adds a border around the image. To remove this, border="0" is added to the link. As with all images, it is also necessary to add 'alt' text to provide an alternative description for text-only browsers or in any situation when the image cannot be displayed.

produces the following:

Email links and links within pages

It is also possible to add a mailto link which automatically opens the user's email program (if available) with the correct address automatically filled in:

produces:

N.B. It is a good idea to refer to the email address in full in the link rather than using a link such as email us as this allows users who do not have or use an email program that can be automatically activated to see and copy the address easily.

A final type of link that can be used is a link within a page. This is done by inserting anchors in the page at the point you wish to link to The anchors are named using <a name="insert name here""></a> tags. The following tags produce anchor links to the headings 'Anchor 1' and 'Anchor 2'.

This produces:

To link to these anchors, the following code is used so that when the link is clicked, the user is taken to the appropriate anchor point.

This produces the following links. Their effect can be seen by selecting them.

Relative and absolute linking

Links between pages are of fundamental importance in the creation of a site. Absolute linking involves the inclusion of the entire URL as it would appear in the browser (e.g. http://www.le.ac.uk/etc/etc.htm). This would be the typical way of linking to external sites.

However, the usual method of linking pages of the same site and located on the same server is through the use of relative links. This section explains how these links work.

If all the site files are located in the same folder:

they are linked simply by adding the name of the document to be linked to.

e.g. For a link on the homepage (index.htm) to 'page1.htm', it is simply necessary to include the page name and extension in the link:

If the folder was placed on the server for the URL 'http://www.le.ac.uk', the link would take the user to the following URL:

Similarly, if 'page2.htm' includes an image called 'image1.gif' it is simply necessary to link to the image through its name and extension.

However, if the page is held in a folder':

it is linked by including the folder name.

e.g. A link on the homepage (index.htm) to 'page1a.htm'. :

The folder name must be included with a forward slash

e.g. 2. A link on the homepage (index.htm) to 'page1ba.htm':

Both folder names in the path are included.

If the folder structure was then placed on the server for the URL 'http://www.le.ac.uk', the link would take the user to the following URL:

---

For a link to a page further up the file tree, '../' is added to the link.

e.g. for a link from 'page1ba.htm' to 'index.htm', the link would be as follows:

---

Using this notation in combination, it is possible to link to any file in the same site.

Consider the following folder structure:

A link from 'page1ba.htm' to 'page2a.htm' would be as follows:

i.e. open the page called 'page2a.htm in the folder called 'section2' in the folder two levels above this one ('section1b').

and a link from 'page2a.htm' to 'page1ba.htm' would be:

i.e. open the page called 'page1ba.htm in the folder called 'section1b' in the folder called 'section1' in the folder one level above this one ('section2').

Learning activity

1. Which one of the following links is correct?

a. <p><ahref="http://www.le.ac.uk">The University of Leicester</a></p>
b. <p><a href="http://www.le.ac.uk">The University of Leicester</a></p>
c. <p><a href="http://www.le.ac.uk">The University of Leicester</p></a>
d. <p><a ref="http://www.le.ac.uk">The University of Leicester</a></p>

2. Which of the following attribute and value combinations for the <a href> tag will open a link in a new window?

a. target="_blank
b. target="_new
c. target="_parent
d. target="_top

3. Which of the following links correctly refers to the following anchor: '<a name="Anchor1"></a>'?

a. <a href="=Anchor1">Anchor 1</a>
b. <a href="@Anchor1">Anchor 1</a>
c. <a href="Anchor1">Anchor 1</a>
d. <a href="#Anchor1">Anchor 1</a>

4. In the following site file structure, what would be the correct link in "page1ba.htm" to "index.htm?

a. <a href="../index.htm">Home page</a>
b. <a href="index.htm">Home page</a>
c. <a href="../../index.htm">Home page</a>
d. <a href="../../../root/index.htm">Home page</a>

5. In the following site file structure, what would be the correct link in "page2.htm" to "page1ba.htm"?

a. <a href="../section1/section1b/page1ba.htm">page1ba</a>
b. <a href="page1ba.htm">page1ba</a>
c. <a href="../index/section1b/page1ba.htm">page1ba</a>
d. <a href="root/index.htm">page1ba</a>

Images

Formats

Though others are available, the two most common types of images in use on the internet remain the Graphic Interchange Format (GIF) and Joint Photographic Experts Group formats (JPEG). The filename extension for a gif is imagename.gif and for a JPEG, imagename.jpg.

In general terms, the use of gifs is more appropriate for graphics with a limited number of colours or line drawings. Jpegs are suitable for images with a greater number of colours such as photographs.

In either case, it is essential that the correct extension is used for the image to work.

Attributes and values

As seen in the links section above, the basic tag for the insertion of an image is as follows:

The image source (src) value is the path to the file name which can be expressed in absolute or relative terms (see the links section).

In addition to this, the following attributes and values are available for use. Some should be always be included, while others are optional.

Attribute	Possible values	Comment
width="value" height="value"	a value in pixels. e.g. width="50" height="50"	Although an image that is included without the height and width attributes will display at its original size, it is good practice to always include them. This allows the browser to load the information more effectively and to layout the page correctly even before the image loads. This is helpful for slow connections.
alt="value"	A description of the purpose or function of the image to allow its significance to be understood by users who have text-only browsers or in any situation when the image cannot be displayed.	To make pages accessible, all images should have an alt description. However, it is not necessary to describe every detail. The text should give as concise an indication of the image's function as possible. Where longer descriptions are required, these should be provided through links. Images with no importance such as spacing images should be given an empty alt tag "" to make it clear that this is the case. Any images used for buttons, icons, logos etc, should provide the information in the clearest and most concise way possible. e.g. "*", "[?]", "[!]".
border="value"	A value in pixels. e.g. border="2"	This is most commonly used to remove the border automatically placed around images used as links, by adding a value of "0".
align="value"	left, right top, middle, bottom e.g. align="top"	To centre an image it is necessary to place it within a centered paragraph using the <p></p> tags. This can also be used to align left or right. The top, middle and bottom values align the image on the horizontal line.
hspace="value" vspace="value"	A value in pixels e.g. vspace="10" hspace="10"	Sets the space around the top and bottom edges (vspace) and left and right edges (hspace) of and image. This graphic has an hspace of 10 pixels. This has an hspace of 30 pixels.

Example

The following full image tag:

produces the following:

Lists

List elements

The creation of lists in web pages is straightforward. It basically involves the following tag pattern:

<type of list>

<list item>First list item</list item>

<list item>Second list item</list item>

<list item>Third list item</list item>

</type of list>

The three main types of list are shown in the table with the HTML that produced them.

An unordered list (bullets) is as follows: Item 1 Item 2 Item 3	An ordered list (numbered) is as follows: Item 1 Item 2 Item 3	A definition list is as follows: Term 1 Definition 1 Term 2 Definition 2 Term 3 Definition 3
<ul> <li>item 1</li> <li>Item 2</li> <li>Item 3</li> </ul>	<ol> <li>item 1</li> <li>Item 2</li> <li>Item 3</li> </ol>	<dl> <dt>Term 1</dt> <dd>Definition 1</dd> <dt>Term 2</dt> <dd>Definition 2</dd> <dt>Term 3</dt> <dd>Definition 3</dd> </dl>

'Nested' lists

It is also possible to 'nest' a list within a list.

e.g. if an unordered list (ul) is placed inside one of the items of an ordered list (ol), as follows:

The result is a nested list as follows:

It is important to remember to close all tags in a list correctly and maintain symmetrical tagging. It can become difficult to track the tags in a nested list, and any unclosed or unsymmetrical tags may affect the way the list renders in a browser.

e.g. The tags for a basic nested list should be symmetrical, as follows:

Tables

Tables can be used in web pages for the presentation of data under headings. Because they allow for the precise placement of information on the screen, they are often also used to provide the overall layout for web pages. In either case, the basic elements, attribute and values used to create the table and its rows and cells are the same.

Table elements

The element tags for the creation of a table are as follows:

<table>...</table>

The beginning and end of a table.

<tr>...</tr>

The beginning and end of a row.

<td>...</td>

The beginning and end of a piece of table data (a cell).

Thus, the following code creates a 2x2-cell table:



cell 1	cell 2
cell 3	cell 4



Further columns can be added by increasing the number of <td>...</td> tags (New lines are marked with ):



cell 1	cell 2	cell 3
cell 4	cell 5	cell 6



and further rows can be added by increasing the number of <tr>...</tr> tags (New lines are marked with ):



cell 1	cell 2
cell 3	cell 4
cell 5	cell 6



Table layout

The browser renders the table width as the maximum number of cells on any one row. It then lines the cells on other rows up with these cells. If a row has fewer cells than this maximum, it will not automatically stretch these cells to fill the space but will line them up with the ones in the longest row, and leave an empty space in the table.

Thus a table with 2 cells on row 1, 3 cells on row 2, and 1 cell on row 3, as follows:





would produce the following (a background has been applied to the cells to show the spacing clearly):

cell 1	cell 2
cell 3	cell 4	cell 5
cell 6



In order to stretch the cells to fill the space in the table, the column-span attribute (colspan) is used.

Thus, if colspan = "2" is added to the HTML creating the first row as follows:

the result is:

cell 1	cell 2
cell 3	cell 4	cell 5
cell 6

Similarly, if colspan="3" is added to the <td> tag in the third row, the result is:

cell 1		cell 2
cell 3	cell 4	cell 5
cell 6

In the same way, the row-span attribute (rowspan) is used to control the spacing of rows.

If rowspan = "2" is added to the HTML creating the second row as follows:

the result is:

cell 1	cell 2
cell 3	cell 4	cell 5
cell 6

Note that this only works down a table. Adding rowspan ="3" to cell five will only be effective if the cell is moved to the first row as follows:





cell 1	cell 2	cell 5
cell 3	cell 4
cell 6



It is also possible to place a new table within a table cell.



Cell 1 cell a cell b cell c cell d	cell 2
cell 3	cell 4



A great deal of control can be added to the spacing of tables though the use of tables within table cells, alongside colspan and rowspan. It is thus common to use them to create the overall layout for webpages.

Where this is done, however, it is important to be aware of how the information may be presented for users of text-only browsers or screen-reading software, which 'read' the information from left to right.

For example, in the following table, a text-only browser would be likely to present the information from cell 5 before cells 3 and 4.

cell 1	cell 2	cell 5
cell 3	cell 4
cell 6



It is also important to use relative sizing (e.g. in percentages) rather than absolute sizing (e.g. in pixels) to ensure that the table will be visible on a range of screen sizes. (See the 'Key design issues' section of this technical guide for further information on this issue).



Learning activity: Table layout

1.

1	2
3	4
5	6

2.

1	4
2	5
3	6

3.

1	2	3
4	5	6

4.

1	2
	3
4	5

5.

1		2
3	4	5

6.

1		2
3	4

a.

b.

c.

d.

e.

f.

Answers

1=b.

2=e.

3=a.

4=f.

5=c.

6=d.

Attributes and values

The attributes used to format the style and layout of tables are applied to the table tag <table attribute ="value">...</table> and the table cell tags <td attribute="value">...</td>.

Table attributes and values

Attribute	Possible values	Comment
width="value"	A value in terms of the percentage of the screen width (relative width) e.g. width="90%". or in pixels (absolute width) e.g. width="550".	Care must be taken when using absolute width to ensure that the table can be viewed on smaller screens. (see the 'Key design issues' section of this technical guide).
border="value"	a value in pixels.	A zero border value is likely to be used where tables are used for page layout and positioning.
cellspacing="value"	a value in pixels.	Defines the space between table cells.
cellpadding="value"	A value in pixels.	Defines the space within table cells between the cell border and the content.
align="value"	left, center, right.	Used to align the entire table on the page. Only needed where a left-alignment is not required as this is the default alignment.
bgcolor="value"	A hash-mark (#), followed by a six-figure 'hexadecimal' colour code.	Sets the background colour of the table.
bordercolor="value"	A hash-mark (#), followed by a six-figure 'hexadecimal' colour code.	Sets the outside border colour of the table.

Table cell attributes and values

Attribute	Possible values	Comment
width="value"	A value in terms of the percentage of the table width (relative width) e.g. width="50%". or in pixels (absolute width) e.g. width="250".	relative sizing for table cells can be used to set a proportional width within absolutely or relatively-sized tables.
height="value"	a value in pixels.	Sets the height of individual cells (The entire row takes the height of the largest cell).
align="value"	left, center, right.	Sets the horizontal alignment of individual cells.
valign="value"	top, middle, bottom.	Sets the vertical alignment of individual cells.
bgcolor="value"	A hash-mark (#), followed by a six-figure 'hexadecimal' colour code.	Sets the background colour of the table.
bordercolor="value"	A hash-mark (#), followed by a six-figure 'hexadecimal' colour code.	Sets the border colour of individual cells.

Learning activity: Review

Part 1

1. A simple text editor and browser software is all that is needed to create HTML pages.

2. The head of an HTML document generally contains information which is intended to be displayed.

3. Cascading Style Sheet information can be placed directly in the head of a document or in a linked file.

4. HTML has six levels of headers, marked by an 'h' followed by 1 (the smallest) to 6 (the largest).

5. It is generally better to use 'Logical styles' such as '<em>' than physical ones such as '<i>'.

6. Images can be used as links from one web page to another.

7. For a link to a page further up the file tree, '.../' is added to the link.

8. There are three main types of lists in HTML documents: Bulleted, numbered and definition lists.

9. It is possible to place an HTML table inside a cell of another HTML table.

10. A space should be left between elements, attributes and values.

Answers

1. A simple text editor and browser software is all that is needed to create HTML pages.
TRUE: WYSIWYG (What-You-See-Is-What-You-Get) editors can be used to simplify the process, but they create HTML as text.

2. The head of an HTML document generally contains information which is intended to be displayed.
FALSE: The head generally contains information not intended for display such as scripts, metadata, and css information. The title is also included which displays in the browser.

3. Cascading Style Sheet information can be placed directly in the head of a document or in a linked file.
TRUE. A Style Sheet file (.css) can be linked in the head of the document.

4. HTML has six levels of headers, marked by an 'h' followed by 1 (the smallest) to 6 (the largest).
FALSE: <h1></h1> is the largest header, and <h6></h6> is the smallest.

5. It is generally better to use 'Logical styles' such as '<em></em>' than physical ones such as '<i></i>'.
TRUE: They allows the effect to be adapted by different browsers so that, for example, there will be a change of voice emphasis in a text-to-speech browser.

6. Images can be used as links from one web page to another.
TRUE: They can be linked in the same way as text.

7. For a link to a page further up the file tree, '.../' is added to the link.
FALSE: The correct notation is '../' not '.../'. e.g. '../myfolder/myfile.htm'.

8. There are three main types of lists in HTML documents: Bulleted, numbered and definition lists.
TRUE.

9. It is possible to place an HTML table inside a cell of another HTML table.
TRUE.

10. A space should be left between elements, attributes and values.
FALSE: The correct spacing is: <element attribute="value".

Part 2

Missing information:

"mailto | img src | </ol> | </font></h1> | </head> | <strong> | <ol> | <body | title> | <hr | <a href=" | html

HTML Document:

<! DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
< >
<head>
< This page</title>
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">

< bgcolor="#FFFFCC">
<h1><font color="#000066" face="Verdana, Arial, Helvetica, sans-serif">
< ="smiley.gif" width="32" height="32">Welcome to this page
<h2><font face="Verdana, Arial, Helvetica, sans-serif">Introduction</font></h2>
<p>We would like to find out:</p>

<li>Your age.</li>
<li>Your gender.</li>
<li>Which web browser you use.</li>

<p>Please complete the following egform.htm">form </a> with this information:</p>
<p>If you would like more information, please feel free to <a href=" adddress@le.ac.uk">contact us</a>.</p>
/>
</body>


Answers

The complete HTML is as follows:

Links to further information about HTML including reference information and tutorials can be found in the 'Resources' section of this module.

---

Introduction to Cascading Style Sheets

Introduction

CSS (Cascading Style Sheets - also referred to simply as 'Style Sheets') provide a means of adding design elements to basic HTML pages. For example, using CSS, it is possible to control the colour, positioning and spacing of objects such as text, links, images and tables. All the main design elements of this website are produced through the use of Style Sheets.

The use of CSS separates the presentation of web content from the structure, bringing three major benefits:

1. Design options are increased because CSS can provide more precise and wide-ranging control over design elements on the page (though it is important to make allowances for the fact that different browsers may interpret Style Sheet information differently and to thoroughly test pages).
2. Changes are easier to make during design and development because Style Sheet information is applied across all elements of a page or site. For example, if you want to change the style of all the links, it is necessary only to change the Style Sheet, rather than changing every link on the page or site.
3. Accessibility is increased as users can choose how they wish the site to appear by applying their own Style Sheets to a page, or by accessing the site content only without the style information. (It is thus important to design pages in such a way that the content remains accessible when the design features are removed, and to test that this is the case - e.g. by ensuring that colour is not used to impart meaning that can not be accessed when the colour is removed).

This page will provide the knowledge required to produce a Style Sheet and apply it to an HTML page. It does not aim to provide comprehensive coverage of CSS, but to provide an introduction to the basics.

As with the production of HTML pages, the only requirement is that you have a simple text editor, such as notepad for windows, and a browser such as MS Explorer in which you can test your pages. However, most WYSIWYG (What You See Is What You Get) software packages such as Macromedia Dreamweaver or Microsoft FrontPage allow for the automation of some aspects of CSS creation.

Learning activity: CSS in action

The following extract from a webpage uses CSS for layout, font, and colours. The HTML document is reproduced below, with the different sections divided up and labeled.





Explanations

Section of code	Explanation
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">	The DOCTYPE (document type) definition, known as a DTD. This declares what type of page it is and what language is being used, and it allows the page to be validated as conforming to Worldwide Web Consortium (W3C) standards.
<html>	The 'open HTML' tag. Tells the browser that what follows is an HTML document.
<head>	The 'open head' tag. The head contains information which is basically not intended for display. It is loaded into the browser before the body section. CSS rules are placed between these tags.
<title>CSS in action</title>	The title. This states what the title of the page is, allows the title to be displayed at the top of the browser window, and provides a title that can be saved to a user's favourites list.
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">	Meta command. These commands provide extra information about the pages. This meta command describes the type of content and which set of characters is in use.
<style type="text/css">	The 'open style' tag. The style rules must be placed within style tags or in a separate file linked to the document.
body { color: #003; background-color: #ff9; }	Style rule that applies the following style to all the tags in the body of the HTML page(s) linked to the Style Sheet: Dark blue text colour Light yellow background colour [NB. The full hexadecimal code for these colours are #000033 (dark blue) and #ffff99 (light yellow), but these shortened (#003 and #ff9) codes can be used in Style Sheets].
h1 { font-family: Verdana, Arial, Helvetica, sans-serif; font-size: 120%; font-weight: bold; color: #006; }	Style rule that applies the following style to all the <h1></h1> tags contained in the HTML page(s) linked to the Style Sheet: They are displayed in the first font in the font-family list that is available on the user's computer; The text is sized at 120% of the default size, in bold and in a blue colour.
p { font-family: Verdana, Arial, Helvetica, sans-serif; font-size: 90%; }	Style rule that applies the following style to all the <p></p> tags contained in the HTML page(s) linked to the Style Sheet: They are displayed in the first font in the font-family list that is available on the user's computer; The text is sized at 90% of the default size.
.red { font-family: Verdana, Arial, Helvetica, sans-serif; font-size: 90%; color: #f00; font-style: italic; }	A style 'class' that is not tied to a particular HTML element. This style rule can be applied to any tag contained in the HTML page(s) linked to the Style Sheet. The style is applied to the tag in an HTML document by labeling it with the name 'red' , e.g. <h3 class="red">A red heading</h3>
</style>	The 'close style' tag. The style rules must be placed within style tags or in a separate file linked to the document.
</head>	The 'close head' tag. The head contains information which is basically not intended for display. It is loaded into the browser before the body section. CSS rules are placed between these tags.
<body>	The 'open body' tag. The body of an HTML document contains the main display content. It is here that text, images, links, form elements, tables and lists are placed.
<h1>My Page</h1>	An <h1></h1> heading. This takes the style set in the h1 style rule above.
<p>Welcome to my web page</p>	A paragraph. This takes the style set in the p style rule above.
<p class="red">It is styled using CSS</p>	A paragraph with the style specified in the style class '.red' above.
<p style="text-align: center; color: #906;"> Hope you like it</p>	A paragraph with the style specified 'inline'. This takes the style set in the p style rule above, and alters or adds the style set in the line. Thus the font family and size set in the p style rule above apply to this paragraph and further styles are also added (centred text and a purple colour). Where the styles are in conflict, the inline style overrules the style set in the style tags.
</body>	The 'close body' tag. The body of an HTML document contains the main display content. It is here that text, images, links, form elements, tables and lists are placed.
</html>	The 'close HTML' tag. Required to end an HTML document.

Linking CSS to HTML documents

As shown in the activity above, Style Sheets consist of a set of rules which provide information on how particular elements on a page should be displayed. The style information can be linked to the HTML document using the following three methods:

1. Embedded CSS

The style rules are placed in the document head between the following tags:

and

2. External CSS

The rules are placed in a separate text file (without style tags) which is saved with a .css extension. The file can then be linked to the HTML document by placing the following in the head of the document:

It is also possible to link to the CSS file by importing the file when the page loads, using the following syntax:

Because older browsers do not recognise the @import syntax, it is common to use both methods together to link to different CSS files depending on what kind of browser is being used. If a Style Sheet designed for older browsers is placed in an href link, followed by an @import link, modern browsers will override the first Style Sheet with the second, while older browsers will use the first and ignore the second.

3. Inline CSS

Style information is added to an HTML tag in a similar way to that in which a range of attributes and values can be added (see the HTML section). e.g.

produces:

The term 'Cascading Style Sheets' derives from the fact that the Style Sheet information from all three methods can work together with the information from the latter overriding the information from the former in a 'cascade' (See 'the cascade' section below).

It is worth noting that the latest standards of XHTML recommend using external CSS only rather than using inline or embedded styles. This is because external Style Sheets allow the maximum separation of content from presentation, so that all content information is effectively placed in one file and all presentation placed in another. This makes it easier for users to display only the content or to apply their own Style Sheet.

Style Sheet syntax

The rules that Style Sheets are made up of consist of the following elements:

Selectors - A references to which elements on the HTML page the style should be applied to, or to the name of a style 'class' which can be applied to any tag (see the 'creating CSS classes' section below.

Declarations - A series of statements about what the style should be. These are made up of properties and values.

The syntax is as follows:

e.g.

applies a style to all the <p></p> tags contained in the HTML page(s) linked to the Style Sheet. They are displayed in the first font in the font-family list that is available on the user's computer, and in a blue colour.

The same syntax can be added inline to a tag in an HTML document by replacing the curly brackets with 'style=' and quotation marks as follows:

Punctuation and spacing

A CSS rule must be accurately punctuated to allow the browser to recognise and distinguish between different selectors, declarations, properties and values.

It is common to space Style Sheet rules as shown above with each declaration on a new line and indented from the selector. This is done for clarity to make reading and editing Style Sheets easier, but it is not obligatory and has no effect on how the browser interprets the information.

Creating CSS Classes

Different styles can be added to HTML elements through the use of classes. This is done by adding an extension to the selectors in the Style Sheet, placing the extension name after the HTML element name and a full-stop. The styles can then be applied by referring to the extension in the HTML document.

e.g. Two different paragraph styles can be created as follows:

The styles can then be applied to different paragraphs in the HTML document, as follows:

which produces the following:

Classes can also be created without attachment to a particular HTML element. The procedure is the same as above, but instead of adding an extension to an HTML element, it is created independently. To do this, a full-stop is added before the class name as follows:

The styles can then be applied to different elements in the HTML document, as follows:

which produces the following:

The styles will be applied to the elements and will override any conflicting colour and font styles that are already applied to them. Any styles that do not conflict will also be maintained through the 'cascade' (see section below).

Classes with <div> and <span> tags

<div></div> tags can be used in the HTML document to create a 'division' in the page in which all elements will have a particular style attached.

e.g.

Style Sheet:

HTML Document:

The styles linked to the <div></div> tags (shown next to the arrows) are applied to all the tags within, as follows:

<span></span> tags are used in a very similar way and also apply style to a section of a document. However, while <div> tags are always followed by a line-break, <span> tags are not.

<span> tags can thus be used to apply different styles to text within sentences and paragraphs.

e.g.

produces:

Replacing the <span> tags with <div> tags produces the following:

The cascade

Cascading Style Sheets are particularly useful in that they allow a set of generic styles to be applied to elements of an entire site. Changes can be made across the whole site simply by making one change to an external Style Sheet which all the pages are linked to.

e.g. If the following rule is included in an external Style Sheet linked to all the pages of a site

all the <h2></h2> headings will appear as follows:

However, where the designer wishes to add particular styles to individual pages or sections, or to make a generically-styled element on a particular page look different, s/he can take advantage of the 'cascade' which allows Style Sheet information from different sources to work together.

Where one change is required on a particular page, this can most easily be achieved by adding an inline style rule.

e.g. Adding the following syntax maintains the information from the generic Style Sheet, but replaces conflicting rules (concerning colour) with the inline style.

Thus a purple text colour is applied as follows:

Where a change is needed a number of times, an embedded style rule can be added, or a second external Style Sheet can be included.

Thus, adding the following in the head of the document maintains the external style information with the exception of the conflicting style rules (background colour and alignment):

and all <h2></h2> headers on the page will appear with a left alignment and a bright yellow background, as follows:

The effect would be the same if this information were added to a second external Style Sheet with a link placed after the first in the head of the document. The information in the second will work together with that in the first, overriding any rules that refer to the same properties, but preserving any other rules.

The browser will apply any inline styles, before applying embedded styles and finally applying external styles. Where there is style information from different sources that conflicts with each other, this is the order of precedence. Inline styles will overrule embedded styles which will overrule external styles. Styles from any source that do not conflict will be preserved.

Thus if the following inline style is added to a heading on a page with the style information above :

the following heading results:

The information from the three sources 'cascades' as follows:

Inheritance

HTML documents can be thought of as having a family tree structure where different elements are the parent or child of other elements. Thus for example, the <body> element is the parent of all other tags, and the list item tags (<li></li>) are the children of the list tags (<ol></ol> or <ul></ul>).

Most of the styles that are applied to the parent element will be inherited by the child element. This means that if a particular rule has been applied to the parent, it is not necessary to apply it again to the child element.

e.g.

In the following Style Sheet, the font-family information can be placed in the body selector, removing the need to repeat it in the other tags. The inheritance of the colour and font-family information is overridden in the 'h1' and '.red' selectors by specifying an alternative colour and family.

Thus, the following Style Sheet produces exactly the same results.

Careful use of inheritance can provide a means of making CSS information smaller and more efficient.

Resources for further development

Once you have an understanding CSS, one of the most important resources for use when working with Style Sheets is a reference to the properties and possible values that can be applied to different elements of an HTML page. A clear example is provided at http://www.w3schools.com/ css/css_reference.asp, which offers further information on the use of different properties.

W3schools also provides tutorials, examples and quizzes at http://www.w3schools.com /css/default.asp

The Worldwide Web Consortium (W3C)'s CSS page at http://www.w3.org/Style/CSS/ offers a wealth of information, and provides an opportunity to validate your CSS at http://jigsaw.w3.org/ css-validator/. This makes it possible to check that your CSS meets web standards and guidelines by entering a link to your CSS file, uploading your file from your computer, or pasting your CSS into a text box on the page.

A useful article by John Gallant and Holly Bergevin on using CSS 'short hand' properties to reduce the size of CSS files and increase efficiency is also available at http://www.communitymx.com/ content/article.cfm?cid=90F55

Learning activity: Review

Part 1

Missing punctuation:

, | . | : | ; | # | < | = | } | { | >

HTML Document:

style type "text/css"
p bluesans
font-family Helvetica sans-serif
color: 006;

</style>

Answers

Part 2

Question 1. Look at the following style information and decide which of the following options (a, b, c, or d) would be the final style applied.

Inline style:

Embedded Style Sheet:

External Style Sheet:

a.

b.

c.

d.

Question 2. Look at the following style information and HTML, and decide which of the following options (1, 2, 3, or 4) would be the final style applied.

Style Sheet

HTML

a.

b.

c.

d.

Answers

1=c

2=b

---

Web forms

Introduction

Web forms are at the heart of online questionnaires which basically consist of text (with any associated multimedia) and form elements inserted into a web page. Forms make it possible for participants to enter information and send this information to the researcher for analysis.

This page will provide the knowledge required to produce a web form. It will introduce the different form elements available and cover the different options for how these elements function and appear.

Learning activity: web forms



1. What is your name?

2. How old are you?

years

3. How often do you use the internet?

everyday
2-3 days per week
4-5 days per week
6-7 days per week
less than once a week

4. Which of the following do you regularly use the internet for?
(You can select as many options as you like. If you would like to remove a selection you have made, select it again to deselect it).

E mail
Finding information about things to buy
Making purchases
Entertainment
Finding general information
Educational courses
Downloading music
Discussion boards
Real-time chat

5. How would you rate your skill as an internet user?

Select an option ------------------- Very advanced Advanced Average Basic Very basic

6. What, in your opinion, are the three main advantages of the internet?



Task 1: The basics

Form elements

1. Text box

2. Textarea

3. Select box

4. Check boxes

5. Radio buttons

Examples

a.

Select an option ------------------- Very advanced Advanced Average Basic Very basic

b.

E mail
Finding information about things to buy
Making purchases

c.

d.

e.

everyday
2-3 days per week
4-5 days per week

Answers

1=c
2=d
3=a
4=b
5=e

1. What is the difference between the action of radio buttons and check boxes? Which have the same actions as the select box?

2. Are there any maximums to the length of the text that can be entered into the text boxes and textarea? What happens when the text reaches the end of the boxes?

Answers

1. The radio buttons work together as a group. It is only possible to activate one option at a time. However, multiple Check box options can be chosen simultaneously.

The radio buttons are closest to the select box in that only one option can be chosen. It is, however, possible to set a select box so that multiple selections can be chosen by holding down the control button (see section below).

2. The second text box has been set with a maximum character length of 3 characters. If no maximum character length is set (as is the case with the first text box), text can be entered beyond the width of the box. Maximum character lengths can also be set for textareas. If no maximum is set, the scroll bar is automatically activated once the end of the box is reached.

Task 2: Examining the HTML





Explanations

Section of code	Explanation
<form name="form1" action="" method="post">	Tag to open the form, which is given a unique name to enable any scripts to refer to the form(s) in a page, and the elements within. The action and method attributes control how and where the information is sent when the form is submitted (see section below).
<p><input type="text" name="namebox" /></p>	Text for question 1 within paragraph tags. See 'Ensuring web forms are accessible' below for information on using labels for form elements
<p><input type="text" name="namebox" /></p>	Input tag which places a text box (type="text") on the page of the default size and without a maximum number of characters. The name allows the box and its contents to be accessed by any scripts to validate or process the form.
<p>2. How old are you?</p>	Text for question 2 within paragraph tags.
<p><input name="agebox" type="text" size="5" maxlength="3" /> years</p>	Input tag for a text box (type="text") with a 5-character width and the maximum number of characters set to 3. The close tag (' />') ensures that the input tag meets the latest standards of XHTML which state that all tags should be closed.
<p>3. How often do you use the internet?</p>	Text for question 3 within paragraph tags.
<p><input type="radio" value="Everyday" name="often" /> Everyday<br /> <input type="radio" value="2-3 days" name="often" /> 2-3 days per week<br /> <input type="radio" value="4-5 days" name="often" /> 4-5 days per week</p>	Input tags for three radio buttons (type="radio"). The fact that they are given the same name (name="often") means that they operate as a group whereby only one option can be selected at any one time. This name means that scripts can access the tags to check which of the buttons with the same name has been selected. The value of the selected button can then be extracted.
<p>4. Which of the following do you regularly use the internet for?<br /> (You can select as many options as you like. If you would like to remove a selection you have made, click on it again to deselect it).</p>	Text for question 4 within paragraph tags.
<p><input type="Check box" value="Email" name="email" />E mail<br /> <input type="Check box" value="Finding info" name="FI" />Finding information about things to buy<br /> <input type="Check box" value="Purchases" name="purchases" />Making purchases</p>	Input tags for three Check boxes (type="Check box"). The names act as a reference to each Check box and mean that scripts can access them to check whether they have been checked. The values of any checked boxes can then be extracted.
<p>5. How would you rate your skill as an internet user?</p>	Text for question 5 within paragraph tags.
<p><select name="levelSelect"> <option selected="selected">Select an option</option> <option>-------------------</option> <option value="VA">Very advanced</option> <option value="A">Advanced</option> </select></p>	Select tags which create a select box with a unique name to allow it to be referenced. Each choice is placed within <option></option> tags which are given a value so that the value of the selected option can be extracted. The first two options are not intended to be selected - the first acts as an instruction and the second separates this from the genuine options. Inserting 'selected' after the first option means that this option is selected by default and appears in the select box when the form is loaded.
<p>6. What, in your opinion, are the three main advantages of the internet?</p>	Text for question 6 within paragraph tags.
<textarea name="advantages" rows="5" cols="50"></textarea>	Textarea tags which create a text input area, given a unique name with the 'name' attribute. The 'rows' attribute specifies the number of lines in the box, and 'cols' specifies its width.
<p><input type="button" name="Submit" value="Submit" onclick="openResponse();"></p>	Input tag for a button (type="button"), which has no default action and which must be associated with a script to have an effect. It is used with this form because it is processed using a piece of JavaScript code connected to the 'onclick' attribute (activated when the user clicks on the button). The value attribute sets the text on the button. For most forms, a submit button can be used (type="submit") which inserts a button with a default action of processing the form by sending the information to the place and in the manner specified by the form tag.
</form>	The 'close form' tag which ends the form.

The form tags

Form tags mark off the beginning and end of a form. Controls within the form tags are effectively grouped together so that when a submit button is clicked the data in all the controls within the form is sent for processing. It is possible to include multiple forms on a page, but only one form can be submitted at any one time.

A typical form tag is as follows:

The 'name' attribute allows the form to be given a unique name. This is essential in allowing the information from the form to be referenced by scripts so that the contents can be accessed and manipulated.

The 'action' attribute specifies where the information should be posted to when the 'submit' button is pressed. In the example above, the contents are posted to a page called sendForm.php, where it will be processed by a php script (for example, by being sent via email or sorted and transferred to a database).

The 'method' attribute specifies how the information in the form should be sent. The two values are 'post' or 'get'. The difference is that in the case of the 'post' method, the information is sent separately, while the 'get' method attaches the information to the end of the URL of the page that will process the information. An example of the 'get' method from a search engine in which the user has searched for the keywords 'JavaScript' and 'validation' and selected options to see pages only in English and from the UK, might be:

where '?' separates the URL from the data, '=' separates variable names from the data, and '&' separates different items of data.

Though the 'get' method can be useful in allowing the form data to be bookmarked along with the URL (allowing a search to be bookmarked), in the majority of cases, the 'post' option will be used as this can deal with larger amounts of data and does not reveal the data in the location bar of the browser.

Form controls for input

The majority of form controls that allow the user to input information are created using the input tag, with the type attribute specifying what type of control appears on the screen. Like an image tag, the input tag does not have a 'close' tag, and in order for it to meet the latest standards of XHTML, the close tag '/' must be included at the end. An example of an input tag for a text box is:

The form controls that are not created using the input tag are textarea and select box controls. These are displayed through <textarea></textarea> and <select></select> tags respectively.

Each control can be given attributes and values to control aspects such as width and length, and whether or not the control is filled in or selected by default.

As with any other HTML element, the appearance of forms and form controls can also be customised using Cascading Style Sheets. The examples below show a text input box with the default style, alongside one that has been customised via Style Sheets and has a blue border and yellow background (see the 'Introduction to CSS' section of this guide for more information).

The following table provides an example of how to insert the different types of control into a web page and outlines the different attributes and values that can be applied to each:

Name / Example	Example HTML	Comments / Possible attributes and values
Text box	<input type="text" name="text box1" size="15" maxlength="20" />	This produces a single-line text input box with a width of 15 characters and the name 'text box1', that can hold a maximum of 20 characters. It is possible for text to appear in the box by default by adding value="x, y or z" to the tag, e.g.
Password box	<input name="password1" type="password" size="15" maxlength="10" />	This produces a single-line text input box in which any characters input will display as asterisks or discs. (NB. This is a display feature which does not add to the security of information submitted by the form) Possible attributes and values are the same as for text boxes.
Check box Yes No Maybe	<input type="Check box" name="c1" value="Yes"> Yes <br /> <input type="Check box" name="c2" value="No"> No<br /> <input type="Check box" name="c3" value="Maybe" checked="checked" /> Maybe	This produces square tags that display a tick when selected and can allow multiple responses. When the form is submitted the name and value of any checked boxes will be submitted. Adding the attribute checked="checked" means that the box is selected by default.
Radio button Yes No Maybe	<input type="radio" name="r1" value="Yes" / > Yes <br /> <input type="radio" name="r1" value="No" /> No <br /> <input name="r1" type="radio" value="Maybe" checked="checked" />	Circular tags that fill in when one option is selected. Where a group of radio buttons are given the same name only one of the buttons can be selected at any one time. As with Check boxes, adding the attribute checked to one of the buttons means that it is selected by default when the page loads.
Text area Text can be added between the tags	<textarea name="textarea1" cols="10" rows="5">Text can be added between the tags</textarea>	Works in the same way as the text box, but produces a multi-line text input box with a width and height specified by the cols and rows attributes. The box can be empty by default or text can be added between the tags
Select boxes Drop-down menu box Choose an option ------- Option 1 Option 2 Option 3	<select name="select1"> <option selected="selected">Choose an option</option> <option>-------</option> <option>Option 1</option> <option>Option 2</option> <option>Option 3</option> </select>	An element which allows users to select options by clicking. One option is displayed at a time, and only one can be selected. In a similar way to Check boxes and radio buttons, adding the attribute selected="selected" to one of the options means that it is selected by default. It is a good idea to make the selected option an instruction to avoid measurement error if an option selected by default is submitted.
Select boxes List box Choose an option ------- Option 1 Option 2 Option 3 (size="5") Choose an option ------- Option 1 Option 2 Option 3 (size="1")	<select name="select2" size="5" multiple="multiple"> <option selected="selected">Choose an option</option> <option selected="selected">-------</option> <option>Option 1</option> <option>Option 2</option> <option>Option 3</option> </select>	List boxes are produced using the same tags as drop-down menu boxes, but the attribute size="x" is added where x is the number of options visible at any one time. Adding the attribute multiple=multiple to the tag allows more than one option to be selected if the user holds down the control key whilst making selections (instruction on how to do this may be required or it may be preferable to use Check boxes which have a similar function). Adding the attribute selected=selected to one or more of the options means that it is selected by default.

Hidden form fields

Hidden form elements are form controls that are not displayed on the page (though they are visible in the HTML source for the page). They are useful for storing and passing information from page to page which is not necessary or desirable to display. They can be thought of as text boxes with content that can be set by the developer via HTML or JavaScript rather than being completed by the user. The basic syntax for creating hidden form fields is as follows:

The name attribute allows the field to be referenced by scripts so that the information (set using the value attribute) can be written to or collected from the field when needed.

Examples of uses of the hidden form control include the following:

Collecting information from questionnaires that span multiple pages so that the information from earlier pages can be passed to later pages without it being repeatedly displayed on every page. Upon submission of the questionnaire on the final page, the data from a form on this page can be combined with one or more hidden elements containing the data from forms on previous pages. The data from multiple pages and forms can thus be submitted simultaneously. (There may be cases where it is desirable to submit information from each page separately to, for example, identify any key drop-out points).

Passing extra information about the submission alongside the data from the questionnaire. This may include information such as date and time of submission, approximate time taken to complete the questionnaire or individual questions, the page which contained the link the participant followed to reach the questionnaire, and information about the computer used by the participant such as the IP address or the browser used. These can provide possible routes to identifying and removing anomalous submissions (e.g. extremely rapid completion or multiple submissions) alongside providing information about the success of the forms of advertising used to elicit participation.

Passing information collected solely to enhance the effectiveness of data collection, management or processing. Examples may include the addition of a standard 'from' and 'subject' line to be added to emails containing data from particular questionnaires to facilitate automatic management of email, or, where appropriate, the inclusion of information about the version of a questionnaire completed.

See the 'Gathering information about participants' section of this guide for further information about the use of hidden fields.

Buttons

Buttons must be added as the final component of a working web form. It is through selecting these buttons that the participant is able to submit or reset a form, or perform some other action programmed by the developer.

The three standard types of button are illustrated in the following table:

Name / Example	Example HTML	Comments / Possible attributes and values
Submit button	<input type="submit" name="Submit1" value="Submit form" />	The submit button automatically processes the information in a form by sending it to the place and in the manner specified by the form tag. The text on a button can be changed by altering the value attribute.
Reset button	<input type="reset" name="reset1" value="Reset form" />	The reset button automatically returns all the form elements within the same form as the button to their default state as per when the document was opened. Use of a reset button must be carefully considered with longer forms in particular, as participants who accidentally press the reset button As before the text on the button can be changed by altering the value attribute.
Standard button	<input type="button" name="buttton1" value="Perform an action" onclick="perfActn(); />	This type of button has no default action and it must be associated with a script to have an effect. The script will usually be linked to an 'onclick' event which will carry out the action set by the script when the button is pressed. The example shown would cause a JavaScript function called 'perfActn' to be activated when the button is clicked (this may, for example, be written to check that all required fields are completed before sending the information to the server (see the 'Form validation' section of this guide for further information).

Using tables to organise controls into grids

The following example shows how groups of radio buttons can be organised into grids for Likert scales or semantic differential questions:

Complete the following statement by choosing the number that most closely matches your opinion for each row:

The internet is:

	1	2	3	4	5
boring						interesting
difficult						easy
risky						safe
useless						useful

The radio buttons in each row are grouped by giving them the same name, so that only one option can be selected for each row. The buttons in each group are then given a different value so that when the form is submitted, the names are sent along with the value of the selected button (or no value if none are selected). This works in exactly the same way as four unrelated groups of radio buttons in four separate questions.

The table is then styled using HTML or CSS (See 'Introduction to HTML' / 'Introduction to CSS' sections of this technical guide).

Ensuring web forms are accessible

It is important to ensure that a questionnaire is fully accessible to users of non-graphical browsers or users who are not using a mouse or other click-and-point device. To do this, all form elements should be clearly labelled.

This is done using the <label></label> tags as follows:

It is also important to make an explicit connection between the label and the control using the for attribute. This tells the user exactly which control the label refers to as follows:

The text box is given an identifying attribute id="name" which the label's for attribute explicitly refers to (label for="name"). This ensures that there will be no confusion in the use of the form for those using non-graphical browsers.

A second attribute which can be used to improve the accessibility of a questionnaire for those using a keyboard or equivalent is the tabindex. The tab key (or equivalent in, for example, voice activated browsers) can be used to select each element in a form in turn. The tabindex explicitly determines the order in which the elements are selected when the user tabs through them, as follows:

In this example, the second text box is selected first when the user presses the tab key. Pressing the key again selects the first box, and pressing it for the third time selects the submit button.

---

Introduction to JavaScript

Introduction

The use of JavaScript (or other scripting languages such as VB Script) can add a number of enhancements to an online questionnaire. These include:

1. Checking whether or not all questions have been answered correctly and prompting participants accordingly.
2. Playing a part in effective questionnaire design, for example, by allowing instructions to be delivered when needed in pop-up windows or alert boxes and allowing the use of browser detection to test which browser a user has and whether or not he or she has certain technology installed.
3. Improving the delivery of questions, for example by allowing data to be passed from page to page rather than being delivered on one long document, or by allowing randomisation.
4. Allowing the collection of data such as date and time of submission, and information about the computer used by the participant such as the IP address or the browser used.

The pages which follow this one provide an outline of some of these uses of JavaScript and offer a number of scripts which can be used or adapted. Beyond this website, there are also a number of sites offering freely-available scripts for direct use or adaptation. In order to take advantage of these resources, an understanding of the basics of JavaScript is generally required.

This section will introduce you to the basic concepts by examining two simple HTML documents with JavaScript functionalities. JavaScript will be the scripting language used throughout, though the procedures and scripts will be similar for other languages.

Accessibility

It is important to bear in mind that JavaScript may reduce the accessibility of the questionnaire. Users of text-only or screen-reading browsers are likely to be unable to access any functionality provided by JavaScript, and it is also possible that JavaScript may not be fully supported in the user's browser or that he or she may have chosen to deactivate it.

Thus, while it can be used to enhance the functionality of the questionnaire, it is not good practice to produce a questionnaire that is not usable without JavaScript. Where any key functions are reliant on JavaScript (e.g. where the navigation and question delivery is controlled by JavaScript) it is important to inform the user of this and to offer alternatives.

The <noscript></noscript> tags can be used to deliver a message to users who are using a browser that does not support JavaScript. Anything placed between the tags will be displayed in cases where JavaScript is not available.

e.g.

By placing a the following meta tag in the head of the document between <script></noscript> tags, it is also possible to redirect the user to a new document. In this case the redirect occurs immediately (0 seconds) and altpage.htm is the name of the document the user is redirected to (which is held in the same folder as the original page). In this way, for example, users without JavaScript can be taken to a version of the questionnaire that does not require it, or to further instructions and contact details.

For accessibility, it is also important that JavaScript actions are not dependent on mouse actions such as dragging or double clicking. Where this the case, keyboard-accessible alternatives should also be provided. See 'Event handlers' section below.

Example 1: A welcome message

In the following example, the contents of a text box are inserted into an alert box when the user clicks on the button.

What is your name?

If this were the entire page, the HTML and JavaScript would be as follows:

The majority of the document is HTML with some JavaScript added. Before considering the JavaScript, check your understanding of the HTML sections and, if necessary, read the brief explanation that follows.

Explanation

The HTML document has a head section that includes a title and a link to a Cascading Style Sheet called "mainstyle.css". The body contains a form which is styled using <div class></div> tags. These apply a style called "ques" which is defined in the Style Sheet to everything between the tags. The form contains three input elements - a text box called "namebox", a button called "submit" with "Submit" as the text (the value), and a reset button called "reset" with "Reset" as the value.

JavaScript within the HTML document structure

The main script is placed in the head of the document, between script tags as follows:

and

It could also have been saved in a separate text file with the extension '.js'. This would be linked to the web page through a link placed in the head:

Functions

The action of the script takes place within a function called showAlert which is surrounded by curly brackets ({}).

In this case, an alert box is shown with the contents of the text box incorporated into a message. The function can be explained as follows:

The value of the box is extracted and placed between two strings (text variables), namely "Hello " and "." (The quotation marks identify them as strings). The alert function is then triggered which places everything within the brackets in an alert box. The semi-colon (;) is placed at the end of each line of the function.

As in this example, a function is a block of code that carries out a particular action. In effect the code is not carried out until the function is 'called' from within the document when a particular event occurs (such as the user clicking a submit button).

The basic structure of a function is as follows:

The brackets following the function name allow different arguments to be included when it is called by different elements.

In the case of the example, this is not done - the code will always display the same message and the contents of the same text box when the function is called. However, the inclusion of arguments allows functions to be created which can be reused at different times by different elements in the document. In this case, a message and a reference to a particular text box name could be added when the function is called to allow it to display different messages along with the contents of different boxes.

They can thus be a very efficient way of carrying out different actions with one block of code (see 'Using arguments within functions' below).

This function is 'called' by the onclick code placed in the button tag:

The onclick code is an example of an 'event handler' which triggers an action when a particular event occurs. In this case, the showAlert() function happens when the participant clicks on the button. Other examples of important event handlers are:

Event handler	Description
onDblClick	Placed in the tag of a button or link, the action happens when the user uses the mouse to double select the object.
onmouseover / onmouseout	The action happens when the user places the mouse over a button or link / removes the mouse from the button or link.
onFocus / onblur	Usually placed in the tag of a form control, the action happens when the element receives focus (the user selects it) / loses focus (the user moves away).
OnChange	The action happens when a control loses focus (the user clicks away) and the value has been changed.
OnSubmit/onReset	Placed in the form tag, the action happens when a form is submitted (the user presses the 'submit' button) / reset (the user presses the reset button).
OnLoad / onunload	Placed in the body tag of a document, the action occurs when the page loads / unloads.

To ensure the accessibility of a questionnaire, any event handler that is dependent on the use of a mouse should be avoided. This will allow the JavaScript function to be activated by those using a keyboard or equivalent such as a voice activated browser. Where event handlers such as onmouseover or onmouseout are used, they should also be combined with onfocus or onblur events which will trigger the action when a user tabs to a button or similar element. For example in the following 'image flip' code, a function to change an image is called by the onmouseover event handler. The onmouseout handler calls a second function to change the image back. Adding the onfocus="this.onmouseover();" and the onblur="this.onmouseout();" code ensures that the same actions will take place when a user without a mouse tabs to or away from the image.

Accessing data in controls

Elements in a web page are referenced by JavaScript using the 'tree-structure' of the document to refer to a particular element by name.

The contents of the text box in the example are referenced using the following:

This refers to the value (the text) of the text box called namebox within the form called egForm1 within the document.

By giving all the form controls on a page a unique name, it is possible to use this type of referencing to extract or set their value.

As an alternative to writing out the full reference where there are numerous references to controls within a form, it is also possible to make use of the 'this' which is used in JavaScript to allow an object to refer to itself.

If an event handler is in the form tag, 'this' can therefore replace the words 'document.egForm1' in the reference.

If it is in a button within the form, the syntax 'this.form' can be used to refer to the form (i.e. the form that contains this).

To refer to a text box control called 'box1' from the button within the form, 'this.form.box1' can be used instead of 'document.egForm1.box1'. (i.e. box1 which is in the form that contains this).

This referencing is illustrated by the following example which is a form called frm1 containing two text boxes called box1 and box2, and a button called btn1. Code is added to the onclick event handler of the button which will display the contents of box1 in box2 when the user presses the button, as follows:

Box 1 Box2

The code is:

There is no difference if the full reference is replaced with the shortened version using 'this', as follows:

Although it is not a great deal shorter, using this syntax can make code more flexible and can avoid errors where the form name is referenced incorrectly (the this.form syntax automatically feeds in the correct name). If it is used with arguments, it can make it easier to reuse functions with different forms and controls. (see section below)

Using arguments with functions

The use of arguments can be illustrated by the alert function which is used to display the name from the text box in example 1.

It is possible to create one function with an argument (given the name 'msg') that will be the message displayed when the function is called, as follows:

A string can be added to an onclick event handler which is then fed into the function when the function is called. This means that a different message can be displayed each time and it is not necessary to write a new function for each message.

e.g. All the buttons and links in the following paragraph use this same function to display a different message:

The code in the HTML document which calls the function is as follows:

If the same concept is applied to example 1 (which displayed a welcome message incorporating the user's name taken from a text box), it is possible to feed in the text box name as a second argument. The name is then passed to the function along with the message, allowing it to be reused within or between documents.

The original function is:

It is altered by adding argument names between the brackets, and replacing the message and text box reference with these name as follows

This tells the function to expect the relevant information to be fed in when the function is called.

e.g.

The first argument is a string which is fed into the function as msg. It is placed within single quotation marks rather than double as double quotation marks would interfere with the tag. A comma then follows to separate the arguments.

The second argument uses the 'this' shorthand to tell the function to take and display the contents from the text box called 'box1' within the same form as the button that was clicked (this.form).

It can thus be called from different boxes in the document and deliver a different message accordingly:

What is your name?

What is your full name?

The code in the HTML document is as follows:

By placing the script in a file linked to a number of documents, it can also be used across an entire site.

Although this is not very useful for a welcome message script, applying the use of arguments and reusable functions to common tasks such as form validation can be a very efficient way of carrying them out.

Example 2: Simple validation

This example checks that a value has been entered in the text box, preventing submission until this is the case. If a value has been entered a welcome message is displayed.

What is your name?

If this were the entire page, the HTML and JavaScript would be as follows:



The HTML sections of the document are almost the same as those in example 1. Again, there is a head section that includes a title and a link to a Cascading Style Sheet called "mainstyle.css". The body contains a form which is styled using <div class></div> tags. These apply a style called "ques" which is defined in the Style Sheet to everything between the tags. The form contains three input elements - a text box called "namebox", a button called "submit" with "Submit" as the text (the value), and a reset button called "reset" with "Reset" as the value.

The function that carries out the action is called validateForm(). It is placed between <script></script> tags and is called by the onSubmit event handler when the participant submits the form. The onSubmit handler is specifically designed for form validation. It is followed by the key word return which means that the results of the validateForm() function will be returned to the piece of code. These results must be either 'true' (the submission proceeds.), or 'false' (the submission is blocked).

The onSubmit handler includes an argument which is the reference to the form (this). This feeds the full reference to the form name (document.egForm2) into the function when it is triggered. The function then checks whether the box is empty, and displays an alert message accordingly. It also returns the required 'true' or 'false' value that will allow or block the submit action. Details about the conditional section of the function (if/else) are given below.

Conditionals

Conditionals are integral to validation and, indeed, to programming of all kinds. They allow the code to test whether or not certain conditions have been met and to perform different actions accordingly.

The basic structure of conditionals in JavaScript is as follows:

Like functions, the actions that take place if a condition is met are placed within curly brackets '{}'.

The conditions that the code tests for are placed within brackets '()'.

The function in the example 'validateForm()' basically consists of a conditional to test whether the text box is empty.

The '==' symbol is an operator meaning 'is equal to', so the conditional tests whether the value is equal to an empty string ( "").

If this is the case, the following three actions are carried out:

1. An alert box delivers a 'please enter your name' message.
2. The text box is given the focus through the 'focus()' method (i.e. the curser is placed inside the text box ready for it to be filled in).
3. 'False' is returned to the onSubmit attribute in the form tag preventing the form submission from proceeding.

If it is not the case, the action is not carried out and the code moves on to the 'else' statement which performs the following actions if the value is equal to anything else except for an empty string(""):

1. An alert box delivers a welcome message consisting of 'Welcome ' and the contents of the text box.
2. 'True' is returned to the onSubmit attribute in the form tag allowing the form submission to proceed.

The else statement does not test for specific conditions, but provides a means of carrying out an action if any other condition is met but those specified.

In this case, it could be replaced with an 'else if' statement to test whether the box is not empty:

The '!=' symbol is an operator meaning 'is not equal to', so the conditional tests whether the value is not equal to an empty string ( ""). Other common operators used in conditionals are as follows:

Operator	Meaning
x > y	x is greater than y
x < y	x is less than y
x >= y	x is greater than or equal to y
x <= y	x is less than or equal to y

Multiple conditions can also be tested for using the following operators:

Operator	Meaning
condition 1 && condition 2	condition 1 and condition 2
condition 1 || condition 2	condition 1 or condition 2

Thus the following conditional would display an alert box message and prevent submission of the form if a text box called 'agebox' for a question about age is left blank or does not contain a number.

isNaN(), tests to see whether a value in the brackets is Not a Number. The condition will be true if letters or any other characters are contained in the box.

---

Form validation

Introduction

Using JavaScript, it is possible to check that data is in a suitable format, that any required questions have been answered, and that no questions or selections have been accidentally missed prior to submission. This page will provide an overview of the procedure for adding validation to check the data from common form elements. It is recommended that you review the 'Introduction to JavaScript' page and the section on 'simple validation' in particular before working through this page.

When deciding whether or not to add validation to a questionnaire, it is important to consider the effects it may have. Care must be taken when requiring answers to questions that participants may not wish to answer, as this is likely to lead to drop out. Requiring answers should generally only be considered where it is essential to the success of the questionnaire.

Rather than preventing submission of a questionnaire with incomplete answers, it may be appropriate to prompt the participant to check unanswered fields, giving the option of proceeding with the submission or going back to check. This may increase responses and is certainly more likely to deal with accidental omissions without leading to problems of requiring responses.

Client-side scripting via JavaScript has a great advantages over server-side processing when performing validation as it allows an instant response to any problems with the form submission. It is not necessary for the form information to be submitted to the server and then sent back; the processes happen on the user's computer.

However, It is also important to bear in mind that JavaScript may reduce the accessibility of the questionnaire. Users of text-only or screen-reading browsers are likely to be unable to access any functionality provided by JavaScript, and it is also possible that it may not be fully supported in the user's browser or that he or she may have chosen to deactivate it. For this reason, it is important to ensure that the use of the questionnaire does not depend on JavaScript, and to 'back up' any validation via JavaScript with server-side validation once the form is submitted. This is likely to enhance the security as well as the accessibility of the questionnaire. For more information, see the 'accessibility' and 'server-side validation' sections below.

Example of 'once-only' text box validation

The following is an example of a web form with simple validation applied to a text box. It prevents submission of the form unless 'M,' 'm,' 'F' or 'f' is entered for the question.

It is designed to allow submission the second time the submit button is pressed regardless of whether or not the question has been answered appropriately.

What is your gender (M or F)?

The HTML and JavaScript behind the form is as follows:

The body

Learning activity

1. When is the validation triggered?

2. What is the name of the function that performs the validation?

3. Two valid values can be returned to the form tag following validation routines. What are these values and what effect do they have?

Suggested answers

The validation script

The script makes use of a variable (initially set to 'false') which is used to check whether or not the user has attempted to submit the form previously (it is changed to 'true' on the first submission).

If this is the case (or if the form has been completed correctly the first time the submission is attempted) the submission is allowed to proceed ('true' is returned to the form).

Otherwise, the submission is blocked ('false' is returned to the form) and the variable is changed to 'true' to allow it to proceed next time.

The script is shown below with comments explaining each section of code.

It is common to add these comments to JavaScript code to provide an explanation of how it works. They are ignored by the browser, but can be viewed in the source code of the HTML document or the JavaScript file. Comments in JavaScript should be prefixed by two forward-slashes (//) to ensure that the browser ignores them.



In a situation where the researcher wishes to require an answer to the question and not allow submission at the second attempt, this could easily be done by removing the three references to the 'submitPressed' variable in the code (var submitPressed = false;, submitPressed == true ||, and submitPressed = true;).

Radio buttons

It is also possible to check that one of a group of radio buttons has been checked as in the following form.

How often do you use the internet?

everyday
2-3 days per week
4-5 days per week
6-7 days per week
less than once a week

This is made possible by the fact that all of the radio buttons have the same name and are thus automatically included in an array. This means that each of the buttons is given a number starting with zero. These numbers can be used to refer to each Check box using the following syntax:

where x is the number of the button and where form is replaced by the name and reference to the form (e.g. window.document.formname) which is passed into the function when it is called.

The HTML for the radio buttons is as follows:

The reference to the first button is:

while the reference to the last (the fifth) is:

Each radio button has a property checked which has a value true or false. This can be used to ascertain whether it has been selected (checked is true) or has not been selected (checked is false).

The section of the validation script that checks whether one of the buttons has been selected is as follows:

This displays the thank-you message and returns true to the form to allow submission to proceed in the following circumstances:

circumstances	code
button 1 has been selected:	form.often[0].checked == true
or:	||
button 2 has been selected:	form.often[1].checked == true
or:	||
button 3 has been selected:	form.often[2].checked == true
or:	||
button 4 has been selected:	form.often[3].checked == true
or:	||
button 5 has been selected:	form.often[4].checked == true

This can be simplified by looping through each of the boxes to check whether or not they have been selected, as follows:

This begins a loop which feeds the value of i into the conditional (if (form.often[i].checked == true))

The initial value of i is set to 0 (var i = 0;) and it is set to increase by one at the end of each loop (i++) until i is no longer less than the length of the array of Check boxes called often (i<form.often.length;) which in this case is five (there are five boxes).

This means that the conditional (if (form.often[i].checked == true)) is carried out five times with i replaced with 0, 1, 2, 3, and 4.

In each case, if the button has been selected, a variable questionAnswered is set to true.

This is followed by another conditional which displays the thank-you message and returns true to the form if questionAnswered is true.

The complete code is as follows:

Check boxes

Like radio buttons, a group of check boxes can be given the same name. In this case, they can be validated in the same way as radio buttons using the array which automatically numbers the boxes.

Which of the following do you regularly use the internet for?

E mail
Finding information about things to buy
Making purchases
Entertainment
Finding general information
Educational courses
Downloading music
Discussion boards
Real-time chat

The HTML for the Check boxes is as follows:

The Check boxes are given the same name (uses), but different values. When the form is submitted, the value of any checked box can be added to a variable. Each of the different values is added separated by a comma. Thus, for example, if the first three Check boxes are selected, the variable will be :

The code for checking that an option has been selected is exactly the same as that for the radio buttons, except that the name given to the Check boxes is added to the loop and conditionals, as follows:

This is a key advantage of using the loop to check each of the radio buttons or check boxes rather than including a conditional for every button or box. The same piece of code can be used for each group regardless of the number of boxes, with the only necessary modification being the name.

Select boxes

Select boxes can be validated in a similar way to radio buttons and Check boxes, as the options in a box are also counted in an array.

How would you rate your skill as an internet user?

Select an option ------------------- Very advanced Advanced Average Basic Very basic

The HTML for the select box is as follows:

It is given the name skill and each option is given an appropriate value. The options are counted in an array as follows:

where x is the number of the option (starting from 0) and where form is replaced by the name and reference to the form (e.g. window.document.formname) which is passed into the function when it is called.

Thus, the reference to the first option (labeled 'Select an option' and given the value 'not answered') is:

while the reference to the last (the seventh, labeled 'Very basic' and given the value 'very basic') is:

The first option provides the instruction to the user (Select an option), and the second acts as a divider between this and the options proper(-------------------). Thus, it can be assumed that if either of these options is selected, the question has not been answered.

It is therefore possible to check that a valid option has been selected through the following code:

Validating multiple form elements

As with the previous examples, the following questionnaire prevents the first submission of the form unless all the questions have been answered and allows submission the second time the submit button is pressed regardless of whether or not all the questions have been answered appropriately.

In this case, however, there is more than one form element, so it is helpful to inform the user of which question(s) need attention. This is done through delivery of an alert-box message when a problem is found.

1. What is your name?

2. How often do you use the internet?

everyday
2-3 days per week
4-5 days per week
6-7 days per week
less than once a week

This is done through the use of extra variables which are set to record which questions have not been answered and to add the question numbers to the alert box message.

The code for this is shown in the following learning activity.

Learning activity

Code

Comments

1. // Check question 1 - If the box is empty, the question has not been answered. In this case, add the question number to the message that will be delivered to the user to indicate that there are problems with certain questions.
2. // If both questions have been answered (q1Answered and q2Answered are both true) or if the user has already tried to submit once before (submitPressed is true), provide the user with a thank-you alert and return 'true' to the form to allow submission to proceed.
3. // If either or both of the questions has not been answered, deliver an alert box message to the user and include the variable 'alertMessage' which was used to collect the numbers of the unanswered questions.
4. // Change the submitPressed variable to true to allow submission to proceed next time and return 'false' to the form to prevent submission this time.
5. // If 'q2Answered' is still false, the question has not been answered, so add the question number to the message.
6. // If the box is not empty, the question has been answered, so the 'q1Answered' variable is changed to 'true'.
7. // Check question 2 - If any of the buttons have been selected, change 'q2Answered' variable to 'true'.
8. // Set variables
   // Variable for whether submit has been pressed
   // Variable for whether each question has been answered
   // Variable for the final alert box message.

Answers

A=8
B=1
C=6
D=7
E=5
F=2
G=3
H=4

Complete code:

Summary of the working of the code

The text box and radio button validation routines shown in the sections above are carried out, but where a question has been answered a variable for that question is set to true rather than the submission occurring immediately. Where a question has not been answered, the submission is not immediately blocked, but the number of that question is added to a variable which is then incorporated into an alert-box message.

Finally, both the question variables are checked and where they are found to be true (i.e. they have been answered) or where the form has been submitted once before (the form submission variable is found to be true) a thank-you message is delivered. If any question variable is false, the alert-box message is delivered and the form submission variable is changed to true.

Putting it all together

The following questionnaire about internet use incorporates all of the different validation elements outlined above:

1. What is your name?

2. How old are you?

years

3. What is your gender (M or F)?

4. How often do you use the internet?

everyday
2-3 days per week
4-5 days per week
6-7 days per week
less than once a week

5. Which of the following do you regularly use the internet for?
(You can select as many options as you like. If you would like to remove a selection you have made, select it again to deselect it).

E mail
Finding information about things to buy
Making purchases
Entertainment
Finding general information
Educational courses
Downloading music
Discussion boards
Real-time chat

6. How would you rate your skill as an internet user?

Select an option ------------------- Very advanced Advanced Average Basic Very basic

7. What, in your opinion, are the three main advantages of the internet?

A potential problem with the way the questionnaire is validated is that a single message is delivered to the user which includes all the questions requiring attention. This is not ideal as the user is unlikely to be able to remember which questions need to be checked in cases where there is more than one or two. Two more complex possible alternatives are shown below.

Alternative 1: One-by-one validation

In this case, each question is checked individually. If a question has not been answered or previously submitted, an alert message is displayed to the participant, and false is returned to the form to prevent submission. A variable for that question is also set to true so that submission will not be blocked if the participant resubmits without answering the question for a second time.

If the first question has been answered or has been submitted before, the second is checked. If this has been answered or previously submitted, the third is checked. This continues until all have been checked and a thank-you message is then delivered.

A potential problem with the way this questionnaire is validated is that it tends to overuse alert messages. Where a number of questions have not been answered, the participant may become frustrated by this, which could lead to increased drop-out rates. However, it is no more difficult to implement and adapt for different questionnaires than the first example.

Alternative 2: Displaying messages within the questionnaire

This alternative is similar to the first example in that all the questions are checked together. The questionnaire prevents the first submission of the form unless all the questions have been answered and allows submission the second time the submit button is pressed regardless of which questions may not have been answered appropriately.

Rather than delivering an alert-box message with the numbers of the questions that have not been answered correctly, however, a message is revealed next to the questions on the questionnaire itself.

This probably provides the most effective validation in terms of usability, but there may be problems for participants using older browsers (with version numbers lower than Netscape Navigator 5 or Internet Explorer 4) who may not be able to access the messages.

For this reason, an alert box message is included indicating that there is a problem with the answers. For users with a browser capable of displaying them, this is backed up with the messages indicating where the problems are. However, those who cannot access these messages are still informed of the reason for the failed submission, prompted to check their answers, and given the message that pressing the submit button a second time will allow it to proceed.

Thus, while the use of the messages adds to the functionality of the questionnaire, it does not prevent it from being usable for those who are unable to access it (see the 'Accessibility' section).

The messages are revealed using <div> and <span> tags in the HTML code with CSS and JavaScript. Implementing and adapting this method of presenting the results of validation is slightly more involved that the previous examples, but the validation routines are very similar to those of the first example.

Adapting the code

The complete HTML and JavaScript for each of the three questionnaires shown in this section can be seen below. The code can be saved, or copied and pasted into your text editor for adaption and use in questionnaires with different types and numbers of questions. There are explanatory comments in the code and some general notes on adaptation are as follows:

1. When removing questions, make sure that associated code and variables are also removed.
2. When adding validation to new questions, be sure to copy in full the associated code and variables from a question of the same type.
3. When adding form elements for new questions, give them a unique name and make sure that this is added correctly into the code copied from similar questions.
4. Similarly, make sure that new variable names are unique and added correctly into all relevant parts of the code.
5. Ensure that you have included the required punctuation, or the code may not run correctly. For example, make sure that functions are contained within curly brackets ({}), and that conditionals are within brackets, with actions resulting from conditionals in curly brackets. See the 'Introduction to JavaScript' section of this guide for further information if required.

Questionnaire 1: Alert-box message

Questionnaire 2: One-by-one validation

Questionnaire 3: Validation via messages within the questionnaire

Validating before submission

The following form applies validation routines before the submit button is pressed. For both questions, participants are prevented from selecting more than three options, and for question 2, they are also limited to entering '1', '2', or '3' in the text boxes.

Three different validation routines are carried out.

The first two routines are carried out independently of the submit button when participants are completing the questions. The first occurs as the result of an onclick event handler, when participants select a Check box. The second occurs as a result of an onblur event handler when participants click away from a text box. (see the 'Event handlers' section of the 'Introduction to JavaScript' for more information if necessary).

This type of validation ensures that problems are dealt with before participants attempt to submit and also serves to provide on-going instructions to participants attempting to complete the questions.

Finally, there is a function called by pressing the submit button. This checks that three options have been selected for the questions and delivers an alert message if this is not the case.

Each of the routines is explained in the following sections:

'onclick' validation

The validation routine for question 1 consists of a function which is called by the onclick event handler when participants select the Check boxes.

Each of the eleven Check boxes is given the same name (adjectives) which means that they are automatically added to an array from zero to ten. They are also given appropriate values so that when the form is submitted the value of checked boxes can be added to the adjectives variable. The onclick event handler is added to each which calls a function called count() and returns the result of this function to the Check box. If true is returned, the Check box is selected, and if false is returned, it is deselected. (This works in a similar way to returning true or false to a form when it is submitted). Thus, the HTML for the first and second Check boxes is:

When participants select a box, the function counts the number of checked boxes, returning false (deselecting the box) if three boxes have already been selected, and returning true allowing the box to remain selected) if fewer than three have been selected. The commented code is as follows:

'onblur' validation

The routine for question 2 consists of a function called check2() which is called by the onblur event handler when participants click away from a text box. The counting of the text boxes that have been filled in occurs in a similar way to the routine in question 1.

However, the text boxes cannot be given the same name, as it would not be possible to distinguish which ones have been chosen. Thus they cannot be counted in an array. Instead of this, it is possible to use the form.elements array to count the boxes. This is an array of all the form elements in a form. The first to appear is given the number zero (form.elements[0]) and the second is given the number one (form.elements[1]). This continues for all the elements in the form.

By counting how many elements come before the first text box in question 2, and counting how many text boxes there are, we can find the number of the boxes in this form.elements array and use this information in the validation routine. There are 11 Check boxes in question 1 (form.elements[0]) to (form.elements[10]) and there are 8 textboxes in question 2. Thus the first textbox in question 2 is the 12th in the form.elements array (form.elements[11]) and the last is the 20th (form.elements[19]).

This means that the routine needs to check the 12th to the 20th elements and count the ones that have been filled, preventing more than three from being filled. This is similar to the code in the routine for question 1. However, the number of the box in the element.array must be fed into the function as an argument so that the box that called the function can be identified.

Thus, there are two arguments in the function (the form reference and the number of the box in the array), and the HTML for the first two boxes is as follows:

and the function is begun and ended as follows:

The section of the function that counts the boxes is as follows:

This provides the facility of limiting the number of responses to three, but it does not limit what the contents of the boxes can be.

To do this, it is necessary to check that only the numbers 1, 2 and 3 have been entered in the boxes, and to ensure that these numbers have been entered only once.

Three variables are set to count the number of times that 1, 2 and 3 have been entered and if a box that calls the function is found to contain a number for the second time, the contents are deleted and a message delivered to the participant. This also occurs if any other content is inserted into the box.

The commented code for this section of the function is as follows:

'onSubmit' validation

This is the most straightforward of the functions, because the more involved validation activities have been carried out beforehand. All that has to be done is to check that three options have been chosen for each question. If this is the case, it can be assumed that the validation from the other functions has already ensured the correct number and format of responses has been provided.

The commented code is as follows:

The complete HTML and code is as follows:

Accessibility

Providing that submission of a questionnaire is not prevented in browsers without JavaScript, validation routines will not prevent a questionnaire from being accessible as they will simply not work. Though this may have an impact on the quality of the data received from a non-JavaScript browser (e.g. if participants using these browsers accidentally miss questions or answer them in an inappropriate format), it will not prevent the questionnaire from being fully usable by these participants.

However, it may be beneficial to perform server-side validation as a 'back up' to the client-side JavaScript validation. Because server-side processing occurs before the HTML page is delivered to the browser, it is not dependent on the technology available on the client computer. Although this is a slower method of checking the information, it is likely to be necessary only where JavaScript is not available and thus where any problems with the data have not been dealt with before the form is sent. This kind of 'back-up' validation also has security benefits where users may have deactivated JavaScript in the browser to avoid validation for any malicious reasons.

Server-side validation

Methods of validating in any of the main server-side languages are basically similar to those using JavaScript, involving conditionals to check the contents or selection of form elements and carrying out different actions accordingly (e.g. processing results by emailing them or by adding them to a database, or preventing processing and returning a message to the participant prompting them to check and resubmit).

An overview of server-side technologies and their use in gathering data via questionnaires can be found in the 'Server-side processing 1: Introduction & E-mailing results' sections of this guide.

Depending on the technology used, the following links may provide a useful source of information, tutorials and examples on how to add server-side validation.

PHP/MySQL

A PHP tutorial which covers a range of different validation activities, leading to an example of a complete form validated via PHP.
http://www.codewalkers.com/c/a/Miscellaneous/Form-and-Spelling-Validation/

Sklar, C. (2004) Learning PHP. Sebastapol, CA: O'Reilly.
Chapter 6: Making web forms.
http://www.oreilly.com/catalog/learnphp5/

Coggeshall, J. (2005) PHP Unleashed. Indianapolis: SAMS.
Chapter 4: Working with Forms in PHP.
Chapter 5: Advanced Form Techniques.
http://www.samspublishing.com/title/067232511X

ASP.NET

Microsoft's ASP.NET framework offers a number of ready-made web controls designed to carry out server-side and, where available, client-side validation of web forms. These include controls that check required fields have been completed, that check that data in particular ranges or patterns has been entered (e.g. in the format of a telephone or credit-card number), and that compare data from one form element for consistency with that from another.

A useful tutorial on how these controls work with code examples is available from the ASP.NET Quickstart tutorials
http://www.asp.net/QuickStart/aspnet/doc/validation/default.aspx

A step-by-step guide is also available from the 4guysfromrolla.com site:
http://www.4guysfromrolla.com/webtech/090200-1.shtml

Mitchell, S. (2003) Teach yourself ASP.NET. Indianapolis: SAMS.
Chapter 12. Validating User Input with Validation Controls.
http://www.samspublishing.com/title/0672325438#

Walther, S. (2003) ASP.NET. Unleashed. Indianapolis: SAMS.
Chapter 2: Building Forms with Web Server Controls.
Chapter 3: Performing Form Validation with Validation Controls.
http://www.samspublishing.com/title/0672325438#

PERL/CGI

An introductory tutorial for adding validation using PERL.
http://www.elated.com/tutorials/programming/perl_cgi/ form_validation/

Guelich, S., Gundavaram, S. and Birznieks, G. (2000) CGI Programming with Perl. Sebastapol, CA: O'Reilly.
Chapter 4: Forms and CGI;
Chapter 8: Security (available as a sample chapter).
http://www.oreilly.com/catalog/cgi2/toc.html

---

Key design issues

Introduction

This section aims to provide the necessary skills to ensure that good design practices are followed in the creation of an online questionnaire. Alongside other aspects, it provides the supporting technical information for the design practices outlined in the design section of the online questionnaires module. The following information is covered:

• Deciding whether to present a questionnaire as a one-page web form or as one that spans multiple pages;
• Implementing a progress bar in multiple-page questionnaires;
• Delivering instructions via pop-up windows and alert boxes;
• Ensuring accessibility;
• Ensuring consistency: Browser issues, screen size, and the use of colour and font.

---

Gathering information about participants

Introduction

Beyond the survey data, there are a number of possibilities for the collection of information that may be of use to the researcher.

This page will describe how information can be stored in hidden form fields to be submitted alongside the data from visible form fields.

It will also provide an overview of how JavaScript and a technology called 'server-side includes' can be used to collect the following:

• IP addresses and date and time information including approximate completion time which may be useful for security and identifying and removing anomalous submissions.
• The URL of the referring page (the page which contained the link the participant followed to reach the questionnaire) which may be useful in providing information about the success of the forms of advertising used to elicit participation.
• Information about the user's computer and browser such as whether JavaScript and cookies were enabled, the screen-size of the monitor used, or which type and version of browser was used to access the questionnaire. This information may prove valuable in determining whether some features such as validation were available when the participant completed the questionnaire. It is also likely to be useful in gaining an overview of the technologies available to respondents. If it becomes clear, for example, that older or less common browsers are being used to access the questionnaire, it can be tested on these browsers and redesigned if necessary.

Finally, it will outline how cookies can be saved onto a participant's computer so that action can be taken if the same computer is used to access the questionnaire for a second time.

Adding data to hidden form fields

As their name suggests, hidden form fields and their contents are not displayed in the browser. They can thus be used to submit information along with the form data which it is not necessary or desirable to display. It should be remembered, however, that a participant can access the information in a hidden form field simply by opting to view the HTML source code for the page.

Adding information to a form in a hidden form field is straightforward. The code is as follows:

When the form is submitted, the contents of the form field (the value) are added alongside the data from visible form fields. Thus, for example, if more than one version of a questionnaire is released, the version number can be added to the form as follows:

When data is submitted, it would thus be clear which version of the questionnaire was completed.

Client-side or Server-side information gathering

Where the ability to gather user information is desired as an 'extra' in cases where the researcher is able to accept that it may not be possible to gather information from all participants, the use of client-side information gathering using JavaScript is ideal as it allows a straightforward way of collecting a wide range of information. It does not matter what type of server the questionnaire is hosted on as the processing that collects the information and adds it to the form data is carried out on the user's computer.

In cases where the gathering of user information is essential to a study, however, it is recommended that the process is carried out using server-side processing which will operate regardless of the technologies available on the client computer. This is because JavaScript may not be available to all browsers and because users may choose to disable JavaScript on their machines.

A further advantage of using server-side processing is that it is more likely to allow accuracy and consistency of information to be achieved. For example, JavaScript relies on the accuracy of the time and date on the user's computer which may be open to variation across different machines. Server-side technologies, however, take this from a single source (the server). It is relatively straightforward to gather a range of information using ASP.NET or PHP, depending on the server technology used. (see the 'Server-side processing' sections for more information on these technologies).

For researchers with a server capable of supporting them, Server-Side Includes (SSI) provide perhaps the most straightforward and easily-implemented way of gathering user information through server-side processes. This page will focus on the use of this technology alongside JavaScript.

Data gathering via Server-Side includes (SSI)

Server-Side Includes are designed to allow small pieces of a web page to be dynamically generated. They are frequently used in web pages to add information such as the date the page was last modified or the current time and date. SSI pages are generally marked with an .shtml suffix which signals to the server that any SSI directives should be processed server-side.

Where the questionnaire is hosted on a server that supports them, they offer a straightforward and easily-implemented method of collecting user information. The apache web server can easily be configured to allow them to be used and simple measures can be taken to ensure their use does not lead to any vulnerability in terms of security. The following tutorial describes how this can be done and provides a general overview of SSI.

http://httpd.apache.org/docs/1.3/howto/ssi.html"

NB. Server-Side Includes are not supported by windows-based Microsoft server technologies for which ASP.NET is likely to provide the best alternative.

The basic structure of an SSI directive is as follows:

For example, if the following SSI directive is placed in a web page on an SSI compatible server, it will automatically be replaced by the time and date that the page was last modified.

The var="LAST_MODIFIED" section sets a standard 'environment variable' which, in this case, is the time and date of the last modification. The #echo command then writes this variable to the web page, effectively replacing the directive with the value of the variable. The whole directive is placed within HTML comments <!-- --> so that it will be ignored by the browser if the server fails to process it correctly.

By placing SSI directives in hidden text boxes, information can be collected and submitted alongside the form without interfering with the working of the questionnaire. The following information can be easily gathered using SSI directives:

Date and time

The date and time that the questionnaire was accessed can be established using the following SSI directive:

If this is placed in a web page on an SSI compatible server, it will be replaced by the time and date in the format specified by the default settings of the server. This may be as follows:

Day, Date, Time, Time zone, e.g.

Saturday, 31-Dec-2005 23:59:50 GMT

To modify the format of the date, the following SSI directive can be placed immediately before <!--#echo var="DATE_LOCAL" -->.

where value is replaced by a series of SSI time codes such as the following:

Code	Description	Example
%a	Abbreviated day of the week	Sat
%A	Full day of week	Saturday
%b	Abbreviated month name	Dec
%B	Full month name	December
%D	Numerical date (likely to be expressed in the Month/Day/Year format)	12/31/05
%d	Day as digit	31
%m	Month as digit	12
%H	Hour (24-Hour format)	23
%I	Hour (12-Hour format)	11
%M	Minutes	59
%S	Seconds	50
%p	AM or PM	PM
%T	24-Hour time	23:59:50
%y	2-digit year	05
%Y	4-digit year	2005
%B	Full month name	December

Thus the following directives

display the date and time as follows:

This information can be added to hidden form elements for submission with the form data as follows:

Browser information

It is possible to use SSI directives to gather information about the browser which is being used to access the questionnaire. As stated in the introduction, this information may prove valuable in allowing an overview to the gained of the technologies available to respondents. If it becomes clear, for example, that older or less common browsers are being used to access the questionnaire, it can be tested on these browsers and redesigned if necessary.

Information about browser type and version can be established using the following directive:

When placed in a web page on an SSI compatible server, it will be replaced by a string of information about the browser's name, version, platform, and language settings. Some of the information may be confusing especially software/version information which usually begins the string and which may suggest that an older version is being used. Information from some browsers may also be more extensive than from others. However, the type and version can usually be established successfully. Some examples of the results of the directive when the most common browsers are used are as follows, with the key browser information highlighted in bold:

Internet Explorer 6

Firefox 1.0.4

Netscape 7.2:

Opera 7.54

If you wish to decipher any more unusual strings of information that may be returned, it may be necessary to refer to explanatory lists of user agents. The following is a very extensive list of browser types and typical user agent strings that they return:

http://www.zytrax.com/tech/web/browser_ids.htm

A second SSI directive which offers information about the participant's browser is as follows:

This provides a list of the types of information the client will accept from the server. These are expressed as a list of MIME types in a type/acceptable subtype format as in the following example:

The */* syntax indicates that the client machine will accept all types of information.

A final directive which can be used to collect browser information is as follows:

This provides the language(s) that are defined as being the user's preferred language(s), as in the following example which specifies that Portuguese (Brazilian) and English (British) are the preferred languages stated by the client machine:

User identification

When placed in a web page on an SSI compatible server, the following directive will be replaced by the IP address of the client computer accessing the page.

The IP address is a group of four numbers separated by full stops (e.g. 81.77.39.115) which are associated with a particular computer or server. Collecting the IP address of the client computer that the participant used to access the questionnaire is worthwhile as repeat submissions from the same IP address within a short space of time may indicate multiple submission from the same participant and can be investigated further.

However, the use of IP addresses as the sole means of identifying multiple submissions from the same machine is unreliable as the IP address of a computer which accesses the internet via an internet-service provider is likely to be different each time it is connected to the internet. Possible multiple submissions are thus only likely to be traceable if they are carried out in a single internet session. Even when there is only a short space of time between multiple submissions from the same IP address, it may be difficult to establish whether they have come from the same user or from different users of shared computers or of computers on a shared server with the same IP address.

The use of cookies to identify particular computers offers potential for more reliable user identification, but this remains limited (see section below).

For truly effective access control, a server-side system of access via password is likely to be needed so that only invited participants with a password can access the questionnaire (see the 'Server-side processing 2' section of this technical guide.

The referring page

The following directive can be used to display the URL of the page from which a link to the questionnaire was followed:

If the participant reached the questionnaire directly without following a link, there will be no referrer and the directive will be replaced by the following:

Data gathering via JavaScript

It is also possible to use JavaScript to collect information about the user's computer, date and time information, and the referring link (the link that the participant followed to reach the questionnaire). The following information can be gathered:

Name of browser:

Version of browser:

Browser platform:

Screen size:

Cookies enabled? (true or false)

Referring link:

Date:

Time started (measured from when the page is loaded)

Time ended (added when the form is submitted)

Completion time

In a questionnaire, this information could be placed within hidden form elements and submitted alongside the questionnaire data.

NB. It should be remembered that time information is measured according to the clock settings on the client machine which may not be accurate and which may mean that data is subject to time-zone differences.

However, the completion time is likely to be accurate as the start and end times will be taken from the same clock settings.

The form

To collect this information, hidden form fields are given suitable names and placed within the questionnaire form which is also given a suitable name. The information is added to the hidden form fields through the action of two functions called startForm() and endTime().

The startForm() function adds the relevant information to the first eight hidden form fields when the form loads. The function is called by the onload event handler when the body of the HTML document loads into the browser.

The endForm() function adds the time of the questionnaire submission and the total completion time when the form is submitted. It is called by the onSubmit event handler in the form tag.

The HTML is shown below.

Data collection

As you will see, the data collection functions take advantage of the following JavaScript objects and properties to collect the information:

Object&property	Description	Example
navigator.appName	Returns the name of the browser being used to access the page.	Microsoft Internet Explorer
navigator.appVersion	Returns the version of the browser.	4.0 (compatible; MSIE 6.0; Windows NT 5.1)
navigator.platform	Returns the browser's platform or operating system.	Win32
navigator.cookieEnabled	Returns a value of true if cookies are enabled and false if they are disabled.	true
screen.width	returns the width in pixels of the user's screen.	1024
screen.height	returns the height in pixels of the user's screen.	768
window.document.referrer	returns the URL of the page from which the user navigated to the current page. Returns an empty string if there is no referring link.	http:\\www.le.ac.uk
date.getDate()	Returns the day of the month	25
date.getMonth()	Return the month of the year as a number from 0 (January) to 11 (December)	11
date.getFullYear()	Returns the year (may not work in older browsers)	2005
date.getHours()	Returns the hour of the day (24-Hour format)	23
date.getMinutes()	Returns the minute of the hour	59
date.getSeconds()	Returns the second of the minute	50
date.getTime()	Returns the current time in milliseconds	112473628262

The information is automatically returned when the objects and properties are included in the code.

The JavaScript functions

The code for the first function is as follows:

The code for the second function is as follows:

The complete HTML and code is shown below. There are also instructions on how to incorporate the hidden form fields and code into your own questionnaires.

Combining data gathering with validation

If you are using validation code in a function called by the onSubmit event handler, the endForm function cannot be called from within the form at the same time. Instead, it should be called from within the validation function itself.

If the validation routine finds that the form is ready to be submitted it will return true to the form to allow submission to proceed (see the 'Form validation' section). By adding endForm() to call the function before the return true syntax, the hidden form fields will be changed before the final submission.

The final lines of the section of the validation code that deals with successfully completed forms will thus be

rather than simply

The following HTML and code can be used to create a web form with the information gathering functions combined with
validation routines:

Dealing with non-JavaScript browsers

Providing that testing is carried out to ensure that the JavaScript used will not interfere with the completion and submission of the questionnaire in non-JavaScript browsers, there will be no problems for respondents without JavaScript. The hidden form fields will simply be returned with empty values.

A simple way of gathering the information that JavaScript was not available (and verifying that empty values are caused by this rather than by any problems with the form or the scripting) is to include a hidden form field enclosed in <noscript></noscript> tags as follows.

This will only add the code within the tags in cases where JavaScript is not available so that the value will only be sent along with the form if this is the case.

Cookies

Setting a cookie to identify when a computer has already been used to submit a questionnaire is more reliable than using IP addresses. When a user submits the questionnaire, a cookie can be stored on the hard drive of the computer which will identify the fact that it has been used to make a submission. Should the same computer be used to access the questionnaire a second time, action can be taken such as delivering a message or redirecting the user.

However, problems remain in the use of this method to prevent multiple submission as users can opt to reject cookies or delete them from their hard drive. These examples also depend on the use of JavaScript which can be disabled in the browser. It should also be remembered that different participants may be using the same machine to access the questionnaire.

For truly effective access control, a system of access via password is likely to be needed so that only invited participants with access to a password can participate (see the 'Server-side processing' section of this technical guide).

Where the researcher does not wish to limit access in this way, however, the use of cookies is likely to be helpful in highlighting or preventing multiple submissions as the majority of users are unlikely to have disabled cookies on their machines. The process of identifying when a computer has already been used to submit a questionnaire using cookies is straightforward.

Examples

In the following examples, a pop-up window with a questionnaire is opened when the user clicks on a link. When the page is opened, JavaScript is used to check whether or not the computer has a cookie called "Multiple" saved on it. If it does not, it is assumed that it is the first time that the computer has been used to access the questionnaire. A cookie called "Multiple" is then saved to ensure that the first check will establish that the computer has been used to access the questionnaire if it is subsequently used again.

Each of the examples carries out a different action if the cookie called "Multiple" is found. The first displays an alert-box message. The second reveals the same message at the top of the page. The third redirects the user to a new page which explains that the computer has been used to access the questionnaire before and provides a link to a different version of the questionnaire.

Explanation

The JavaScript code for the first example is as follows:

The first function checkCookie() checks whether or not the cookie called "multiple" has been previously saved to the computer's hard drive. If it has, the alert message is delivered. If not, the setCookie("multiple", "yes", "") function is called. This saves a cookie called "multiple" with the value "yes", and sets the expiry date for the cookie to 1 year from the current date (1000*60*60*24*365) which is the number of hours (1000*60*60) multiplied by the hours in a day and the days in a year (24*365).

The checkCookie() function is then called when the body of the page loads using the onload event handler:

The code for the other examples is similar, but the action that occurs when the cookie called "multiple" is found is different.

For the second example, a function called showMessage('multiple')is called which shows the hidden layer called 'multiple' to reveal the message at the top of the page. The setCookie() function is the same, but the checkCookie() function changes as follows:

The following functions are also added to provide the functionality required to reveal the message at the top of the questionnaire.

For the third example, a the URL of the page is changed using the code window.document.location="newpage.htm"; where "newpage.htm" is the link to the page called when the cookie called "Multiple" is found. The setCookie() function is the same, but the checkCookie() function changes as follows:

This URL "newpage.htm" is automatically loaded if the cookie is found. This page includes a link to a different version of the questionnaire which can be submitted using a hidden form field to alert the researcher that the computer had already been used to complete the questionnaire and prompt him/her to check further (see the 'Adding data to hidden form fields' section above).

Complete code

The complete HTML and JavaScript for each of the three examples shown in this section can be seen below. The code can be saved, or copied and pasted into your text editor.

Example 1: An alert box message

Example 2: A message appears at the top of the page

Example 3: The user is redirected to another page



---

Server-side processing

Introduction

Once a questionnaire has been designed and created, it is necessary to make it available online and add a means of collecting and processing the results. Doing this successfully requires the addition of server-side processes.

This page is designed to provide you with an overview of server-side processing technologies. It will explain what server-side processing is and how it can be used to collect data from questionnaires. It will cover the following areas:

• The nature of server-side processing and how it differs from client-side processing;
• How server-side and client side processing interact when a questionnaire is requested and submitted;
• An overview of the options for hosting the questionnaire on a server, which will be needed to make the questionnaire available online;
• An introduction to some of the key technologies required and the options available:
  • Server software: Apache and Microsoft;
  • Server-side processing software: CGI, ASP.NET, PHP, ColdFusion and JSP;
  • Database software: MySQL and SQL Server;
• How to set up a test-server on a personal computer to use when developing using these technologies;
• An overview of how WYSIWYG web editors and other software can be used to help with the development;
• An outline of common server-side processing tasks that are carried out to process a questionnaire;
• Links to key resources on each of the server-side processing technologies.

Server-side v client-side processing

To understand how server-side processing works and how it differs to client-side processing, it is useful to firstly consider what happens when a user successfully calls a web page. The main steps can be seen as follows:

1. The user types the URL of the webpage into the browser's location bar or clicks on a link. This URL acts as a reference to the computer on which the webpage is held (the server) and the location of the file (its name and position inside the file tree).
2. The browser sends a message over the internet to the server computer requesting the webpage.
3. Server software (e.g. Apache) on the server computer receives the message.
4. The URL is correct and up-to-date, and there are no problems with the server computer, so the software is able to locate the file in the computer's hard drive.
5. The software sends a copy of the file back to the browser on the requesting computer (the client).
6. The browser displays the page according to the HTML and CSS instructions it contains.
7. Alternatively, if there is a problem with the server or the URL is incorrect, an error message is displayed by the browser on the client machine.

This can be shown diagrammatically as follows:

The files held on the server are 'static' which means that all users who request the webpage will be delivered exactly the same content from the hard drive. It cannot be altered unless the developer makes a change to the files and saves them again.

The way that client-side and server-side processing works inside the interaction between client and server can be seen below. This is followed by an overview of the advantages and disadvantages of each.

Client-side processing

Where client-side processing is used, effects can be added which may change the look or content of the webpage. For example, JavaScript can be added to check for the presence of a cookie indicating that a user has visited the site before. If a cookie is found, an alternative message can be displayed. Alternatively, users can display or hide content such as help windows or menu bars by clicking on buttons or links. However, the content delivered by the server is always the same. Like the CSS and/or HTML it is included with, the JavaScript is 'static' and is delivered within a static page. The processing that takes place occurs through instructions to the browser on the client machine. This can be seen in the following diagram:



Server-side processing

Unlike the case of static websites, a typical use for server-side processing is to deliver 'dynamic' content to users according to choices they make before requesting the page. Thus, two visits to the same page may result in completely different content being delivered. For example, users of a bookstore site may search for particular types of books and be delivered only the results that are relevant to the search. Alternatively, server-side processing can be used to detect information about users' computers such as screen size, type of browser or whether JavaScript is enabled, and then to send out a different page accordingly. The client computer receives the webpage from the server in exactly the same way as described above, but processing takes places to create the content of a particular page before it is sent back to the client. This may include interaction with a database to 'collect' content for display. This can be seen in the following diagram:

Advantages and disadvantages

Advantages of server-side processing

The main advantage of server-side processing is that it is not dependent on the client computer. It will take place regardless of the type of browser used as it occurs on the server before the page is delivered. This means that the use of server-side processing is not likely to reduce the accessibility of a webpage as the functionalities it provides should work on all platforms and with any browser. On the other hand, client-side processing depends on the availability of technologies on the client computer such as a browser which is able to process JavaScript and which is up-to-date enough to deal with the JavaScript version used. Most browsers also provide users with an option to deactivate JavaScript. Where the functionality provided by the processing is essential, server-side processing is thus the only viable option.

Server-side processing also has related security advantages in that it occurs before the page is delivered and is thus not 'visible' to the end-user, who is only given the results of the processing. Providing security measures are followed to prevent hacking of the server, these processes cannot be accessed. However, client-side processes must be delivered to the user along with the CSS and/or HTML , images and other files that make up the web page. They can thus be accessed by the user (and potentially misused or manipulated) simply by viewing the source code. Where password control is required, for example, server-side processing is the only viable option as the list of acceptable passwords and the process of checking that a valid password has been entered occurs on the server. If the process was carried out client-side, viewing the source code would immediately reveal this to the user.

Disadvantages of server-side processing

The main disadvantage of server-side processing is that it has the potential to reduce the speed and efficiency of a webpage. Every time a process needs to be carried out based on user input or actions, a call must be made to the server and the results delivered back to the client. In cases where the functionalities provided by processing are not essential and where there are no security implications, client-side processing can provide a faster and more seamless experience for the user. Thus, for example, the drop-down headings used by this site are activated client-side which adds an 'extra' functionality to the site but which is not essential to accessing the information the headings contain. Using server-side processing for such features would be impractical and slow, and if the user does not have a browser with client-side functionalities this will not affect accessibility.

Server-side processing also obviously requires access to a server which can deal with the processing technology chosen, along with adequate permissions to add scripts and/or databases to this server. Where this is not available, it may be necessary to use client-side processing, or to rethink whether the functionality should be added.

Server and Client-side processing within a questionnaire

In delivering, receiving and processing a questionnaire, the main steps in the interaction between server and client are typically as follows:

• The browser on the client computer requests the webpage containing the questionnaire from the server, receives the questionnaire and displays it on the page (see details in stages 1-6 above).
• Extra information such as the date and time, and details about the participant's computer are collected and placed in hidden form fields using client-side and/or server-side processes (see 'collecting participant information'.
• The participant completes and submits the questionnaire and if JavaScript is available in the participant's computer, client-side validation occurs to check the responses (see 'Form validation').
• If JavaScript is available and there are problems with the form, submission is prevented and a message is displayed to highlight what the problems were (return to step 3).
• If JavaScript is deactivated in the participant's computer or the answers have been entered correctly, submission goes ahead and the contents of the form fields in the questionnaire are sent to the server (along with any extra information in the hidden form fields).
• Server-side validation routines are carried out to check for problems with the form.
• If the answers have been entered correctly, a thank-you message is displayed and server-side processes are carried out to add the answers to a database or text-file, and/or include them in an email to be sent to the researcher.
• If the server-side validation reveals a problem with the form, it is returned to the participant with the answers preserved and messages to highlight what the problems were. The participant corrects the problems (if so inclined) and resubmits (return to step 3).

Both server and client-side processing are used to process the questionnaire. Client-side processing is used for validation as it will provide improved usability and speed to those who have JavaScript available on their computers, but will not reduce accessibility for those who do not. Server-side processing is used to deal with the results and also to provide 'back-up' validation where JavaScript is unavailable or where users may have deactivated it to avoid validation.

Hosting options

A number of technologies are available to add server-side processing functionalities to web pages, but whichever technology is chosen, the questionnaire will need to be uploaded to a server along with the required databases and/or scripts. The choice of which technology to use is likely to depend primarily on the type of server and software available and the level of access the researcher has to this server.

The following three hosting options are likely to be available to researchers who wish to create and upload their own questionnaires:

Access to server space on an institution's server

For researchers working within an institution such as a university, a government department, an NHS trust, or a charitable organisation, it may be possible to upload the questionnaire to the institution's server. In this case it will be necessary to find out what type of processing and database software can be used, and whether there are any limitations or conditions on how they can be used. It may be that certain types of scripts are not allowed or that time is needed for computer services to check any scripts before they are uploaded. In some cases, access to the server may only be possible if standard procedures for implementing web forms are followed. For a questionnaire with 'standard' requirements, this should not be a problem but it may be necessary to check issues such as whether the results can be accessed in the required format or whether they can be emailed, automatically added to a database, or both.

Use of a commercial internet hosting service

If a researcher does not have access to a server or if the level of control over what can be done and how is not adequate, it may be necessary to use a commercial hosting service. There is a huge range of options available at a range of prices. There are many free services available, but access to server-side processing capabilities and a database is likely to only be available through services which charge. If a free service is found that seems to offer the required functionalities it is also important to check whether advertisements are included and, if so, whether this is acceptable.

Services that charge can range from relatively inexpensive options which run a number of websites on a single server, to more expensive options with servers dedicated to a particular customer and frequently targeted at the business world. When choosing a provider, it is important to be clear on what the requirements are in terms of file space and available features to make comparison easier and to find a good value provider. It is also important to be aware that there may be limits of the capabilities that are offered and that, for example, some services may only allow standard scripts to be used, rather than allowing users to upload their own scripts. Depending on what is required, this may not be a problem, but it important to check when deciding which service to use. Asking for recommendations from friends and colleagues who use a hosting service, or checking review sites on the internet may help in finding a suitable service.

Use of a personal web server

If the researcher has a broadband-connected computer which has a permanent IP address and which is permanently connected to the internet, it may be possible to use the computer as a server on which to host the questionnaire. This will allow complete freedom over the technologies used and the server-side processing added and may prove to be a suitable solution for researchers with high-level system administration and scripting skills who wish to create a questionnaire with advanced functionalities. However, for most questionnaires, this is unlikely to be needed. Running a pubic website from a personal server is also a difficult task and is not recommended for those without the knowledge and experience to ensure that the server is set-up properly, has adequate disc-space to deal with the traffic received, and is secure. For a questionnaire hosted in this way, it will also be necessary to ensure that the data collected is archived regularly and held securely. If hackers find a way to access the server, not only will the questionnaire data be potentially compromised, but the server could then also be used to attack other servers over the internet.

Use of a personal web server

When choosing a hosting option, it is important to consider the URL the questionnaire will have when it is made publicly available. It may be necessary to choose and acquire a specific domain name for the questionnaire. Information about domain names is provided below.

If an institution's server is used, the URL of the questionnaire is likely to be within the file tree of the institution and/or department's website. Thus, it will have a URL which automatically includes a reference to the institution, such as the following:

This is likely to enhance participants' view of the legitimacy of the research.

If a commercial internet hosting service is used, many hosting services offer the possibility of having a site name as a sub site within the host's own domain name. In this case, the URL would be something like:

In either case, if the researcher wishes to have a specific URL for the questionnaire, it will be necessary to pay for a domain name under which the questionnaire can be made available. It will also be necessary to acquire a domain name if a personal server is used so that the questionnaire can be made available online through its own URL.

Typically domain names are registered for 1-2 years for a registration fee which gives the holder sole rights to use the name. This is done through registry services, such as Nominet (http://www.nominet.org.uk/), which is the registry for UK domain names. The site includes a facility to search for 'unclaimed' domain names which can then be registered. Most hosting company sites also include this facility and offer to register domain names on their clients' behalf either as part of a hosting package or as a stand-alone service.

Once the domain name has been acquired, it is possible for the hosting server to be set to deliver the questionnaire in response to requests to this domain over the internet. This will make it possible for the questionnaire to have a bespoke URL, e.g:

Where the researcher is affiliated to an institution but the questionnaire is not hosted on the institution's server, however, adding a link to the researcher's page on the institution's website and including a graphic of the institution logo is likely to be necessary for research legitimacy.

An informative, though perhaps not entirely impartial, introduction to hosting is available on the W3Schools website at the following address:

http://www.w3schools.com/ hosting/default.asp

Server software

The server software handles requests for webpages from the server and also handles the interaction with server-side processing technologies and databases. In many cases, the choice of which server-side technology can be used depends on the server software that is installed. This, in turn, often depends on which operating system is in use on the computer (e.g. windows or linux). The most popular server software in use on the internet is Apache which is a free open-source option which can be used on both operating systems. Microsoft server software is also a commonly-used example, available for use on the Windows operating system and other server software is also available. Most hosts are likely to use one of these two options, though other server software is available. It is likely to be important to find out which operating system and server software are used, so that the researcher can set up a similar development environment on a personal computer to create and test the questionnaire before uploading it. Where a researcher wishes to use a particular type of software this will also be a key consideration when choosing a hosting service.

Server-side technologies

A number of technologies are available to allow server-side processing to be added to web pages. Some of the technologies are open-source and freely available for both development on a local computer and for use with servers to host public websites. The proprietary technologies are frequently also available free of charge as 'development' versions which can only be run on local machines. However, they can be expensive to buy where they are to be used with servers to host open websites. Where a researcher wishes to use this software, it will be necessary to check that it is available on the hosting server.

It is necessary to find out which operating system and server software is used by the host, and to find out which server-side processing technologies are supported. This will allow the decision on which technology to use to develop the questionnaire to be made. Where a researcher wishes to use a particular technology, it will also allow a hosting service offering this technology to be chosen. Commonly-used examples of server-side processing technologies are introduced below, and links to the official websites for each are also given.

CGI

CGI (Common Gateway Interface) is a set of rules for interaction between a server and a server-side program rather than a scripting language. Typically PERL is the language used to develop scripts for use with CGI. CGI is the oldest server-side processing technology available on the internet, and though it has largely been superceded by more efficient alternatives, it remains a popular choice. One of the key advantages of CGI is that ready-made scripts are often available online which may provide all the functionalities required to process a questionnaire without the need to develop programming skills.

http://www.w3.org/CGI/

PHP

A freely-available open-source server-side scripting language which can be downloaded and installed to allow the addition of server-side processing capabilities to web pages. Rather than existing separately from an HTML document, PHP scripts are embedded into web pages and are thus more efficient. PHP is designed to work simply and easily with database technologies, and it is frequently used in combination with the open-source database software MySQL. It is generally installed as an Apache module so that the Apache server software is effectively extended to include PHP functionality for the optimum performance. It can also be used with Microsoft servers.

http://www.php.net/

Microsoft ASP/ASP.NET

ASP is a framework developed by Microsoft for providing server-side processing capabilities and database functionalities which has largely superceded by a more recent version, ASP.NET (though ASP remains widely used at the time of writing and a wide range of resources are still available on the internet to help developers who use ASP). ASP.NET makes use of ready-made web controls to allow functionalities such as straightforward database integration or standard form validation routines to be added to web pages. The use of ASP.NET typically requires the use of a Microsoft server and operating system. Free downloads of suitable server software to allow pages to be developed and tested on a local machine are usually available, along with free development tools such as a basic version of the Visual Web Developer or the free WYSIWYG Web Matrix software.

http://www.asp.net/

Macromedia ColdFusion

ColdFusion allows server-side processes to be added to webpages through the inclusion of ColdFusion Markup Language, a scripting language consisting of a range of tags. These tags effectively allow common server-side tasks such as sending emails or working with databases to be created through the addition of single tags, and it is often considered to be a relatively straightforward technology to learn for those with some understanding of HTML. ColdFusion can be used on a wide range of servers, but the software is less commonly used than some of the other server-side technologies. It is proprietary to Macromedia and is only available free of charge as a development version which can only be used on a local machine or for a limited trial period in the case of the full software.

http://www.macromedia.com/software/coldfusion/

JavaServer Pages (JSP)

Like PHP, ASP.NET and ColdFusion, JavaServer Pages consist of code added to the HTML document. In this case, Java code is embedded in the document which is activated when the page is requested. The use of JSP depends on downloading the appropriate software, namely the Java Development Kit and a JSP/Servlet engine such as Tomcat.

http://java.sun.com/products/jsp/

The 'Resources' section below contains references and links to introductory information and tutorials on the use of these technologies, and to resources on the use of these technologies to perform common questionnaire processing tasks.

Database software

Where the intention is to use server-side processing technology in combination with databases it will be necessary to choose an appropriate example of database software. As with the server-side technology, a major influence on this choice is likely to be the type of database available on the hosting server, though where a researcher wishes to use a particular type of software, this will be one of the key issues in selecting a service provider.

A wide range of database software is available that can be integrated with server-side processing. The high-end databases such as Oracle, Informix or Sybase may be a suitable solution for complex research projects with adequate funds available for the purchase. However, in most cases, the two most common options are likely to be Microsoft's SQL server for use with ASP.NET, or MySQL for use with the other server-side technologies and with PHP in particular.

Setting up a development environment

Once it has been established what technologies are to be used, it is possible to download, install and configure the software needed to develop and test the questionnaire. This process will be different depending on the technologies chosen, but will typically involve the following stages:

1. Download/purchase and install the server software, following the installation instructions provided.
2. Test that the server is working correctly on the local machine. Some server software (e.g. Apache) will include a test page with the download. This will be saved in the root of the directory used by the server to hold the webpages which it will deliver. In the case of Apache, this will typically be the htdocs directory in the Apache program files on the hard drive (e.g. C:\Program Files\Apache Group\Apache2\htdocs). If no test page is available with a particular server, or if the researcher wishes to carry out a further test, an alternative test page (e.g. an HTML page with a name such as 'testing.html') can also be created and saved in this directory. The URL can then be typed into a web browser to view the page. This is typically 'http://localhost/'when the server is running on a local machine (e.g. 'http://localhost/testing.html'). If the installation has been successful, the test page will be displayed.
3. Download/purchase the server-side processing and database technologies to a suitable directory (e.g. if installing PHP, this should be downloaded to a file called php on the root of the hard drive).
4. Configure the server software, the server-side processing technology and the database software to allow them to work together. This can be quite a complex process requiring settings and/or configuration files to be altered, and it is important to refer to up-to-date guidance (see below).
5. Create a test database and a test page including a connection to this database. Save this in the root directory used by the server and access it through the browser to check that the page is displayed successfully, indicating that the software is interacting correctly (see point 2).

When carrying out this process, it is important to refer to detailed and up-to-date guidance specific to the particular technologies used. Most training books on particular software will include a step-by-step guide to installation and configuration on different platforms (see the 'Resources' section below). When choosing a book, it is important to check that this information is provided for the software versions and platform you wish to use. Guides are also available on the internet.

Using software tools

A number of tools are available to assist in the development web pages with server-side processing capabilities. The use of WYSIWYG web editors can simplify and automate many of the common tasks involved in producing a questionnaire processed server-side, such as validation routines or connecting to databases, and other tools are available to help with the creation of scripts or the administration of databases.

Macromedia Dreamweaver is a commonly-used WYSIWYG editor which offers support to users who are developing server-processed webpages. Through Dreamweaver, it is possible to set up an environment for developing pages using all of the most common server-side technologies including those mentioned above. Once this is done, tools are available within the package to allow functionalities to be automatically added such as database connections, validation or password access. If the user has a knowledge of the chosen technology and wishes to create different functionalities, tools such as tag choosers can also provide assistance with coding in the chosen language.

Microsoft FrontPage is another WYSIWYG editor which allows the development of features such as validation of form data client and server-side, sending form results to an MS Access database or connecting to an alternative external database. This can be done with little or no knowledge of server-side processing using dialogue boxes within the editor. However, taking advantage of this requires that the server the questionnaire will be hosted on allows the use of FrontPage extensions, a proprietary Microsoft technology. If you have a knowledge of the editor and a server which allows this, however, it can dramatically simplify the process and reduce the need to spend time learning about new technologies or developing programming skills.

Where ASP.NET is the chosen technology for implementing the questionnaire, development tools such as the Microsoft Visual Web Developer are available to provide a drag-and-drop interface for page creation and to simplify the creation of code and integration with databases. The free WYSIWYG Web Matrix software is also available from Microsoft for the development of these pages.

Finally, a number of tools are available to make the production of PHP code and the creation and administration of MySQL databases easier and more intuitive. Like PHP and MySQL, these tools tend to be available open source and can be found by searching open-source repositories (See the 'Resources' section for example of these repositories).

Adding the server-side processing functionalities

Once the software and technologies used have been established, and the development environment has been set up accordingly, the pages and scripts can be developed to add server-side processing facilities to the questionnaire. In some cases, if a questionnaire has already been developed, it may be necessary to adapt the HTML to suit the server technology used. Thus, for example, if ASP.NET is used, the HTML form elements may need to be replaced with the ready-made web controls available with this technology.

Common server-side processing tasks are as follows:

• Validation, which should be added as a back-up to client-side validation. Facilities also need to be added to send a thank-you message on submission where no problems are found, or for the questionnaire to be redisplayed when errors are found (this should be done so that error messages highlight the problem, while the answers a participant has already entered are preserved);
• Emailing results, which may be the preferred method of processing the results as it is straightforward and easy to implement. The emails can also be encrypted to increase the security of sensitive data. Where a database is used, the researcher may also wish for the results to be emailed at the same time as they are added to the database.
• Automatically adding submitted data to a database, so that responses are added to the database on submission of the form;
• Adding a system of password access, so that only invited participants with access to a password can access the questionnaire and so that multiple submission using the same password is prevented;
• Working with multi-page forms, to pass the information gathered from page to page, or to submit each page when it is completed and then prevent participants going back and resubmitting these pages.

A wide range of books are available on the use of server-side processing technologies, along with websites offering tutorials and scripts. A number of suggestions for each of the main technologies is provided in the 'Resources' section below. This includes links to useful sources of information, tutorials and examples on how the common questionnaire processing tasks outlined above can be developed using these technologies.

Resources

General

Books

A good source of information is through the websites of key publishers in the field of web development. These include the following publishers:

O'Reilly
http://www.oreilly.com/

Peachpit Press
http://www.peachpit.com/index.asp

SAMS
http://www.samspublishing.com/index.asp

These sites offer facilities to search for titles related to particular technologies and also offer sample chapters and articles. They also offer access to Safari Bookshelf, which is one of the most convenient access points for books on these technologies online. It offers searchable access to the titles of these and other key publishers in the field for viewing onscreen or for downloading.

Other publishers which are not included in Safari Bookshop offer similar searchable websites and online access to their catalogues, e.g:

WROX
http://www.wrox.com/WileyCDA/

Apress
http://www.apress.com/

Websites

W3Schools
http://www.w3schools.com/
Provides information and tutorials on a range of server-side technologies including ASP, PHP, SQL, and ASP.NET.

Webmonkey
http://www.webmonkey.com/
General web-design resource. The programming section of the 'How-to library' includes tutorials on ASP, PHP, ColdFusion, and Perl/CGI.

PHP/MySQL

Books

Coggeshall, J. (2005) PHP Unleashed. Indianapolis. SAMS.

Kent, A., and Powers, D. (2004) PHP Web development with Macromedia Dreamweaver MX 2004. Berkeley, CA. Apress.

Naramore, E., Gerner, J., Le Scouarnec, Y., Stolz, J. and Glass, M. K. (2005) Beginning PHP5, Apache, and MySQL Web Development. Indianapolis. WROX.

Sklar, D. (2004) Learning PHP. Sebastapol, CA. O'Reilly.

Sklar, D. and Trachtenberg, A. (2003) PHP Cookbook. Sebastapol, CA. O'Reilly.

Ullman, L. (2005) PHP and MySQL for Dynamic Web Sites. Berkeley, CA. Peachpit Press.

Welling, L. and Thomson, L. (2004) PHP and MySQL Web Development. Indianapolis. SAMS.

Zandstra , M. (2005) Teach Yourself PHP in 24 Hours, 2nd Edition. Indianapolis. SAMS.

Websites

Codewalkers
http://codewalkers.com/
Offers a wide range of reources on PHP and MySQL including tutorials

PHP
http://uk.php.net/manual/en/introduction.php
An introduction to PHP from the official website which includes a very useful introductory tutorial.

MySQL Tutorials
http://www.php-mysql-tutorial.com/
A series of tutorials on how to use PHP and MySQL to create and administer databases.

PHP/MySQL Tutorial
http://www.webmonkey.com// programming/php/ tutorials/tutorial4.html
A relatively straightforward introduction to PHP and MySQL, including data validation.

ASP.NET / ASP

The resources below refer to ASP.NET which has been designed to supercede ASP. However, at the time of writing ASP remains a commonly-used server-side technology and a wide range of resources are available offering information and tutorials in its use.

Books

Duthie, G. A. and MacDonald, M. (2003) ASP.NET in a Nutshell. Sebastapol, CA. O'Reilly.

Hart, C., Kauffman, J., Sussman, D. and Ullman, C. (2005) Beginning ASP.NET 2.0. Indianapolis. WROX.

Kittel, M. A. and LeBlond, G. T. (2004) ASP.NET Cookbook. Sebastapol, CA. O'Reilly.

Martinez, J. and Parnell, R. (2003) ASP.NET Development with Dreamweaver MX. Berkeley, CA. Peachpit Press.

Mitchell, S. (2003) Teach yourself ASP.NET. Indianapolis. SAMS.

Walther, S. (2003) ASP.NET. Unleashed. Indianapolis. SAMS.

Websites

ASP.NET Quickstart Tutorial
http://www.asp.net/ QuickStart/aspnet/ Default.aspx
Detailed tutorials on using ASP.NET including information on how ASP.NET controls are used with code examples.

4 Guys from Rolla
http://www.4guysfromrolla.com/
Searchable resource with articles and tutorials on specific aspects of ASP.NET.

CGI/PERL

Books

Colburn, R. (2003) Teach yourself CGI. Indianapolis. SAMS.

Guelich, S., Gundavaram, S. and Birznieks, G. (2000) CGI Programming with Perl. Sebastapol, CA. O'Reilly.

Websites

CGI Programming 101
http://www.cgi101.com/
Tutorials aimed at beginners with information on how to set up a development environment using CGI/PERL and how to process forms and write data to files.

CGI Made Really Easy - or, Writing CGI scripts to process Web forms
http://www.jmarshall.com/easy/cgi/
Basic introduction to collecting and formatting information from forms.

Elated
http://www.elated.com/tutorials/ programming/perl_cgi/
Tutorials covering a basic introduction to CGI programming with PERL along with issues such as validation and emailing.

ColdFusion

Books

Brooks-Bilson, R. (2003) Programming ColdFusion MX. Sebastapol, CA. O'Reilly.

Camden, R., Chalnick, L., Buraglia, A. C. and Forta, B. (2005) Macromedia ColdFusion MX 7 Web Application Construction Kit. Berkeley, CA. Macromedia Press.

DeHaan, J. (2004) ColdFusion Web Development with Macromedia Dreamweaver MX 2004. Berkeley, CA. Apress.

Mohnike, C. (2003) Teach Yourself Macromedia ColdFusion in 21 Days. Indianapolis. SAMS.

Websites

Macromedia's Support Centre for ColdFusion - Tutorials
http://www.macromedia.com/ support/coldfusion/ tutorial_index.html
A wide range of tutorials. Part of the ColdFusion Support Center which includes resources, technical notes and a forum.

EasyCFM Tutorials
http://www.easycfm.com/tutorials/index.cfm?dirView=True
A comprehensive range of ColdFusion tutorials.

JSP

Books

Bergsten, H. (2003) JavaServer Pages, Third Edition. Sebastapol, CA. O'Reilly.

Brunner, R. (2003) JSP: A Practical Guide for Programmers. San Fransisco, CA. Morgan Kaufmann Publishers.

Holzner, S. (2002) Teach Yourself JavaServer Pages in 21 Days. Indianapolis. SAMS.

Perry, B. W. (2004) Java Servlet & JSP Cookbook. Sebastapol, CA. O'Reilly.

Websites

Caucho JSP Tutorials
http://www.caucho.com/resin-3.0/ jsp/tutorial/index.xtp
Covers topics including form processing and emailing form contents.

JSP Tutorial
http://www.jsptut.com/
Series of tutorials covering the basics of JSP and dealing with forms processing, databases and emailing. States that users should have a knowledge of HTML and Java.

---

Frequently-asked questions

I don't know anything about computers. Will I be able to set up an online questionnaire?

The simple answer is yes. There are a number of ways that you can set up a questionnaire. You do not need to be an expert in computers, but you may need to be prepared to spend some time learning some new skills.

If you do not want to spend a great deal of time doing this, producing the questionnaire yourself is not likely to the best option. If you are working in an institution, it is a good idea to check what support is available to you. It may be that there are systems in place which you can use you get a questionnaire online.

Alternatively you could use one of the many online questionnaire software and hosting services that are available. These aim to make it possible to get a questionnaire online and gather results with little or no technical skills. They generally use a forms-based interface to take you through the whole process of developing and implementing the questionnaire. There are a wide range of options available for different budgets and with different features, and you may need to spend some time working out which of the services to choose. The 'Choosing software' section includes an activity designed to help you to work out what features you will need for your questionnaire. It will allow you to develop a checklist of features that you can use when comparing products. The 'Using software' section also provides an outline of the typical procedure for creating and administering a questionnaire using these products.

The introduction to this 'Technical guide' module provides a detailed overview of the different methods you can use to implement a questionnaire and the technical skills and knowledge that will be required depending on the method you choose.

How long will it take me to learn to set up an online questionnaire?

From a technical perspective, this very much depends on what your experience of web design is at the outset, what support is available, and what method you choose to get the questionnaire implemented.

If you are developing a questionnaire yourself and you have little experience of web design, you will need to spend some time learning about technologies such as HTML and CSS in order to set up a web form and related pages such as an informed consent page. You can also use WYSIWYG (What You See Is What You Get) software such as Macromedia Dreamweaver or Microsoft FrontPage to develop the questionnaire, although an understanding of HTML will help you with this. You should set aside around 10-20 hours to learn the skills to develop the questionnaire and ensure it is designed effectively. If you plan to add extra features to your questionnaire such as validation or the gathering of information about participants' computers, you should expect to spend at least this time again to learn how this is done. Finally, if you do not have support to help you to upload the pages to a server and add server-side processes to validate and deal with the data collected, this is likely to take another 15-20 hours.

Of course any institutional support that may be available (such as an automated service to email results to the researcher) will reduce this time, but in this case you are likely to need to spend a couple of hours working through the details of the system to ensure that the questionnaire you create is suitable and meets any conditions that may be imposed.

If you use on 'off-the-shelf' software and hosting service you should expect to spend an hour or so finding the right service for you needs and budget and then to spend some time working out how the software is used to develop the questionnaire and how to use the different options available. You should have a fully working questionnaire in a few hours.

What equipment will I need?

The minimum equipment you will need to design the web pages for the questionnaire is a simple text editor, such as notepad for windows, and a browser such as MS Explorer in which you can test your pages. WYSIWYG (What You See Is What You Get) software such as Macromedia Dreamweaver or Microsoft FrontPage can also be used to aid the design of the questionnaire.

You will also need access to a server on which you can upload your questionnaire to make it available online. Depending on how you choose to process the data, you may also need access to a database on the server (Alternatively, you may choose to email the results). In most cases, a simple text editor is also the only thing required for the creation of server-side processes to deal with the questionnaire data. Depending on the server and the server-side technologies available to you, however, you may also choose to download software which will help you to do this. See the 'Server-side processing' section for more information about the different technologies and software that can be used.

Will I be able to get help from my University/organisation?

If you are working within an institution such as a university, a government department, an NHS trust, or a charitable organisation, technical support may be available which may even extend to the bespoke conversion of a paper-based questionnaire to a web version. If this is not available, there may also be standard procedures in place for implementing web forms once they have been created by the researcher. This may, for example, involve a mailing facility whereby the data is automatically formatted and delivered by email when the form is submitted. It may also involve a facility allowing the data to be downloaded in an appropriate format for importing into a statistical analysis, database or spreadsheet package. The institution may also have purchased a site licence for an off-the shelf survey creation and administration package which may be suitable for the purposes of the research project, and in educational institutions in particular, site licences may also have been purchased for assessment software which may provide the facilities required for the implementation of a basic questionnaire.

The first step in finding out about these systems is usually to check the institution intranet or to contact computer services.

Are there any limits to the number of question types I can have?

In HTML pages, there are five basic forms of form controls for inputting data as follows:

Text box

Check boxes

Yes
No
Maybe

Radio buttons

Yes
No
Maybe

Text area

Insert text here

Select box

Choose an option ------- Option 1 Option 2 Option 3

Of course, these can be organised in different ways to create different question types. For example, tables can be used to group radio buttons into grids for Likert scales or semantic differential questions, as in the following example:

Complete the following statement by choosing the number that most closely matches your opinion for each row:

The internet is:

	1	2	3	4	5
boring						interesting
difficult						easy
risky						safe
useless						useful

See the 'Web forms' section of this 'Technical Guide' module for further details.

What is the best question type?

There is no simple answer to this question as this is likely to depend on the context of the research. An activity designed to explore the length of time needed to complete different types of questions is available in the 'Design issues 2: Content' section of the questionnaires module.

Does it matter what I put in as the default answer?

For check boxes, radio buttons and select boxes, it is possible to specify which of the options is specified by default as shown below:

Check boxes

Yes
No
Maybe

Radio buttons

Yes
No
Maybe

Select box

Choose an option ------- Option 1 Option 2 Option 3

In the case of radio buttons and check boxes it is a good idea not to set a default option as it will be impossible to establish whether or not the option was actively selected by the participant or whether the question was unanswered. For select boxes, if the default answer is 'Choose an option' as in the example above, this will not be a problem this answer will clearly indicate non-response.

Is it better to have a single-paged questionnaire or one that spans multiple pages?

One-page questionnaires are generally easier to implement as they consist of a single web form which can easily be processed through the submission of this one form. Where the questionnaire is relatively short and straightforward in terms of structure, this is likely to be the best option.

However, with longer or more complex forms, attempting the present the entire questionnaire in one page may lead to problems such as the following:

1. Presenting all questions at the same time may give an impression of greater length which may discourage participants from proceeding.
2. Opportunities to validate individual questions or smaller groups of questions as the participant progresses through the questionnaire may be reduced (see the 'Form validation' section). In turn, this may lead to frustration if all questions are validated at once at the end of the questionnaire.
3. Although skip patterns can be introduced through linking to anchors further down a page or through instructing participants to skip a question by scrolling to the next, this may not be the most effective or intuitive method of delivering the questions.
4. If a participant drops out mid-questionnaire, all data will be lost and there will be no opportunity for collection of partially-completed questionnaires or for identification of questions that may be precipitating drop out.

For longer questionnaires, the use of multiple pages can add to the effectiveness of question delivery, providing clearer routes through the questions and offering the opportunity for a more sophisticated presentation of skip patterns. For example, links to different sections can be added which participants can be prompted to select according to the answer to key questions. However, because all the questions are not made visible, submitted and processed at the same time, a number of extra aspects must be considered

1.  An indication of progress through the questionnaire must be given, either through the use of a progress bar (see 'Key design issues' section of this guide ) or through structuring the questionnaire into different sections and indicating the nature of this structure to respondents (see 'design issues 1' in the questionnaires modules). If this is not done effectively, uncertainty over progress or a realisation that the indicators of progress are inaccurate, may lead to frustration and drop out.
2. A decision must be made on whether data should be submitted for processing at the end of each page, or at the end of the questionnaire. If it is done at the end of each page, this will allow partially-completed questionnaires to be collected and any problem questions to be identified, but measures must be taken to identify or prevent multiple submission of any sections. If it is done at the end of the questionnaire, it will be necessary to pass information supplied up to a given point in the questionnaire from page to page.
3. As participants progress through the questionnaire, they may wish to return to a previous page to review and change answers. Unless measures are taken to ensure that the data they have already entered is still available when they do this, it is important to inform them that answers already entered may be no longer available if they go back. It may also be important to add instructions not to go back through a questionnaire if each page is to be submitted individually, or to add validation routines preventing submission a second time.

There is a good chance that my survey group will be using old computers. Is there anything I should consider?

There are a number of measures that can be taken to ensure that a questionnaire is suitable for older browsers and equipment. These include maintaining a straightforward design, avoiding the use of third-party plug-ins such as Macromedia Flash, ensuring it is designed for accessibility (see question below) and validating the HTML and or CSS used to create it. However differences in aspects such as the size and appearance of form elements and tables may remain when viewed on different systems.

It is thus good practice to test pages on as many different browsers and systems as possible, and as an absolute minimum to install the latest versions of the three most popular browsers on your desktop and use these to test. Friends and acquaintances with different systems (e.g. AppleMacs or PCs) and older versions of browsers can also be called on to test for any problems. Where design problems are found in particular systems and browsers, an attempt can then be made to change the design to best accommodate them.

It is also possible to collect information about the user's computer and browser alongside the data from the questionnaire (see the 'Gathering information about participants' section of this technical guide). This can allow an overview of the technologies available to respondents to be gained. If it becomes clear, for example, that older or less common browsers are being used to access the questionnaire, it can be tested on these browsers and redesigned if necessary.

It is also a good idea to test the questionnaire on different screen size settings to ensure that questions are visible in their entirety and do not require scrolling, to use web-safe colours which will display consistently on different monitors and to use common fonts and 'font-families' to ensure that the fonts used will display consistently on different systems.

See 'consistency' part of the 'Key design issues' section of this guide for further information.

How can I make sure my questionnaire can be used by participants with disabilities?

It is important to design pages to be as accessible as possible and there are a number of simple steps that can be taken to increase the accessibility of an online questionnaire and its associated web pages. These can ensure that the contents are accessible to users with a range of user-agents including text-only and screen reading browsers and other assistive technologies.

Designing the site to be compliant with standards set out by the World Wide Web Consortium (W3C) is an important step in ensuring accessibility. The 'Resources' section of this guide includes a link to W3C's validation tools which allow web pages to be checked for standards compliance. By uploading a page or entering the URL, the tools will run automated tests and report on any pieces of invalid markup in the pages.

It is also good practice to separate content from presentation in web pages by using Cascading Style Sheets (CSS) to add design features (See the 'Introduction to CSS' section of this guide). Although it should be remembered that this may lead to increased inconsistencies in display on older browsers, this allows participants to control how the site should be presented. They can override style information to allow presentational features such as text size, font, colour and layout to be changed according to need.

Beyond this, the W3C Web Accessibility Initiative guidelines (WAI) includes a wide range of measures which should be taken to ensure that a website is accessible ( http://www.w3.org/ WAI/intro/wcag.php). The guidelines divide these measures into Priority 1, 2 or 3 according to how essential they are to accessibility. Some key measures that should be taken for accessibility are shown in the 'Key design issues' section of this guide.

Can I create something that people can fill in on TVs, mobile phones?

A well-designed questionnaire should be usable on a wide range of web-enabled devices including TVs, mobile phones and Personal Digital Assistants (PDAs). By designing for accessibility and separating content from presentation (see question above), you will be able to make sure that the pages are as accessible as possible to devices such as these as well as to text-only and screen-reading browsers and other assistive technologies.



---

Glossary

A

Accessibility

The accessibility of a web page refers to the extent to which users can access the content regardless of the technology they use and any disability they may have. An accessible web page is one that is designed to ensure that this is possible through, for example, providing textual descriptions of graphics used to allow their significance to be described in text-only browsers or via screen-reading software.

Active server pages (ASP)

A framework developed by Microsoft for providing server-side processing capabilities and database functionalities. Now largely superceded by a more recent version, ASP.NET.

Apache

Freely-available open-source server software which is one of the most widely-used examples of server software on the internet.

B

Body

The body section of an HTML document contains the main display content. It is here that text, images, links, form elements, tables and lists are placed.

Browser

Software which requests resources (mainly web pages) from a server computer and displays them. An example of client software held on a client machine.

Button

A standard HTML button. Can be linked to JavaScript and perform an action when clicked.

e.g.:

HTML: <input type="button" value = "Standard button" />

C

Check box

Square tags that display a mark when selected and can allow multiple responses.

e.g. A B

HTML: <input type="Check box" name="1" value="A"> A<input type="Check box" name="2" value="B"> B

Client

The software that allows a computer to request web pages from a server computer and displays these pages. Also used to refer to the computer on which this software is held.

Client-side scripting

Client-side scripting through scripting languages such as JavaScript allows dynamic or interactive features to be added to web pages. Code is added to a web page which is executed in the browser on the client computer. It can be used to, for example, carry out different actions according to user actions or input.

CSS

CSS (Cascading Style Sheets - also referred to simply as 'Style Sheets') provide a means of adding design elements to basic HTML pages. For example, using CSS, it is possible to control the colour, positioning and spacing of objects such as text, links, images and tables.

D

DOCTYPE

A DOCTYPE (document type) definition, known as a DTD should begin an HTML document. This declares what type of page it is and what language is being used, and it allows the page to be validated as conforming to Worldwide Web Consortium (W3C) standards.

E

Event handler

An event handler is a piece of code in programming or scripting languages such as JavaScript that triggers an action when a particular event occurs. Examples of event handles are those that trigger actions when the mouse is clicked, double-clicked or moved, a key is pressed, or a page is loaded or unloaded.

F

Form elements/controls

A set of form items that the user can enter data into to be sent to the researcher. Some commonly-used elements are as follows:

Button, Check box, Select box / drop down list box, Password box, Radio buttons, Text area, Text box.

Form tags

Form tags mark off the beginning and end of a form. Controls within the form tags are effectively grouped together so that when a submit button is clicked the data in all the controls within the form is sent for processing. It is possible to include multiple forms on a page, but only one form can be submitted at any one time.

Function

A function is a block of code in programming or scripting languages such as JavaScript that carries out a particular action. In effect the code is not carried out until the function is 'called' from within the document when a particular event occurs (such as the user clicking a submit button).

G

Graphic Interchange Format (GIF)

One of the two most common types of images in use on the internet (along with JPEGs), GIFs are usually more appropriate for line drawings or graphics with a limited number of colours.

H

Head

The head section of an HTML document contains information which is basically not intended for display. It is loaded into the browser before the body section and typically includes the DOCTYPE, the page title, meta commands and any CSS and client-side script information.

Hidden form fields

Hidden form fields are form controls that are not displayed on the page (though they are visible in the HTML source for the page). They are useful for storing and passing information from page to page which is not necessary or desirable to display. They can be thought of as text boxes with content that can be set by the developer via HTML or JavaScript rather than being completed by the user.

HTML

HTML (Hyper Text Markup Language) is the technical language that lies behind most web pages. It consists of tags which surround blocks of text to indicate how they should appear in a browser, and which are used to insert elements such as images or tables.

HTML tags

In an HTML document, tags are used to tell the browser how to present the layout and style of text and other elements. Tags can consist of elements, attributes and values. The element indicates what should be displayed in the browser, and the attributes and values indicate how this should be displayed.

e.g. In the following tag, <p align="center">Hello!</p>, <p></p> is the element which tells the browser to display a new paragraph, align is the attribute and center is the value which indicates that it should be displayed with a centered alignment.

I

Internet Protocol (IP) Address

A string of four numbers separated by full-stops which provide a unique identifier for all computers permanently connected to the internet.

J

Joint Photographic Experts Group (JPEG)

One of the two most common types of images in use on the internet (along with GIFs), JPEGs are usually suitable for images with a large number of colours such as photographs. The file extension is '.jpg'.

JavaScript

The most popular client-side scripting language in use on the internet. JavaScript code is added to an HTML document and is executed in the browser on the client computer. It can be used to, for example, carry out different actions according to user actions or input.

K

L

M

MySQL

A freely-available open source database server, which can be downloaded and installed to allow database functionality to be added to a web page. It is frequently used in combination with PHP to allow databases to be added to and accessed over the internet.

N

O

Open source

In general terms, open source software allows for users to access the source code for free and allows it to be modified and redistributed. A full definition is available at: http://www.opensource.org/

Optimisation

The process of reducing as much as possible the file size and download time of resources such as web-graphics while maintaining a suitable level of quality.

P

Password box

Text input box that allows a single line of text to be entered. It is possible to limit the size and number of characters that can be entered. As the user types, the characters are hidden from display.

e.g.

HTML: <input type="password" size="15" maxlength="10" />

Path

A reference to a file and it's location in a series of folders held on a computer.

e.g. C:\Documents and Settings\My Documents\main_site\section1\page1.htm refers to an HTML page called 'page 1' held in the c drive of a local computer in a folder called section 1, held in a series of folders in 'Documents and Settings'.

PHP

A freely-available server-side scripting language which can be downloaded and installed to allow the addition of server-side processing capabilities to web pages.

Q

R

Radio buttons

Circular tags that fill in when one option is selected.

e.g. Yes No

HTML: <input type="radio" name="1" value="Yes" / > Yes <input type="radio" name="1" value="No" /> No

Reset button

A reset button clears any form data that has been input, returning them to the original values they had when the page was loaded.

e.g.:

HTML: <input type="reset" value="Reset" />

S

Select box / Drop-down list box

An element which allows users to select options by clicking. Only one option is displayed until the user clicks on the arrow.

e.g. Option 1 Option 2 Option 3 Option 4

HTML: <select name="select"> <option>Option 1</option> <option>Option 2</option> <option>Option 3</option> <option>Option 4</option> </select>

Server

A computer which delivers web pages to a client computer when a URL is typed into the address bar of a browser on that computer. Also used to refer to the software held on the server computer which allows this process to take place.

Server-side processing

Server-side processing allows dynamic or interactive features to be added to web pages. This is done by the server computer before the page is sent to the client computer. Server-side processing can be accomplished using a range of technologies such as PHP, ASP(X), Perl/CGI and ColdFusion. It can be used to, for example, validate and process information entered by users into web forms, store or retrieve information in databases, and automatically send emails.

Skip mechanisms

Functionalities added to an online questionnaire which automatically provide participants with a route through the questionnaire, avoiding questions that are not relevant. When a question is answered, the next question will be delivered according to the response so that different questions are provided depending on particular answers.

Submit button

A submit button sends the form data to the server when clicked. The action of doing this depends on the form action specified. Most commonly it will be to email the results or add them to a database.

e.g.:

HTML: <input type="submit" value="Submit" />

T

Text area

Allows the user to input a large amount of text. By default, the text will wrap onto a new line when the end of a line is reached, and a scroll-bar will appear on the right-hand side when the number of lines displayed is exceeded.

e.g.

HTML: <textarea cols="60" rows="5"></textarea>

Text box

Allows a single line of text to be input of a size and number of characters specified.

e.g.

HTML: <input type="text" size="25" maxlength="20" />

Text editor

A simple application which allows users to enter, edit and save text, typically with basic formatting options.

U

URL

A URL (Uniform Resource Locator) is the address for a resource available online (usually a web page). URLs consist of a reference to the server computer which holds the resource along with a path to the file containing this resource on the computer. By typing the URL into a browser, a request is sent from a user's computer (client computer) to the server computer to deliver this resource.

V

Validation

The functionality which allows forms to be automatically checked before or at submission to ensure that any required questions have been answered and/or that data has been entered in a suitable format. This can be done using client-side and/or server-side scripting. Typically, validation routines will prevent submission where problems are found with the form and a message will be delivered to the user prompting them to check their answers and resubmit.

W

'Web-safe' colour palette

A set of 216 colours recommended for use on the internet as they are not subject to variation on different types of monitors and systems.

WYSIWYG

WYSIWYG (What You See Is What You Get) software packages such as Macromedia Dreamweaver or Microsoft FrontPage are tools that allow web pages to be created and edited using an interface that displays the page as it will appear in a browser.

X

Y

Z

---

Resources

Listings of software and services for online questionnaire production

Evans, J. R. and Mathur, A. (2005) The value of online surveys, Internet Research, 15, 2, 195- 219.

An examination of the involvement in online surveys of the largest US-based and global market research firms. Provides an extensive list of the services offered as of late 2004.

The WebSM searchable database
http://www.websm.org/index.php ?fl=0&p1=1123 &p2=82&p3=1086 &id=1086
Database of online questionnaire software and services which has entries categorised by type, code, cost, language and country.

The Association for Survey Computing searchable software register
http://www.asc.org.uk/ Register/index.htm
Searchable register which includes information about the software it contains such as listings of the features offered and suppliers.

Web-based survey software
http://www.web-based-surveys.com/
Directory of software which can be browsed or accessed using the 'software finder' which allows users to specify the features they require.

Services offering software plus hosting

The following examples are chosen as being representative of some of the different types of services available as of December 2005. In each case, a range of comparable options may be available.

Bristol Online Surveys
http://www.survey.bris.ac.uk/
Targeted at institutions requiring the option to have a number of different surveys and survey administrators. Highly customisable to the style needs of institutions including an option to run surveys on their server with an address that appears to be that of the institution.

Educara Survey
http://www.educara.com/ educara.cgi/ survey.html
An open source tool which offers hosting for an annual fee. The price rises according to the type of use, with students paying the least, and commercial organisations the most.

SurveyConsole/QuestionPro
http://www.surveyconsole.com/ / http://www.questionpro.com/
Both are divisions of the surveyanalytics company and they use the same software and interface, but with different pricing. May offer sponsored use for academic or not-for-profit projects if certain conditions are met. Also offer a range of free resources such as articles and question templates.

Surveymonkey
http://www.surveymonkey.com/
Compares well with many of the other available services in terms of features, but is one of the cheapest commercial options.

Surveywriter
http://www.surveywriter.com/site/
Relatively expensive, but unusual in that charges are not made per period of use, but per completed survey and email invitation with a minimum of 200.

Surveyz!
http://www.surveyz.com/
A range of relatively sophisticated features. targeted at individual researchers or at institutions. Offers academic pricing and free use for academic projects if certain conditions are met. Also has a range of resources such as articles on online questionnaires and copyable templates of questionnaires and questions.

Websurveyor
http://www.websurveyor.com/
Relatively expensive, but with a wide range of features. Offers both hosting and software only solutions.

Zoomerang
http://info.zoomerang.com/
Offers pricing for not-for-profit and educational institutions. Also offers a range of research services such as questionnaire administration, panel services and translation.

Commercial questionnaire software

The following are some examples of commercial software for online questionnaires. A range of other options are available.

Questionmark Perception
http://www.questionmark.com/uk/home.htm
An educational assessment tool which offers many of the key features needed to create basic online questionnaires and has some of the more advanced features such as randomisation of questions and conditional branching. Potentially useful option if the software is available through the researcher's institution.

SelectSurveyASP
http://www.classapps.com
Relatively inexpensive. Offers 'classic' and 'advanced' versions with different levels of features at different prices. Has a working online demo and a useful example survey which includes comments on the features illustrated by particular questions. Offers a free installation service and free technical support.

Snap Surveys
http://www.snapsurveys.com/
Extensive options for mixed-mode surveys, offering a 'core product', Snap Professional, with add-ons for questionnaires via internet and PDAs, and to allow scanning and multiple data entry. Expensive example of 'high-end' options.

SphinxSurvey
http://www.sphinxdevelopment.co.uk/ Products_sphinx.htm
Extensive analysis tools including a version offering lexical analysis. Educational and public-sector pricing offered.

StatPac
http://www.statpac.com/
The online questionnaire software does not include analysis tools, but it can be purchased alongside the statistics tools offered. Has basic statistical tools or an advanced version allowing multivariate statistical techniques. Technical support and updates are available free for three months, but are chargeable via annual support/maintenance agreements thereafter. A fully-functional version of the software can be downloaded and used for free, limited to 35 respondents for each survey. Download includes tutorials and extensive user guide.

Open-source software

General information

SourceForge.net
http://sourceforge.net
Searchable repository of open source projects.

Freshmeat.net
http://freshmeat.net/
Listing of new software releases.

OSS Watch: Top Tips For Selecting Open Source Software
http://www.oss-watch.ac.uk/ resources/tips.xml
Page from the website of OSS, a JISC-funded open source advisory service. Offers guidance on selecting open source software.

Examples of questionnaire software

The following are some of the main examples of open source software for online questionnaires (generally the more established and/or sophisticated options). A range of other options may be available.

Educara Survey
http://www.educara.com/ educara.cgi/survey.html
In addition to the software, offers hosting for an annual fee. The price rises according to the type of use, with students paying the least, and commercial organisations the most.

LE Survey
http://le-survey.sourceforge.net/
Designed as a tool for running questionnaires as part of longitudinal studies. Allows respondents' responses to be matched to responses to previous questionnaires while maintaining confidentiality. In early stages of development at the time of writing.

phpESP
http://phpesp.sourceforge.net/
Well-established software with a working demo available allowing the features and user-interface to be tested.

Lime Survey
http://www.limesurvey.org/
A range of relatively sophisticated features. Well-established with useful documentation. Working demos are available allowing the features and user-interface to be tested. Offers low cost hosted services.

Mod_Survey
http://www.modsurvey.org/
Well-established with sophisticated features such as dynamic content generation depending on previous answers. Requires the user to learn to use XML syntax particular to the software.

VTSurvey
http://vtsurvey.sourceforge.net/
Easy to use and particularly useful for straightforward questionnaires as only the four main types of questions are supported (Multiple choice with radio buttons and Check boxes, and short and long text entry boxes).

HTML

Getting started with HTML
http://www.w3.org/MarkUp/Guide/.
A good basic introduction to HTML from the World Wide Web Consortium. (W3C).

HTML Goodies
http://www.htmlgoodies.com/.
A range of short tutorials designed to help you with specific aspects of web design.

HTML Reference
http://www.w3schools.com/tags/ref_byfunc.asp.
List of HTML tags organised by their function, from W3Schools.

World Wide Web Consortium (W3C) HTML Validator
http://validator.w3.org/.
Enter a link to your web pages or upload a local file to check that your HTML meets web standards and guidelines.

HTML Tidy
http://www.w3.org/People/Raggett/tidy/.
Automatically cleans up HTML to correct any problems caused either by mistakes or automatic production of invalid HTML by web editors.

WC3 Links Checker
http://validator.w3.org/checklink.
Automatically checks for broken links in an HTML document.

CSS

Cascading Style Sheets (CSS)
http://www.w3.org/MarkUp/Guide/Style.html.
An introduction to Cascading Style Sheets from W3C.

CSS Reference
http://www.w3schools.com/css/css_reference.asp.
A reference to the properties and possible values that can be applied to different elements of an HTML page from W3Schools. Also offers further information on the use of different properties.

W3Schools CSS Tutorial
http://www.w3schools.com /css/default.asp
Tutorials which include examples and quizzes.

The Worldwide Web Consortium (W3C)'s CSS page
http://www.w3.org/Style/CSS/
Offers a wealth of information on CSS.

W3C CSS Validator
http://jigsaw.w3.org/ css-validator/.
Makes it possible to check that your CSS meets web standards and guidelines by entering a link to your CSS file, uploading your file from your computer, or pasting your CSS into a text box on the page.

Writing Efficient CSS
http://www.communitymx.com/ content/article.cfm?cid=90F55
A useful article by John Gallant and Holly Bergevin on using CSS 'short hand' properties to reduce the size of CSS files and increase efficiency.

JavaScript

JavaScript Primers
http://www.htmlgoodies.com/primers/jsp/.
30 short JavaScript lessons with learning activities.

JavaScript examples
http://JavaScript.internet.com/.
Over two-thousand examples of JavaScripts organised into sub-sections.

JavaScript use in forms
http://www.irt.org/ script/form.htm.
A range of JavaScript examples with source code specifically related to web-forms.

Accessibility

W3C Web Accessibility Initiative guidelines (WAI)
http://www.w3.org/ WAI/intro/wcag.php
Document which explains how to make Web content accessible to people with disabilities. Includes checkpoints of actions that will improve accessibility and gives each checkpoint a priority rating according to its importance. Also has links to explanations of how the checkpoints can be achieved with HTML and CSS.

Vischeck
http://www.vischeck.com/vischeck/
A service which simulates the appearance of pages to users with different forms of colour blindness to allow pages to be tested for suitability for colour-blind users.

DEMOS Project - Guide to accessible web pages: User control
http://jarmin.com/demos/ access/control.html
A guide to making changes to the display of web pages in different browsers.

TechDis
http://www.techdis.ac.uk/.
A Joint Information Systems Committee (JISC)-funded advisory service on accessibility issues in education. Contains useful resources and 'how to' guides on accessibility.

Macromedia (now Adobe)'s Accessibility Resource Center
http://www.adobe.com/accessibility/.
Offers general guides to accessibility and accessible design as well as specific guidance on how to increase the accessibility of HTML and multi-media produced with Macromedia products such as Dreamweaver and Flash.

Design issues

Usability news: Wichita State University Software Usability Research Lab
http://psychology.wichita.edu/surl/usability_news.html.
Newsletter providing a range of articles with information on research into software and website design and usability.

Usable Information Technology
http://www.useit.com/.
Leading site on usability and user studies by Jacob Neilson.

Web-safe colours
http://www.lynda.com/hex.html.
Offers tables of web-safe colours organised by either hue (colour) or value (lightness). Makes it easier to design appropriate colour schemes.

W3C Browser information
http://www.w3schools.com/browsers/default.asp
Information on the main browsers available at the time of writing is available on the Worldwide Web Consortium (W3C) website along with statistics on the usage levels of each (though it should be noted that the statistics are based on users of the site and should thus be generally considered to be skewed in favour of more technically proficient users).

MOOCK Flash Player Inspector
http://moock.org/web design/flash/detection/moockfpi/
Provides a good explanation of Flash detection (and its limitations) along with free scripts to carry it out.

Form validation

Client-side validation using JavaScript

Form Validation Using Javascript
http://www.4guysfromrolla.com/webtech/091998-1.shtml
An example of form validation using JavaScript with explanations from the 4guysfromrolla.com site.

Javascript form validation – doing it right
http://www.xs4all.nl/~sbpoley/webmatters/formval.html
Interesting discussion of validation using JavaScript aiming to point out some of the main pitfalls.

Server-side validation

Depending on the technology used, the following links may provide a useful source of information, tutorials and examples on how to add server-side validation.

PHP/MySQL

WebMonkey PHP/MySQL Tutorials
http://webmonkey.wired.com/ webmonkey/99/21/ index4a_page2.html? tw=programming
A relatively straightforward introduction to validation using PHP.

Common Form Validations
http://codewalkers.com/ tutorials/47/2.html
A PHP tutorial which covers a range of different validation activities, leading to an example of a complete form validated via PHP.

Books

Coggeshall, J. (2005) PHP Unleashed. Indianapolis. SAMS.
Chapter 4: Working with Forms in PHP.
Chapter 5: Advanced Form Techniques.
http://www.samspublishing.com/ title/067232511X

Sklar, C. (2004) Learning PHP. Sebastapol, CA. O'Reilly.
Chapter 6: Making web forms.
http://www.oreilly.com/ catalog/learnphp5/

Sklar, D. and Trachtenberg, A. (2003) PHP Cookbook. Sebastapol, CA. O'Reilly.
Chapter 9: Forms.
http://www.oreilly.com/ catalog/phpckbk/

Zandstra , M. (2005) Teach Yourself PHP in 24 Hours, 2nd Edition. Indianapolis. SAMS.
Chapter 9: Working with Forms (available as a sample chapter)
http://www.samspublishing.com/ title/0672323117

ASP.NET

Microsoft's ASP.NET framework offers a number of ready-made web controls designed to carry out server-side and, where available, client-side validation of web forms. These include controls that check required fields have been completed, that check that data in particular ranges or patterns has been entered (e.g. in the format of a telephone or credit-card number), and that compare data from one form element for consistency with that from another.

ASP.NET Quickstart tutorials: Validating Form Input Controls
http://beta.asp.net/ QuickStartv20/ aspnet/doc/ validation/ default.aspx
A useful tutorial on how these controls work with code examples.

Form Validation with ASP.NET - It Doesn't Get Any Easier!
http://www.4guysfromrolla.com/ webtech/090200-1.shtml
Another step-by-step guide.

Books

Mitchell, S. (2003) Teach yourself ASP.NET. Indianapolis. SAMS.
Chapter 12. Validating User Input with Validation Controls.
http://www.samspublishing.com/ title/0672325438#

Walther, S. (2003) ASP.NET. Unleashed. Indianapolis. SAMS.
Chapter 2: Building Forms with Web Server Controls.
Chapter 3: Performing Form Validation with Validation Controls.
http://www.samspublishing.com/ title/0672325438#

PERL/CGI

Form Validation with Perl/CGI
http://www.elated.com/ tutorials/ programming/ perl_cgi/ form_validation/
An introductory tutorial for adding validation using PERL/CGI.

Books

Colburn, R. (2003) Teach yourself CGI. Indianapolis. SAMS.
Chapter 7: Validating user input.
http://www.samspublishing.com/ title/0672324040

Guelich, S., Gundavaram, S. and Birznieks, G. (2000) CGI Programming with Perl. Sebastapol, CA. O'Reilly.
Chapter 4: Forms and CGI;
Chapter 8: Security (available as a sample chapter).
http://www.oreilly.com/ catalog/ cgi2/ toc.html

Server-side processing technologies

General

Books

A good source of information is through the websites of key publishers in the field of web development. These include the following publishers:

O'Reilly
http://www.oreilly.com/

Peachpit Press
http://www.peachpit.com/index.asp

SAMS
http://www.samspublishing.com/index.asp

These sites offer facilities to search for titles related to particular technologies and also offer sample chapters and articles. They also offer access to Safari Bookshelf, which is one of the most convenient access points for books on these technologies online. It offers searchable access to the titles of these and other key publishers in the field for viewing onscreen or for downloading.

Other publishers which are not included in Safari Bookshop offer similar searchable websites and online access to their catalogues, e.g:

WROX
http://www.wrox.com/WileyCDA/

Apress
http://www.apress.com/

Websites

W3Schools
http://www.w3schools.com/
Provides information and tutorials on a range of server-side technologies including ASP, PHP, SQL, and ASP.NET.

Webmonkey
http://www.webmonkey.com/
General web-design resource. The programming section of the 'How-to library' includes tutorials on ASP, PHP, ColdFusion, and Perl/CGI.

PHP/MySQL

Books

Coggeshall, J. (2005) PHP Unleashed. Indianapolis. SAMS.

Kent, A., and Powers, D. (2004) PHP Web development with Macromedia Dreamweaver MX 2004. Berkeley, CA. Apress.

Naramore, E., Gerner, J., Le Scouarnec, Y., Stolz, J. and Glass, M. K. (2005) Beginning PHP5, Apache, and MySQL Web Development. Indianapolis. WROX.

Sklar, D. (2004) Learning PHP. Sebastapol, CA. O'Reilly.

Sklar, D. and Trachtenberg, A. (2003) PHP Cookbook. Sebastapol, CA. O'Reilly.

Ullman, L. (2005) PHP and MySQL for Dynamic Web Sites. Berkeley, CA. Peachpit Press.

Welling, L. and Thomson, L. (2004) PHP and MySQL Web Development. Indianapolis. SAMS.

Zandstra , M. (2005) Teach Yourself PHP in 24 Hours, 2nd Edition. Indianapolis. SAMS.

Websites

Codewalkers
http://codewalkers.com/
Offers a wide range of reources on PHP and MySQL including tutorials

PHP
http://uk.php.net/manual/en/introduction.php
An introduction to PHP from the official website which includes a very useful introductory tutorial.

MySQL Tutorials
http://www.php-mysql-tutorial.com/
A series of tutorials on how to use PHP and MySQL to create and administer databases.

PHP/MySQL Tutorial
http://www.webmonkey.com// programming/php/ tutorials/tutorial4.html
A relatively straightforward introduction to PHP and MySQL, including data validation.

ASP.NET / ASP

The resources below refer to ASP.NET which has been designed to supercede ASP. However, at the time of writing ASP remains a commonly-used server-side technology and a wide range of resources are available offering information and tutorials in its use.

Books

Duthie, G. A. and MacDonald, M. (2003) ASP.NET in a Nutshell. Sebastapol, CA. O'Reilly.

Hart, C., Kauffman, J., Sussman, D. and Ullman, C. (2005) Beginning ASP.NET 2.0. Indianapolis. WROX.

Kittel, M. A. and LeBlond, G. T. (2004) ASP.NET Cookbook. Sebastapol, CA. O'Reilly.

Martinez, J. and Parnell, R. (2003) ASP.NET Development with Dreamweaver MX. Berkeley, CA. Peachpit Press.

Mitchell, S. (2003) Teach yourself ASP.NET. Indianapolis. SAMS.

Walther, S. (2003) ASP.NET. Unleashed. Indianapolis. SAMS.

Websites

ASP.NET Quickstart Tutorial
http://www.asp.net/ QuickStart/aspnet/ Default.aspx
Detailed tutorials on using ASP.NET including information on how ASP.NET controls are used with code examples.

4 Guys from Rolla
http://www.4guysfromrolla.com/
Searchable resource with articles and tutorials on specific aspects of ASP.NET.

CGI/PERL

Books

Colburn, R. (2003) Teach yourself CGI. Indianapolis. SAMS.

Guelich, S., Gundavaram, S. and Birznieks, G. (2000) CGI Programming with Perl. Sebastapol, CA. O'Reilly.

Websites

CGI Programming 101
http://www.cgi101.com/
Tutorials aimed at beginners with information on how to set up a development environment using CGI/PERL and how to process forms and write data to files.

CGI Made Really Easy - or, Writing CGI scripts to process Web forms
http://www.jmarshall.com/easy/cgi/
Basic introduction to collecting and formatting information from forms.

Elated
http://www.elated.com/tutorials/ programming/perl_cgi/
Tutorials covering a basic introduction to CGI programming with PERL along with issues such as validation and emailing.

ColdFusion

Books

Brooks-Bilson, R. (2003) Programming ColdFusion MX. Sebastapol, CA. O'Reilly.

Camden, R., Chalnick, L., Buraglia, A. C. and Forta, B. (2005) Macromedia ColdFusion MX 7 Web Application Construction Kit. Berkeley, CA. Macromedia Press.

DeHaan, J. (2004) ColdFusion Web Development with Macromedia Dreamweaver MX 2004. Berkeley, CA. Apress.

Mohnike, C. (2003) Teach Yourself Macromedia ColdFusion in 21 Days. Indianapolis. SAMS.

Websites

Macromedia's Support Centre for ColdFusion - Tutorials
http://www.macromedia.com/ support/coldfusion/ tutorial_index.html
A wide range of tutorials. Part of the ColdFusion Support Center which includes resources, technical notes and a forum.

EasyCFM Tutorials
http://www.easycfm.com/tutorials/index.cfm?dirView=True
A comprehensive range of ColdFusion tutorials.

JSP

Books

Bergsten, H. (2003) JavaServer Pages, Third Edition. Sebastapol, CA. O'Reilly.

Brunner, R. (2003) JSP: A Practical Guide for Programmers. San Fransisco, CA. Morgan Kaufmann Publishers.

Holzner, S. (2002) Teach Yourself JavaServer Pages in 21 Days. Indianapolis. SAMS.

Perry, B. W. (2004) Java Servlet & JSP Cookbook. Sebastapol, CA. O'Reilly.

Websites

Caucho JSP Tutorials
http://www.caucho.com/resin-3.0/ jsp/tutorial/index.xtp
Covers topics including form processing and emailing form contents.

JSP Tutorial
http://www.jsptut.com/
Series of tutorials covering the basics of JSP and dealing with forms processing, databases and emailing. States that users should have a knowledge of HTML and Java.
